325-052 Series
Manufacturer: EDAC Inc.
Beta
⌘K

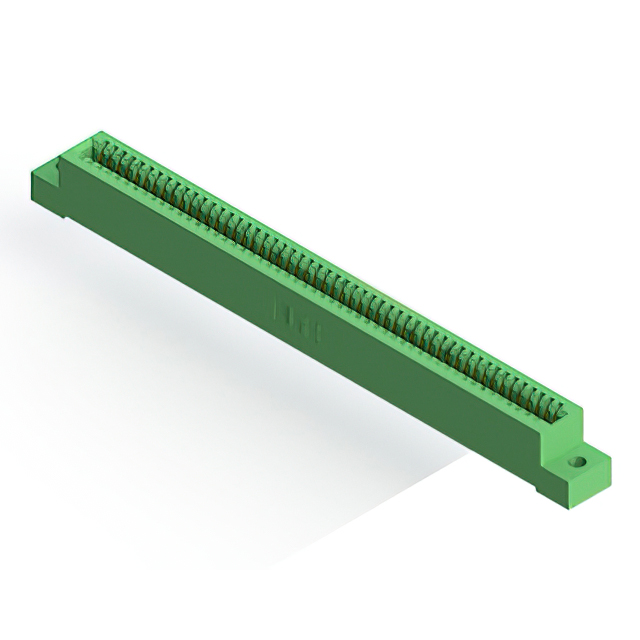

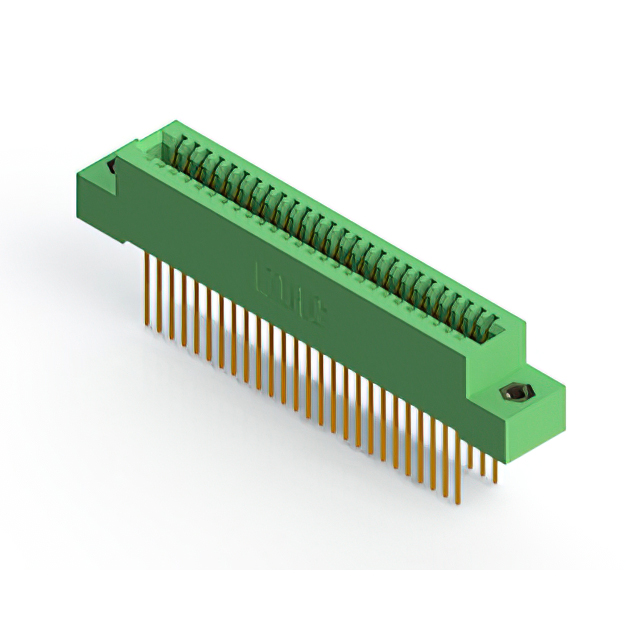

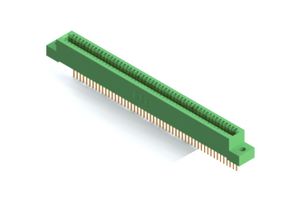

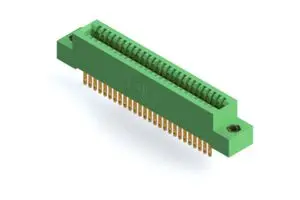

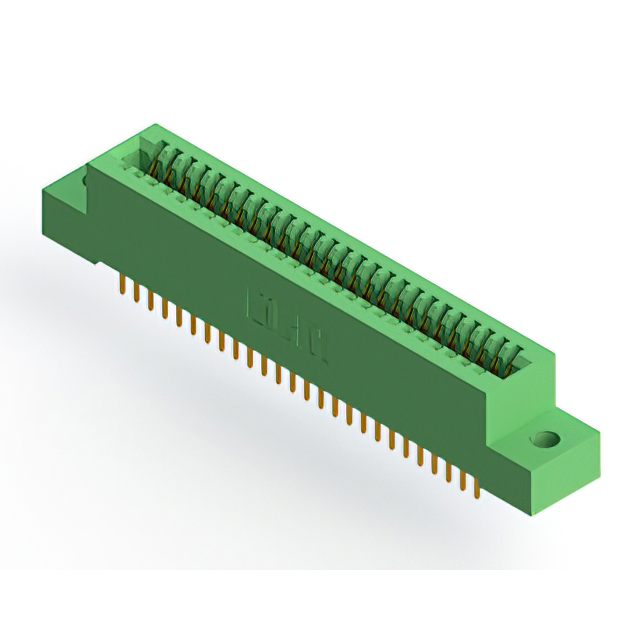

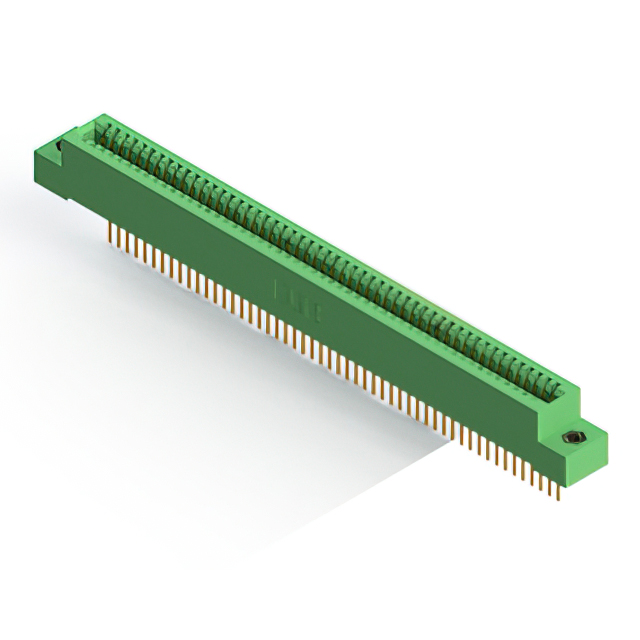

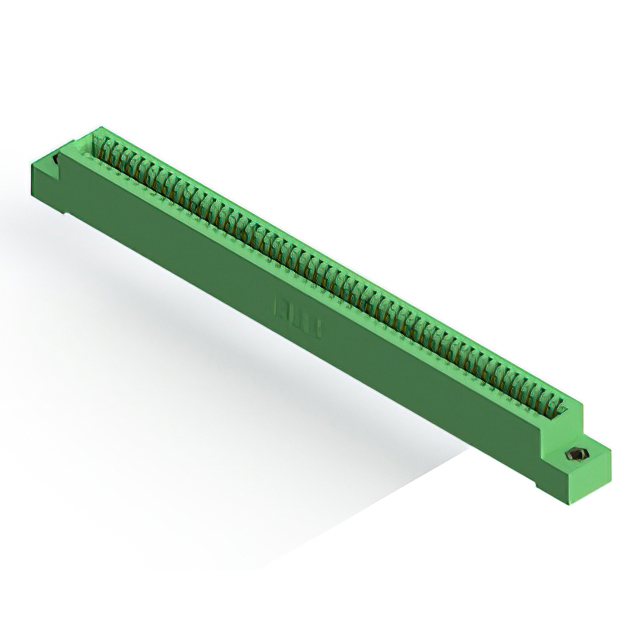

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows | Number of Positions/Bay/Row | Contact Type | Card Type | Contact Material | Card Thickness | Card Thickness | Pitch | Pitch | Color | Number of Positions | Mounting Type | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Wire Wrap | Single | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 1 | 52 | Cantilever | Non Specified - Single Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Flush Mount M3 Threaded Insert Top Opening | 26 | Cantilever | Non Specified - Dual Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Single | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 52 | Cantilever | Non Specified - Single Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder | Dual | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 26 | Cantilever | Non Specified - Dual Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | 2 | 2 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder | Single | 1 | 52 | Cantilever | Non Specified - Single Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Single | 1 | 52 | Cantilever | Non Specified - Single Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder | Single | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 1 | 52 | Cantilever | Non Specified - Single Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder | Single | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 52 | Cantilever | Non Specified - Single Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | 26 | Cantilever | Non Specified - Dual Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | 2 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | -65 ░C | 125 °C | Female | 0.25 Ám | 10 Áin | Wire Wrap | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 26 | Cantilever | Non Specified - Dual Edge | Copper Alloy | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Green | 52 | Through Hole | 2 | 2 |
