S30F1C-P Series
Manufacturer: ODU
Beta
⌘K

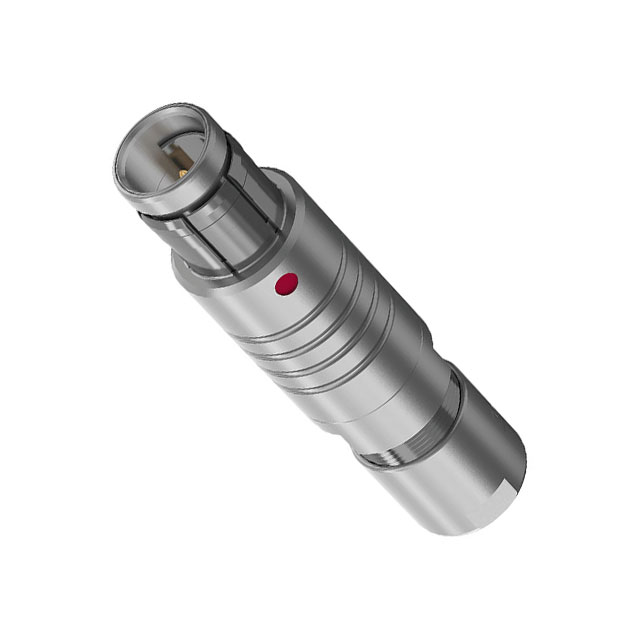

ODU MINI-SNAP STRAIGHT PLUG, SZ0
| Part | Material Flammability Rating | Fastening Type | Applications | Current Rating (Amps) | Insert Material | Connector Type | Mounting Type | Shell Material | Contact Finish - Mating | Shell Size - Insert [custom] | Shell Finish | Color | Orientation [custom] | Cable Opening [Min] | Cable Opening [Max] | Shielding | Backshell Material, Plating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Ingress Protection | Features | Contact Material | Voltage Rating | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 4 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.079 in 2 mm | 0.098 in 2.5 mm | Unshielded | Brass Chrome over Nickel | 9 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 300 VDC | |||
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 4 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.138 " | 0.157 in | Unshielded | Brass Chrome over Nickel | 7 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 300 VDC | 4 mm | 3.5 mm | |
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.098 in | 0.118 " | Unshielded | Brass Chrome over Nickel | 5 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 200 V | 3 mm | 2.5 mm | |
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.098 in | 0.118 " | Unshielded | Brass Chrome over Nickel | 4 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 300 VDC | 3 mm | 2.5 mm | |
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.059 " | 0.079 " | Unshielded | Brass Chrome over Nickel | 4 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 300 VDC | 2 mm | 1.5 mm | |
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 4 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.177 in | 0.197 in | Shielded | Brass Chrome over Nickel | 9 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 5 mm | 4.5 mm | ||
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.039 in | 0.059 in | Unshielded | Brass Chrome over Nickel | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 400 V | 1.5 mm | 1 mm | ||
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 4 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.118 in | 0.138 in | Unshielded | Brass Chrome over Nickel | 7 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 300 VDC | 3.5 mm | 3 mm | |
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.079 in 2 mm | 0.098 in 2.5 mm | Unshielded | Brass Chrome over Nickel | 5 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 200 V | |||
UL94 V-0 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Polyetheretherketone (PEEK) | Plug Male Pins | Free Hanging (In-Line) | Brass | Gold | 0 | Chrome over Nickel | Silver | 1 | 0.157 in | 0.177 " | Unshielded | Brass Chrome over Nickel | 2 | 120 °C | -40 C | Metal | IP68 - Dust Tight Waterproof | Backshell | Brass | 500 V | 4.5 mm | 4 mm |
