MNI-4 Series

Catalog

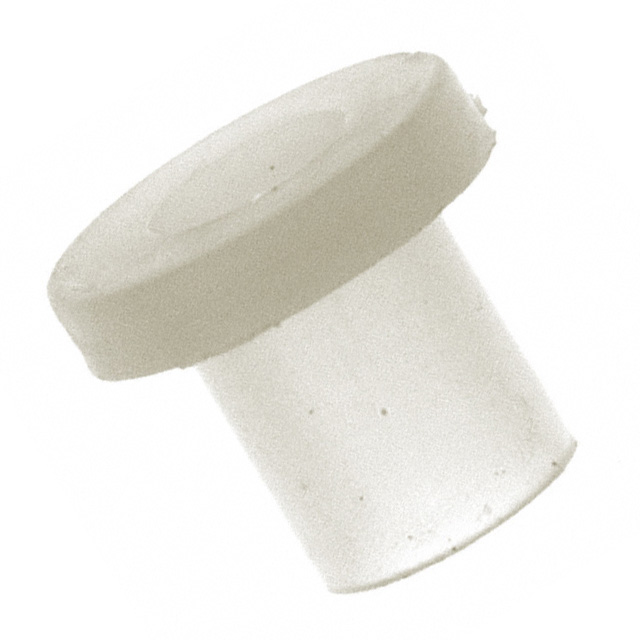

WASHER SHOULDER #4 NYLON

Part	Thickness - Overall	Thickness - Overall	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Thread/Screw/Hole Size	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length - Below Head	Length - Below Head	Length - Below Head	Diameter - Shoulder [diameter]	Diameter - Shoulder [diameter]	Length - Below Head [x]	Length - Below Head [x]	Thickness - Overall [z]	Thickness - Overall [z]
Essentra Components MNI-4-10	5.17 mm	0.203 in	Nylon	5.97 mm	0.235 in	#4	2.92 mm	0.115 in	3.96 mm	0.156 in	0.15625 in	3.68 mm	0.145 in
Essentra Components MNI-4-8	4.4 mm	0.173 in	Nylon	5.97 mm	0.235 in	#4	2.92 mm	0.115 in	0.125 in	0.125 in	3.18 mm	3.68 mm	0.145 in
Essentra Components MNI-4-12	5.94 mm	0.234 in	Nylon	5.97 mm	0.235 in	#4	2.92 mm	0.115 in	4.78 mm	0.188 in		3.68 mm	0.145 in
Essentra Components MNI-4-2	1.98 mm	0.078 in	Nylon	5.97 mm	0.235 in	#4	2.92 mm	0.115 in	0.03125 "	0.031 "	0.79 mm	3.68 mm	0.145 in
Essentra Components MNI-4-6			Nylon	5.97 mm	0.235 in	#4	2.92 mm	0.115 in				3.68 mm	0.145 in	2.36 mm	0.093 in	3.56 mm	0.14 in
