AB11AP Series

Catalog

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Part	Mechanical Life	Electrical Life	Circuit	Termination Style	Actuator Marking	Voltage Rating - AC	Type	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Features
NKK Switches AB11AP-HB	50000 Cycles	50000 Cycles	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 ░C	Button Round	28 V	Through Hole	White	Sealed - Fully

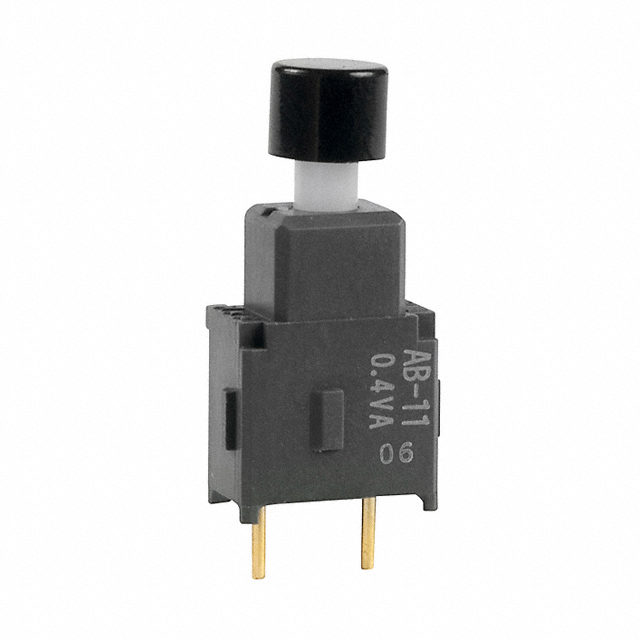

NKK Switches AB11AP-FA	50000 Cycles	50000 Cycles	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 ░C	Button Round	28 V	Through Hole	Black	Sealed - Fully
NKK Switches AB11AP-FB	50000 Cycles	50000 Cycles	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 ░C	Button Round	28 V	Through Hole	White	Sealed - Fully

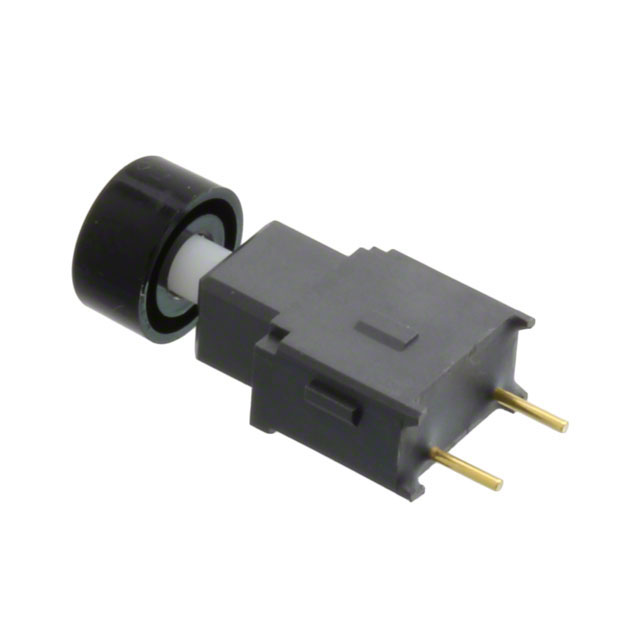

NKK Switches AB11AP-HA	50000 Cycles	50000 Cycles	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 ░C	Button Round	28 V	Through Hole	Black	Sealed - Fully
NKK Switches AB11AP/N/C	50000 Cycles	50000 Cycles	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 ░C	Plunger for Cap	28 V	Through Hole	White	Sealed - Fully

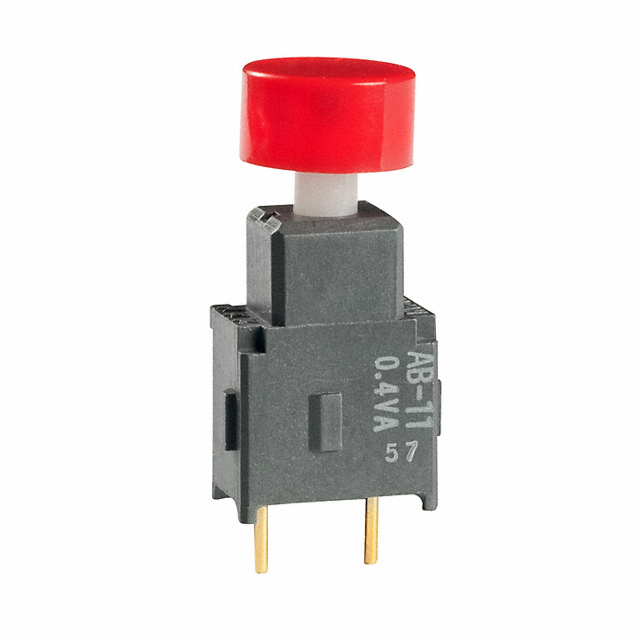

NKK Switches AB11AP-HC	50000 Cycles	50000 Cycles	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 ░C	Button Round	28 V	Through Hole	Red	Sealed - Fully
