1546686 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
6PCV-02-1395=0.375 6 SERIES TRI-BARRIER
| Part | Operating Temperature | Material - Insulation | Terminal Screw Finish | Material Flammability Rating | Terminal Screw Material | Mounting Type | Current Rating (Amps) | Color | Voltage Rating | Top Termination | Number of Wire Entries | Wire Gauge [Max] | Wire Gauge [Min] | Barrier Type | Features | Bottom Termination | Number of Rows | Number of Circuits | Pitch | Pitch | Terminal Block Type | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

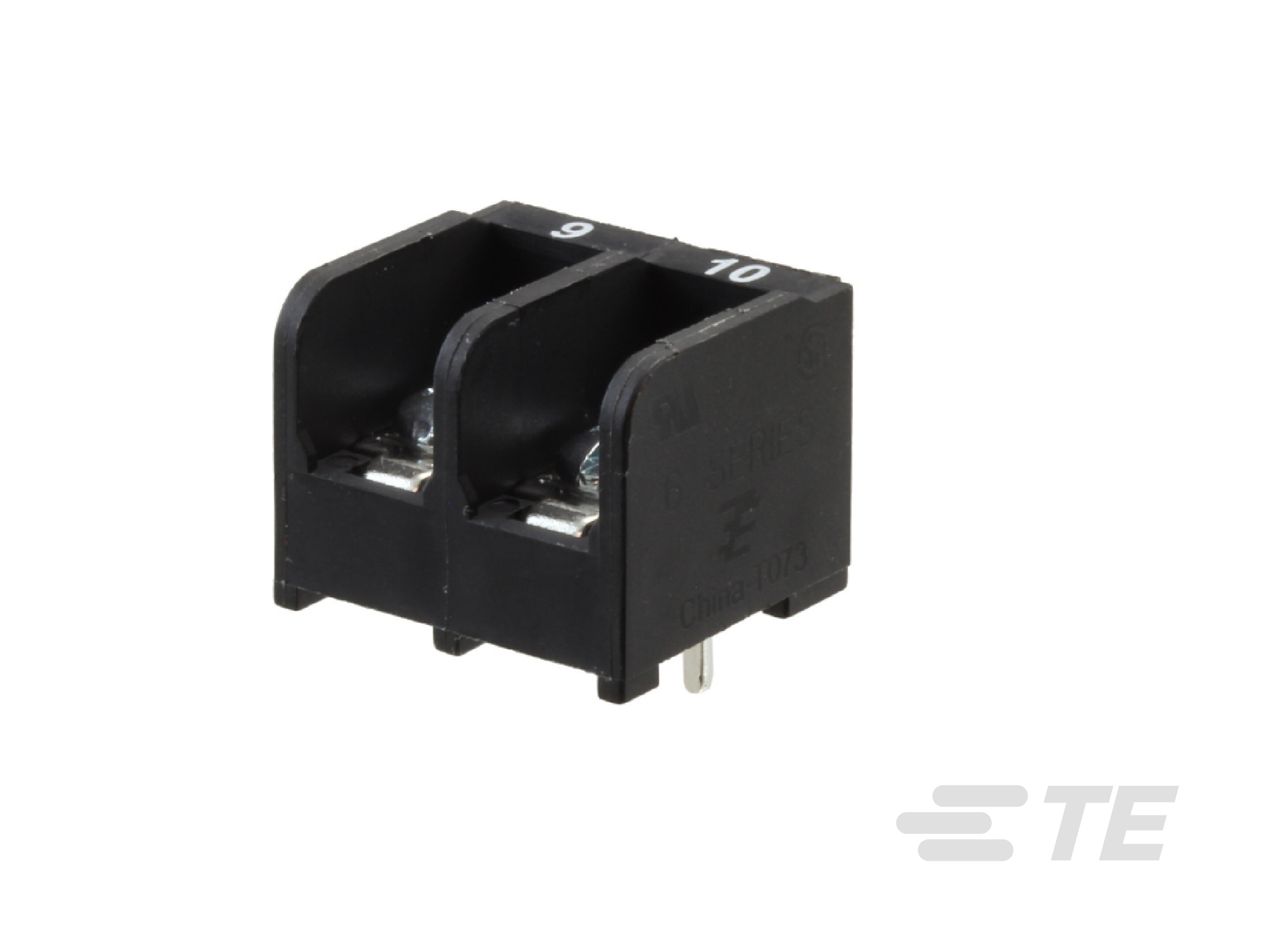

 TE Connectivity AMP Connectors | 105 C | Thermoplastic | Clear Chromate Zinc | UL94 V-0 | Steel | Through Hole | 25 A | Black | 300 VDC | Screws | 2 | 22 AWG | 12 AWG | 3 Wall (Tri) | Positions Stamped | PC Pin | 1 | 2 | 9.53 mm | 0.375 in | Barrier Block | |

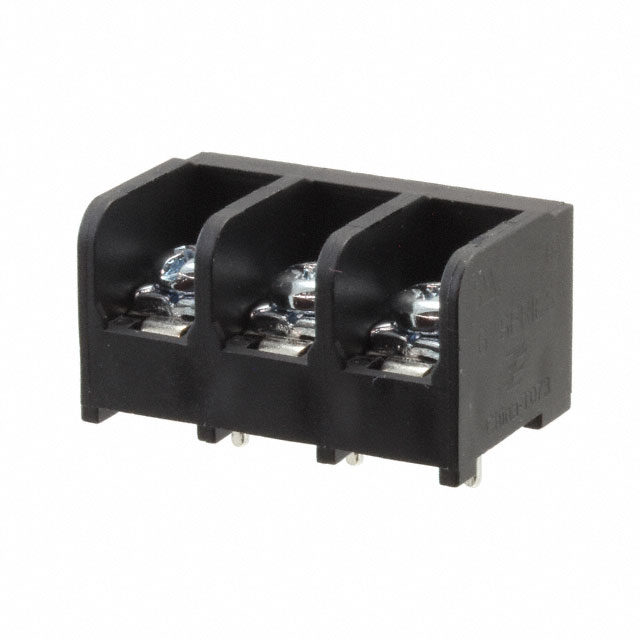

 TE Connectivity AMP Connectors | 105 C | Thermoplastic | Clear Chromate Zinc | UL94 V-0 | Steel | Through Hole | 25 A | Black | 300 VDC | Screws with Captive Plate | 3 | 22 AWG | 12 AWG | 3 Wall (Tri) | PC Pin | 1 | 3 | 9.53 mm | 0.375 in | Barrier Block | ||
 TE Connectivity AMP Connectors | 105 C | Thermoplastic | Clear Chromate Zinc | UL94 V-0 | Steel | Through Hole | 25 A | Black | 300 VDC | Screws | 22 | 22 AWG | 12 AWG | 3 Wall (Tri) | PC Pin | 1 | 22 | 9.53 mm | 0.375 in | Barrier Block | ||

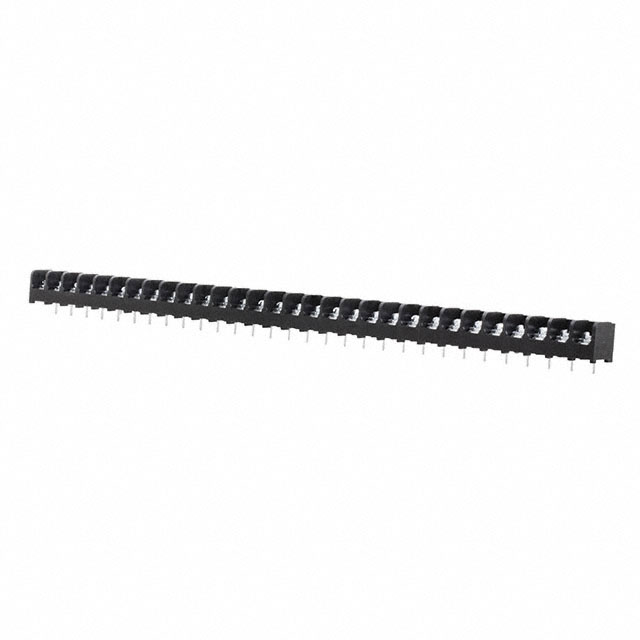

TE Connectivity AMP Connectors | 105 C | Thermoplastic | Clear Chromate Zinc | UL94 V-0 | Steel | Through Hole | 25 A | Black | 300 VDC | Screws | 28 | 22 AWG | 12 AWG | 3 Wall (Tri) | PC Pin | 1 | 9.53 mm | 0.375 in | Barrier Block | 28 |
