31_N-SMA Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

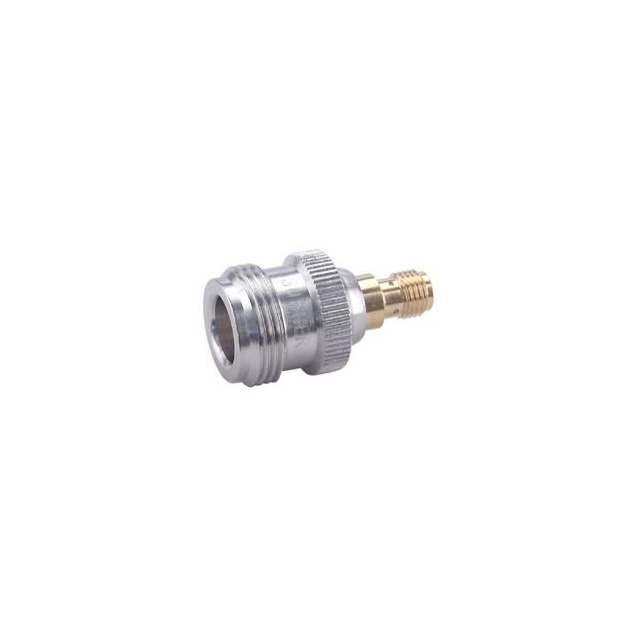

31_N-SMA-50-51/1--_UE
| Part | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Material | Convert To (Adapter End) | Center Gender | Conversion Type | Style | Convert From (Adapter End) | Frequency - Max [Max] | Center Contact Plating | Adapter Type | Mounting Type | Impedance | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Gold | 500 | -55 C | 70 °C | Beryllium Copper | Beryllium Copper Stainless Steel | SMA Jack Female Socket | Female to Female | Between Series | Straight | Female Socket N Jack | 18 GHz | Gold | Jack to Jack | Free Hanging (In-Line) | 50 Ohms | |
 Huber+Suhner, Inc. | 500 | -55 C | 70 °C | Beryllium Copper | Beryllium Copper Stainless Steel | N Jack Female Socket | Female to Female | Between Series | Straight | Female Socket SMA Jack | 18 GHz | Gold | Jack to Jack | Free Hanging (In-Line) | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | |
 Huber+Suhner, Inc. | White Bronze | 500 | -65 ░C | 165 °C | Beryllium Copper | Beryllium Copper Brass | N Jack Female Socket | Female to Female | Between Series | Straight | Female Socket SMA Jack | 18 GHz | Gold | Jack to Jack | Free Hanging (In-Line) | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) |
