860-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER SMD 26POS 1MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Connector Type	Insulation Material	Number of Positions	Termination	Number of Rows	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Contact Type	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 860-10-026-30-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	26	Solder	1	Push-Pull	Surface Mount	2.41 mm	0.095 in	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold
Mill-Max Manufacturing Corp. 860-10-009-30-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	9	Solder	1	Push-Pull	Surface Mount	2.41 mm	0.095 in	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold
Mill-Max Manufacturing Corp. 860-10-009-10-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	9	Solder	1	Push-Pull	Through Hole	2.5 mm	0.098 "	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold	0.265 in	6.73 mm	0.092 in	2.34 mm
Mill-Max Manufacturing Corp. 860-10-021-30-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	21	Solder	1	Push-Pull	Surface Mount	2.41 mm	0.095 in	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold
Mill-Max Manufacturing Corp. 860-10-016-10-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	16	Solder	1	Push-Pull	Through Hole	2.5 mm	0.098 "	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold	0.265 in	6.73 mm	0.092 in	2.34 mm
Mill-Max Manufacturing Corp. 860-10-045-10-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	45	Solder	1	Push-Pull	Through Hole	2.5 mm	0.098 "	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold	0.265 in	6.73 mm	0.092 in	2.34 mm
Mill-Max Manufacturing Corp. 860-10-018-30-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	18	Solder	1	Push-Pull	Surface Mount	2.41 mm	0.095 in	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold

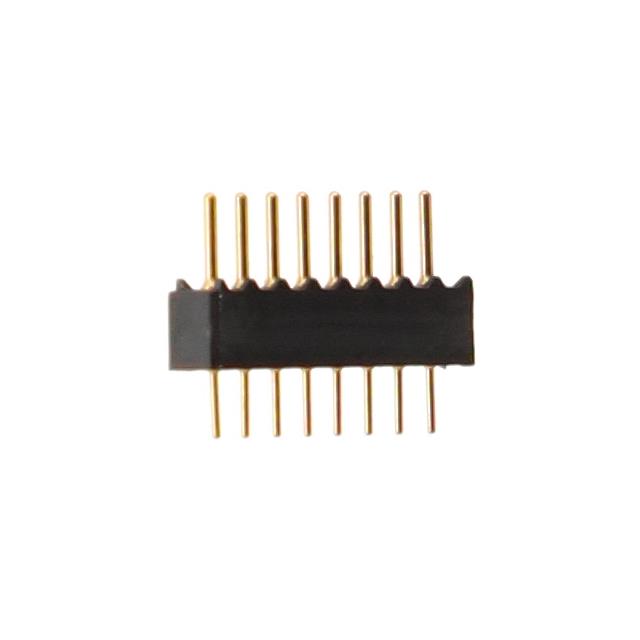

Mill-Max Manufacturing Corp. 860-10-008-10-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	8	Solder	1	Push-Pull	Through Hole	2.5 mm	0.098 "	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold	0.265 in	6.73 mm	0.092 in	2.34 mm
Mill-Max Manufacturing Corp. 860-10-029-10-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	29	Solder	1	Push-Pull	Through Hole	2.5 mm	0.098 "	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold	0.265 in	6.73 mm	0.092 in	2.34 mm
Mill-Max Manufacturing Corp. 860-10-041-10-002000	10 Áin	0.25 çm	0.075 in	1.9 mm	Gold	Header	Nylon 4/6 Polyamide (PA46)	41	Solder	1	Push-Pull	Through Hole	2.5 mm	0.098 "	Male Pin	Circular	Black	All	Brass Alloy	1 mm	0.039 in	Unshrouded	0.25 µm	10 µin	Gold	0.265 in	6.73 mm	0.092 in	2.34 mm
