ET220P Series

Catalog

SWITCH TOGGLE DPDT 20A 125V

Part	Electrical Life	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC	Bushing Thread	Actuator Type	Illumination	Circuit	Mounting Type	Actuator Length [x]	Termination Style	Switch Function

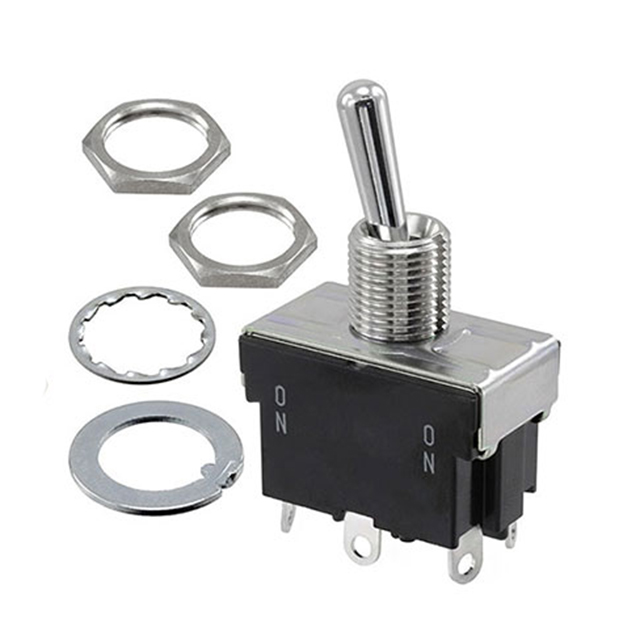

Nidec Components Corporation ET220P12-Z	20000 Steps	12.5 mm	20 A	125 V	M12 x 1	Standard Round	Non-Illuminated	DPDT	Panel Mount	17 mm	Solder Lug	On-Off-On
