A170 Series

Catalog

DIODE GP 1.5KV 100A DO205AA

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Supplier Device Package	Supplier Device Package	Current - Average Rectified (Io)	Technology	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed
Powerex Inc. A170PE	1.3 V	1500 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170PB	1.3 V	1.2 kV	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170B	1.3 V	200 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA

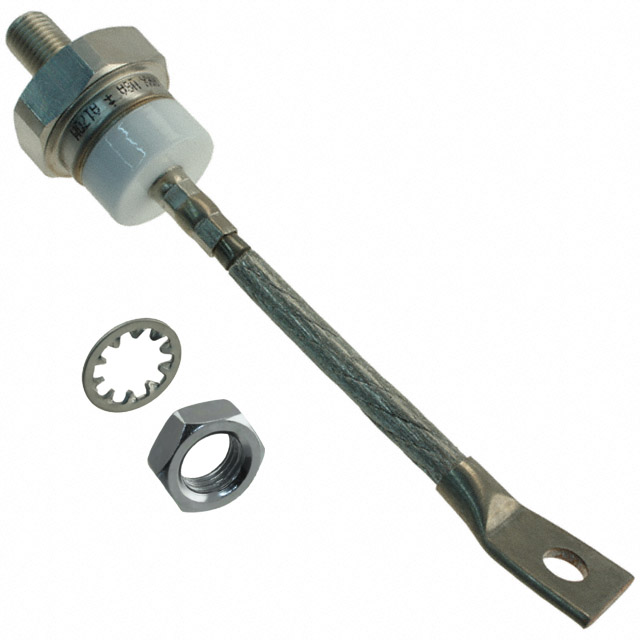

Powerex Inc. A170M	1.3 V	600 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170N	1.3 V	800 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170RD	1.3 V	400 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Reverse Polarity Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170RB	1.3 V	200 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Reverse Polarity Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170RM	1.3 V	600 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Reverse Polarity Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170PD	1.3 V	1400 V	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
Powerex Inc. A170RPB	1.3 V	1.2 kV	20 mA	DO-205AA DO-8 Stud	DO-8	DO-205AA	100 A	Reverse Polarity Standard	Chassis Stud Mount	200 C	-40 °C	Standard Recovery >500ns	200 mA
