284041 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 7POS 5.08MM

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Type	Contact Mating Finish	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Mounting Type	Contact Material	Color	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Insulation Height	Insulation Height	Screw Size	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Termination Style	Plug Wire Entry	Positions Per Level	Number of Levels	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 284041-7	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0	0.05 mm²	3 mm²	Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG	7	25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	7	1	0.79 Nm	7 Lb-In

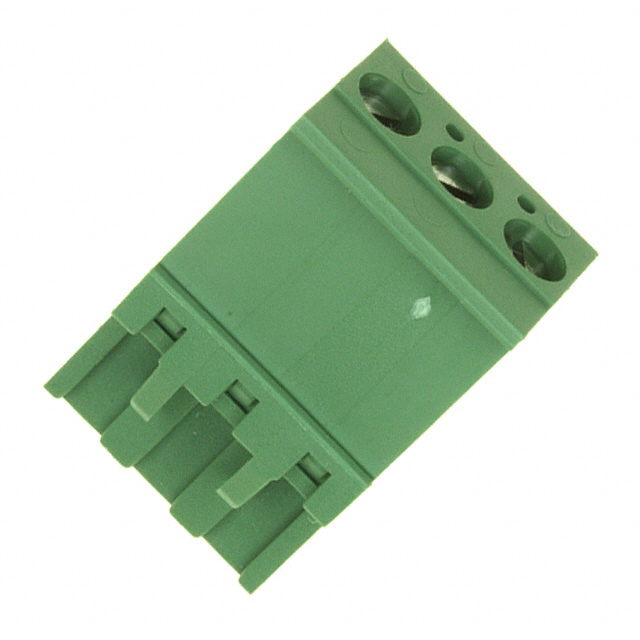

TE Connectivity Raychem Cable Protection 284041-3	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0			Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG		25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	3	1	0.79 Nm	7 Lb-In	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 284041-2	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0			Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG	2	25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	2	1	0.79 Nm	7 Lb-In	3 mm˛	0.05 mm˛

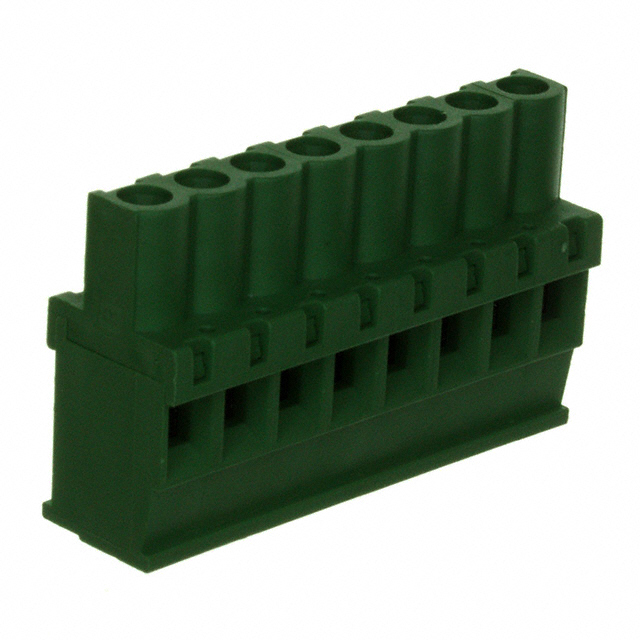

TE Connectivity Raychem Cable Protection 284041-8	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0			Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG	8	25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	8	1	0.79 Nm	7 Lb-In	3 mm˛	0.05 mm˛

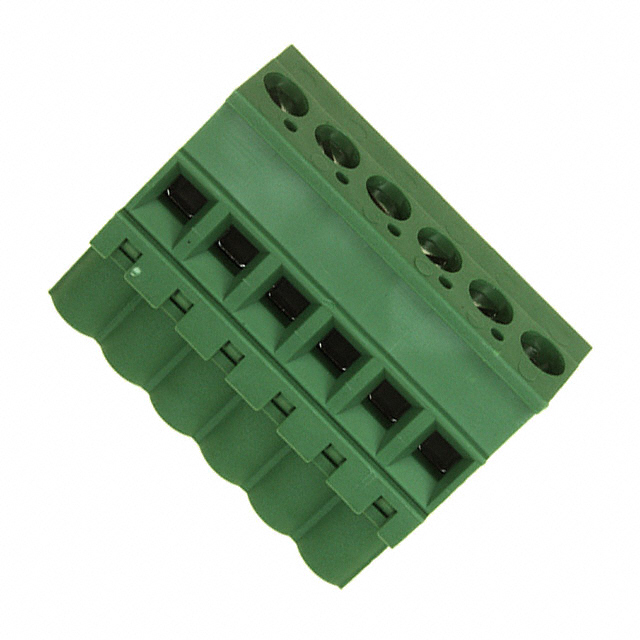

TE Connectivity Raychem Cable Protection 284041-6	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0			Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG	6	25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	6	1	0.79 Nm	7 Lb-In	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 1-284041-1	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0			Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG	11	25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	11	1	0.79 Nm	7 Lb-In	3 mm˛	0.05 mm˛

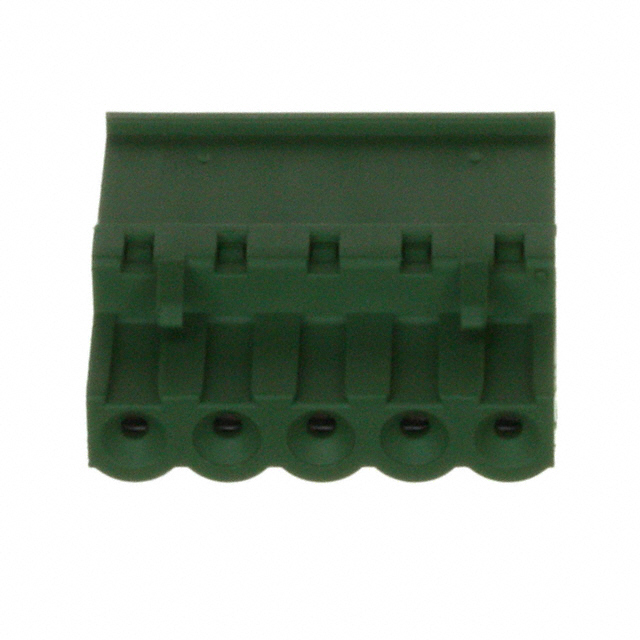

TE Connectivity Raychem Cable Protection 284041-5	7.5 mm	6 mm	Plug Female Sockets	Tin	UL94 V-0	0.05 mm²	3 mm²	Free Hanging (In-Line)	Phosphor Bronze	Green	300 V	30 AWG	12 AWG		25 mm	0.984 in	M3	-40 °C	110 °C	0.2 in	5.08 mm	Screw - Rising Cage Clamp	270 °	5	1	0.79 Nm	7 Lb-In
