627W5W Series
Manufacturer: EDAC Inc.
Beta
⌘K

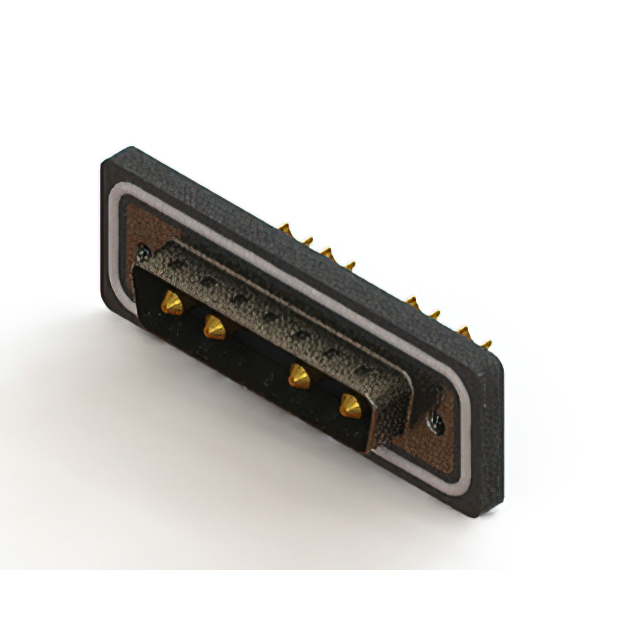

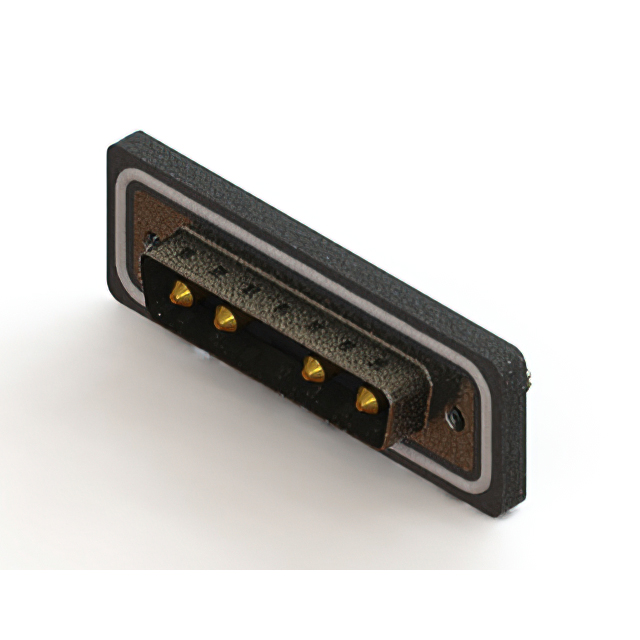

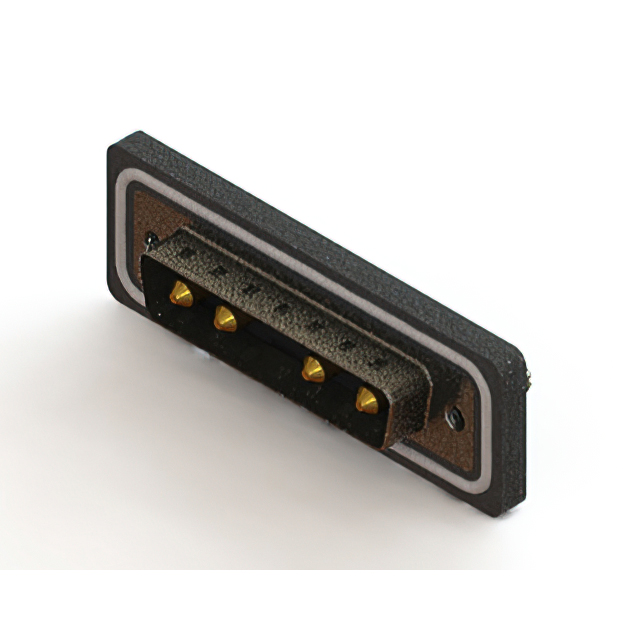

CONN D-SUB PLUG 5P PNL MNT SLDR
| Part | Dielectric Material | Voltage Rating | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Material Flammability Rating | Connector Style | Contact Finish | Flange Feature | Flange Feature | Ingress Protection | Shell Material, Finish | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Rows | Features | Termination | Contact Type | Number of Positions | Mounting Type | Contact Finish Thickness | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 40 A | UL94 V-0 | Combo D-Sub | Gold | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Flash | Plug Male Pins | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 30 A | UL94 V-0 | Combo D-Sub | Gold | Board Side (M3) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Board Lock Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Plug Male Pins | 5 µin | 0.127 µm | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 40 A | UL94 V-0 | Combo D-Sub | Gold | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Grounding Indents Shielded | Power | 5 | Panel Mount | Plug Male Pins | 15 µin | 0.38 µm | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 10 A | UL94 V-0 | Combo D-Sub | Gold | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Plug Male Pins | 15 µin | 0.38 µm | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 30 A | UL94 V-0 | Combo D-Sub | Gold | Board Side (4-40) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Board Lock Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Plug Male Pins | 15 µin | 0.38 µm | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 10 A | UL94 V-0 | Combo D-Sub | Gold | Board Side (M3) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Board Lock Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Flash | Plug Male Pins | |||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 5 A 30 A | UL94 V-0 | Combo D-Sub | Gold | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 5W1 DE E | Grounding Indents Shielded | Solder | Signal and Power | 5 | Panel Mount Through Hole | Flash | Plug Male Pins | 2 | 1 | |||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 30 A | UL94 V-0 | Combo D-Sub | Gold | Board Side (M3) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Board Lock Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Plug Male Pins | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 30 A | UL94 V-0 | Combo D-Sub | Gold | Board Side (4-40) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Board Lock Grounding Indents Shielded | Solder | Power | 5 | Panel Mount | Plug Male Pins | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | 85 °C | -25 °C | Black | 30 A | UL94 V-0 | Combo D-Sub | Gold | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 | DB B | 5W5 | 1 | Grounding Indents Shielded | Power | 5 | Panel Mount | Plug Male Pins | 30 Áin | 0.76 Ám |
