PM5-A12B28 Series
Manufacturer: Bivar Inc.
Beta
⌘K

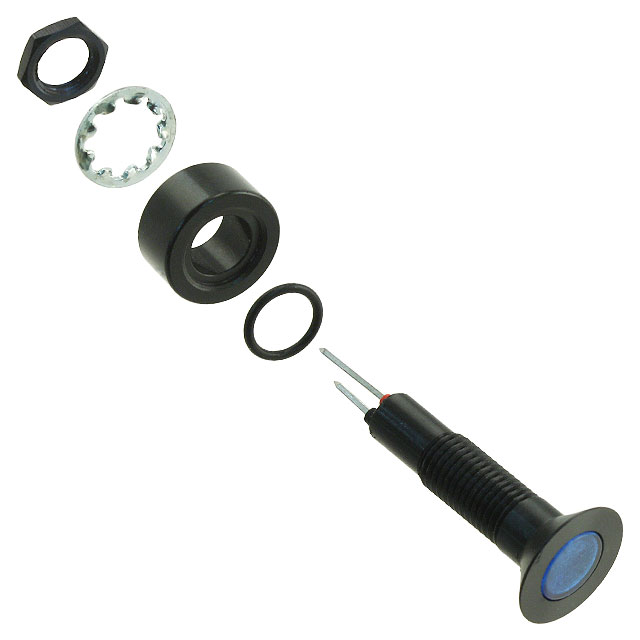

PANEL MOUNT ASSEM 6.1MM BLUE
| Part | Viewing Angle | Lamp Color | Lens Color | Panel Cutout Shape | Wavelength - Peak | Termination Style | Millicandela Rating | Ingress Protection | Voltage [Min] | Voltage [Max] | Current | Lens Transparency | Lens Size [diameter] | Type | Ratings | Lens Style | Panel Cutout Dimensions | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 120 ° | Blue | Blue | Round | 470 nm | PC Pin | 128 mcd | IP67 | 24 V | 28 V | 20 mA | Fresnel | 6.7 mm | LED | DC | Round with Flat Top | 6.1 mm | 0.24 in |
