501745 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD PLUG, 0.40MM PITCH, J-BEND SERIES, 2.00 OR 2.30MM MATED HEIGHT, 3.40 OR 4.20MM MATED WIDTH, 12 CIRCUITS

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Pitch	Pitch	Features	Connector Type	Number of Positions

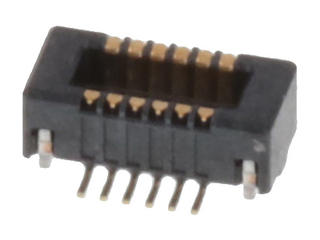

Molex 5017459901	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	12
Molex 5017450601	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm 2.3 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	60
Molex 5017450541	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	50

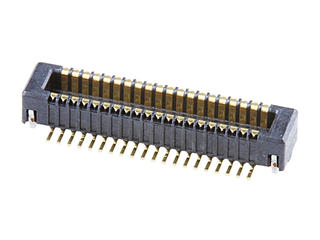

Molex 5017450401	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm 2.3 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	40
Molex 5017450801	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	80

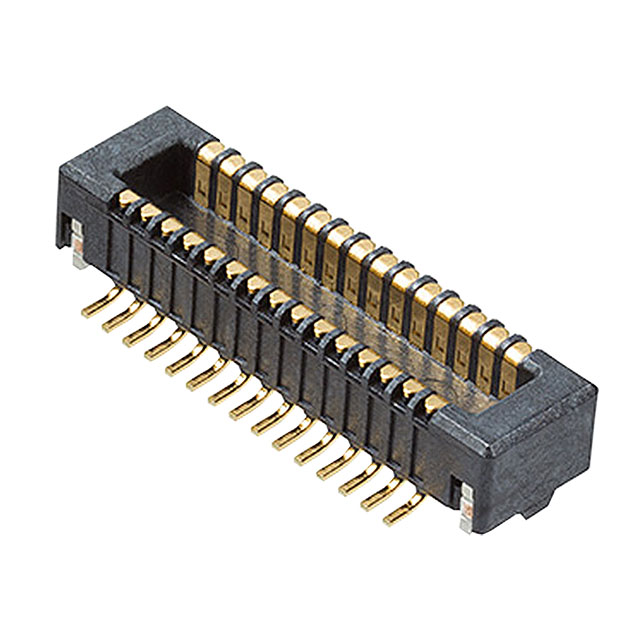

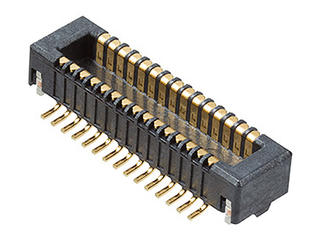

Molex 5017450301	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm 2.3 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	30
Molex 5017450501	1.64 mm	0.064 "	Gold	Surface Mount	2	0.203 çm	8 µin	2 mm 2.3 mm	0.4 mm	0.016 in	Solder Retention	Plug Outer Shroud Contacts	50
