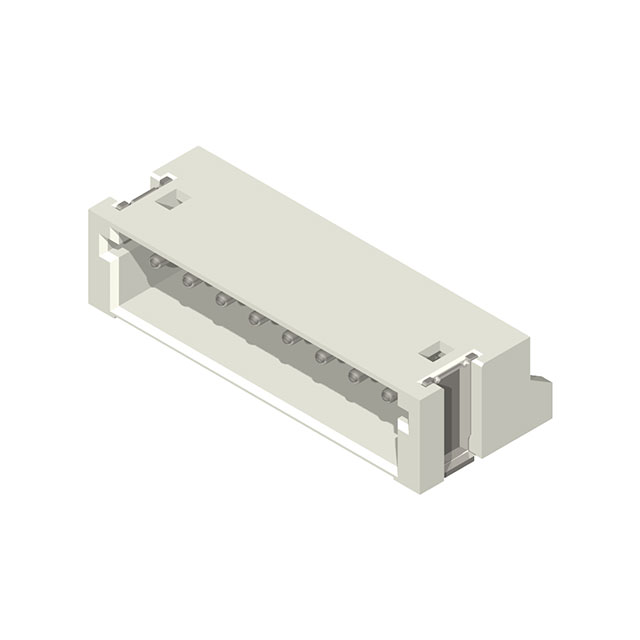

CI1506M1 Series
Manufacturer: Cvilux USA
Catalog
6 POS 1.50MM(.059) WIRE TO BOARD
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Number of Rows | Voltage Rating | Features | Material Flammability Rating | Insulation Height | Insulation Height | Shrouding | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Length - Mating | Contact Length - Mating | Termination | Contact Material | Connector Type | Insulation Material | Contact Shape | Number of Positions Loaded | Current Rating (Amps) | Number of Positions | Style | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | 120 Áin | 3.05 Ám | Natural | 1 | 50 VAC | Pick and Place Solder Retention | UL94 V-0 | 5.05 mm | 0.199 in | Shrouded - 4 Wall | Male Pin | 120 µin | 3.05 µm | Tin | Surface Mount | 85 °C | -25 °C | Detent Lock | 0.093 in | 2.36 mm | Solder | Brass | Header | Plastic Halogen Free | Square | All | 1 A | 6 | Board to Cable/Wire | |
 Cvilux USA | 120 Áin | 3.05 Ám | Natural | 1 | 50 VAC | Solder Retention | UL94 V-0 | 0.148 in | Shrouded - 4 Wall | Male Pin | 120 µin | 3.05 µm | Tin | Right Angle Surface Mount | 85 °C | -25 °C | Detent Lock | 0.1 in | 2.54 mm | Solder | Brass | Header | Nylon 4/6 Polyamide (PA46) | Square | All | 1 A | 6 | Board to Cable/Wire | 3.75 mm |
