TB1-2E Series

Catalog

SWITCH TOGGLE DPDT 10A 250V

Part	Current Rating	Voltage Rating - AC	Mounting Type	Illumination	Panel Cutout Diameter	Panel Cutout Shape	Actuator Length	Circuit	Actuator Type	Termination Style	Bushing Thread	Switch Function	Electrical Life (Cycles)	Voltage Rating - DC	Quick Connect Size (0.250")

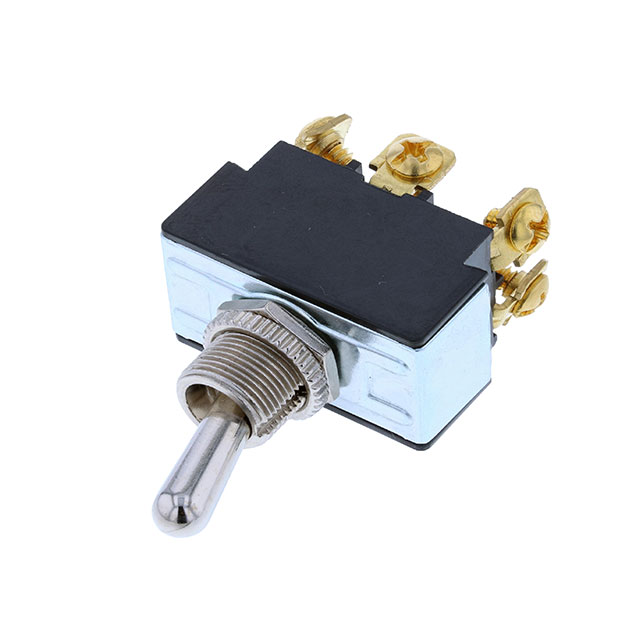

Switch Components TB1-2E-AC-6	10 A	250 V	Panel Mount	Non-Illuminated	12.2 mm	Circular	16.5 mm	DPDT	Standard Round	Screw Terminal	15/32-32	On-Mom
Switch Components TB1-2E-DC-6	20 A 21 A	125 V	Panel Mount	Non-Illuminated	12 mm	Circular	16.5 mm	DPDT	Standard Round	Screw Terminal	15/32-32	On-Mom	6000 Cycles	14 V

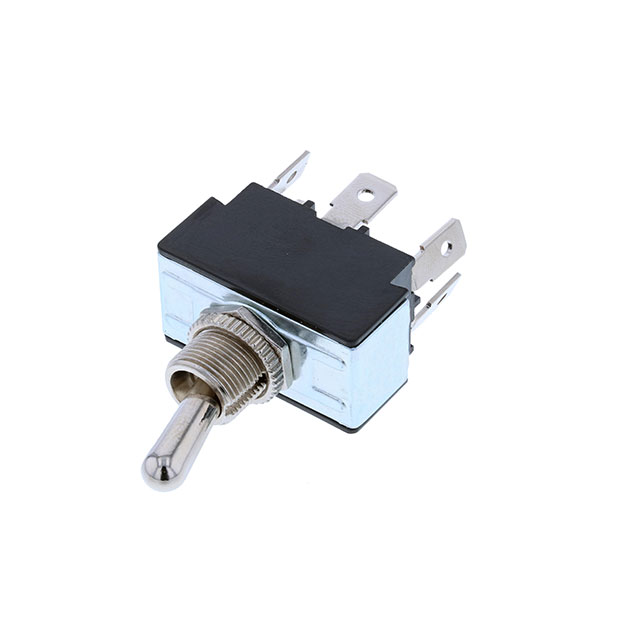

Switch Components TB1-2E-DC-1	20 A 21 A	125 V	Panel Mount	Non-Illuminated	12 mm	Circular	16.5 mm	DPDT	Standard Round	Quick Connect	15/32-32	On-Mom	6000 Cycles	14 V	0.25 in
