08S121 Series
Manufacturer: Rosenberger
Beta
⌘K

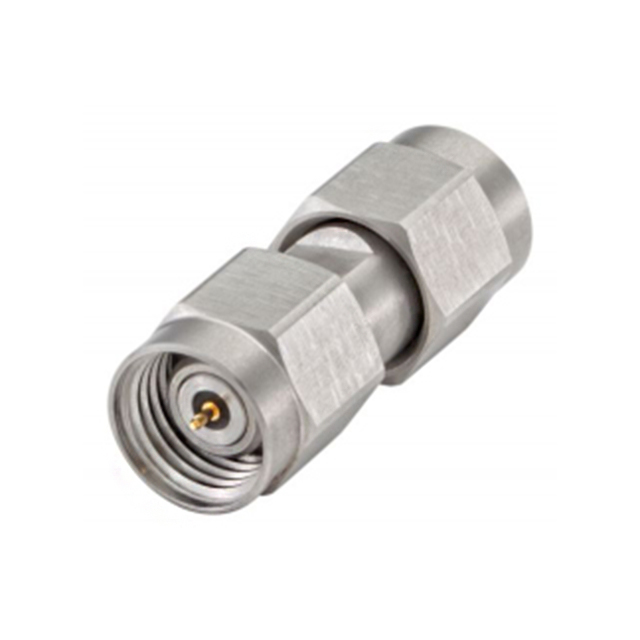

COAX ADAPT RPC-1.85 TO RPC-1.85
| Part | Center Contact Material | Insertion Loss | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Adapter Type | Adapter Series | Convert From (Adapter End) | Convert From (Adapter End) | Style | Impedance | Mounting Type | Conversion Type | Center Contact Plating | Convert To (Adapter End) | Center Gender | Frequency - Max [Max] | Specifications | Accessory Type | Type | For Use With/Related Products | Voltage Rating | Connector Type | Connector Style | Number of Ports | Fastening Type | Contact Termination | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Beryllium Copper | 0.42 dB | Polyetheretherketone (PEEK) | Stainless Steel | 85 °C | -40 C | 500 | Plug to Plug | RPC-1.85 to RPC-1.85 | Plug Male Pin | 1.85 mm | Straight | 50 Ohms | Free Hanging (In-Line) | Same Series | Gold | 1.85mm Plug Male Pin | Male to Male | 70 GHz | ||||||||||||
 Rosenberger | 1.85 Jack Plug | Calibration Adapter | Specialized | Network Analyzer | |||||||||||||||||||||||||||
 Rosenberger | 1.85 Plug Plug | Calibration Adapter | Specialized | Network Analyzer | |||||||||||||||||||||||||||
 Rosenberger | Beryllium Copper | Polyetheretherketone (PEEK) | Stainless Steel | 85 °C | -40 C | 500 | 50 Ohms | Free Hanging (In-Line) | Gold | 70 GHz | 150 VDC | Plug Male Pin | 1.85 mm | 1 | Threaded | Solder | Solder | ||||||||||||||
 Rosenberger | Beryllium Copper | Polyetheretherketone (PEEK) | Stainless Steel | 85 °C | -40 C | 500 | 50 Ohms | Free Hanging (In-Line) | Gold | 65 GHz | 150 VDC | Plug Male Pin | 1.85 mm | 1 | Threaded | Solder | Solder | Silver |
