503148 Series

Manufacturer: Molex

Catalog

1.50MM PITCH, CLIK-MATE PCB RECEPTACLE, DUAL ROW, SURFACE MOUNT, RIGHT-ANGLE, TIN PLATING, POSITIVE LOCK, 24 CIRCUITS, NATURAL

Part	Insulation Material	Applications	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Post	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Connector Type	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Rows [custom]	Material Flammability Rating	Mounting Type	Style	Voltage Rating	Current Rating (Amps)
Molex 5031482490	Resin	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.14 mm	0.36 in	24	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Beige	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire

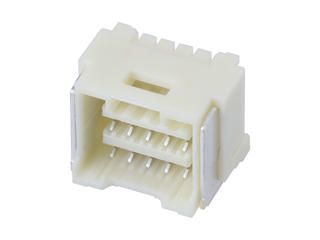

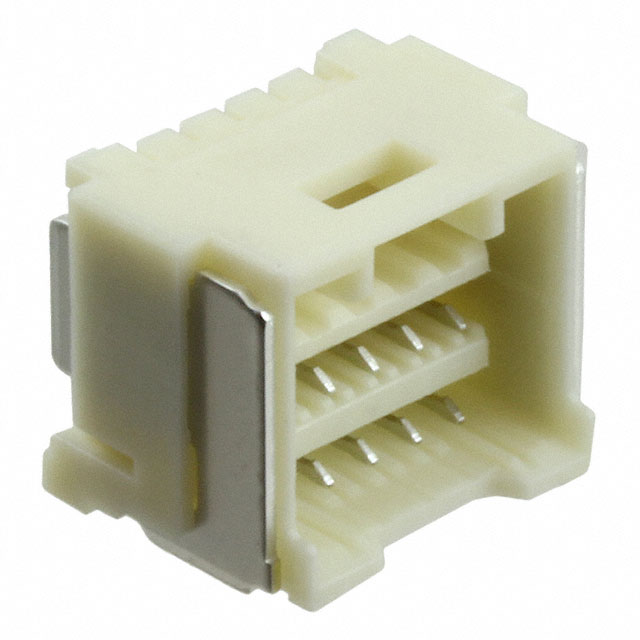

Molex 5031481090	Resin	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.14 mm	0.36 in	10	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Beige	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire
Molex 5031482071	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	20	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Black	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A
Molex 5031482471	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	24	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Black	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A
Molex 5031482470	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	24	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Natural	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A
Molex 5031482270	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	22	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Natural	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A
Molex 5031481671	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	16	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Black	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A
Molex 5031482671	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	26	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Black	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A

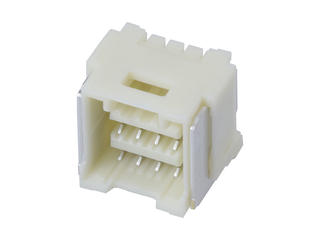

Molex 5031480890	Resin	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.14 mm	0.36 in	8	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Beige	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire
Molex 5031481870	Nylon Polyamide (PA)	Automotive General Purpose Industrial Lighting Medical	Copper Alloy	39.4 çin	1 çm	Pick and Place Solder Retention	9.2 mm	0.362 in	18	Tin	Solder	39.4 µin	1 µm	Latch Holder	Receptacle	Forked	All	-40 C	105 ░C	Natural	2	UL94 V-0	Right Angle Surface Mount	Board to Cable/Wire	100 V	1 A
