005126 Series

Manufacturer: Molex

Catalog

CONN D-TYPE RCPT 96P PNL MNT SLD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Dielectric Material	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Connector Style	Contact Type	Flange Feature	Mounting Type	Connector Type	Features	Termination	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Note	Shell Finish Thickness	Shell Finish Thickness	Shell Material, Finish	Backset Spacing	Backset Spacing
Molex 0051260001	80 °C	-20 ░C	Black	Beryllium Copper	Liquid Crystal Polymer (LCP) Glass Filled	40 V	0.075	0.075	96	Board to Board D-Type Matrix	Signal	Housing/Shell (Unthreaded)	Panel Mount Through Hole	Receptacle Female Sockets	Shielded	Solder	UL94 V-0	30 Áin	0.76 Ám	Gold

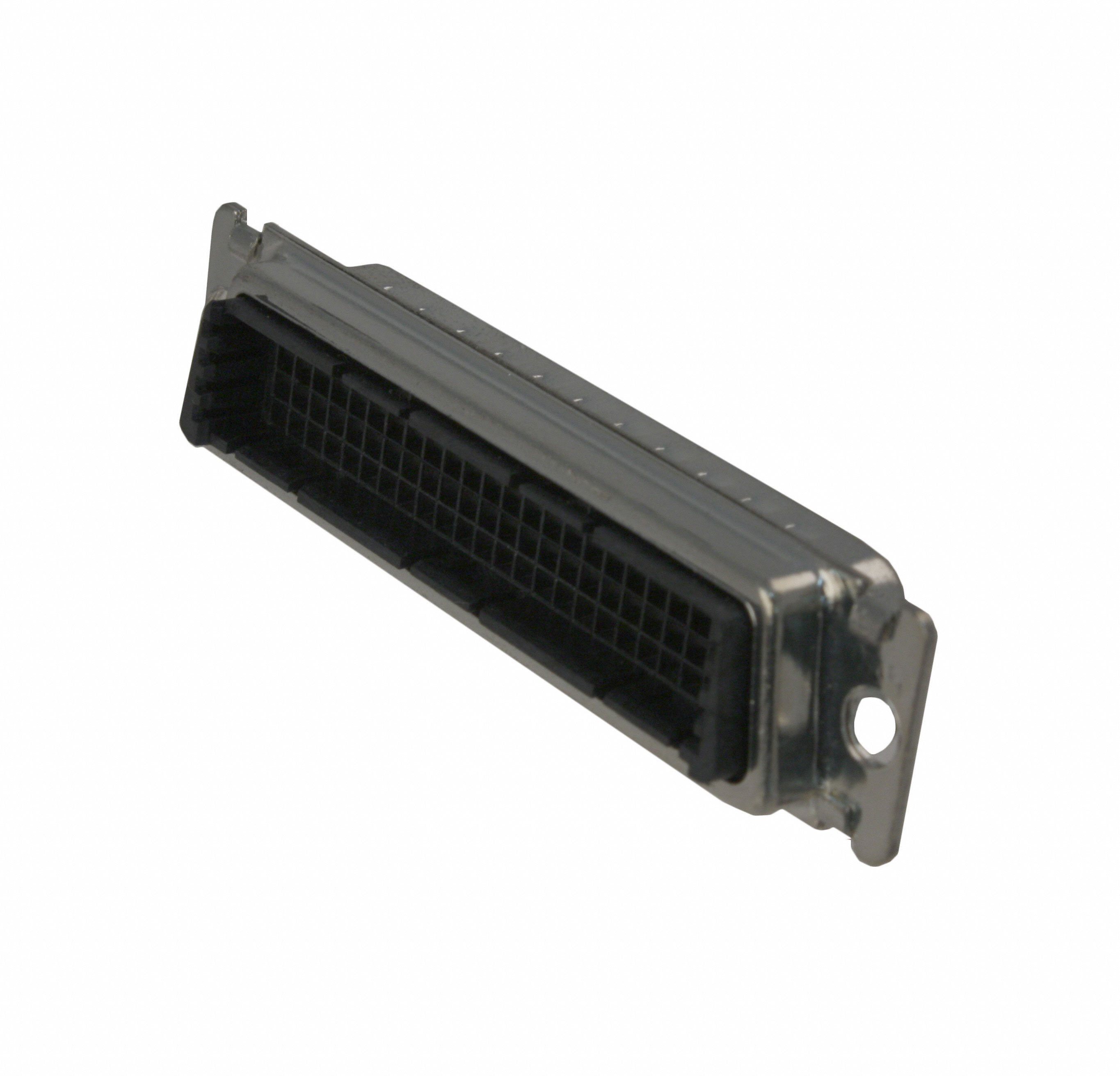

Molex 0051260012	80 °C	-20 ░C	Black		Liquid Crystal Polymer (LCP) Glass Filled		0.075	0.075	96	D-Type	Signal	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Plug for Male Matrix Strip	Shielded						Contacts Not Included	150 µin	3.81 µm
Molex 0051260011	80 °C	-20 ░C	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP) Glass Filled	40 V	0.075	0.075	96	Board to Board D-Type Matrix	Signal	Housing/Shell (Unthreaded)	Panel Mount Through Hole	Plug Male Pins	Grounding Indents Shielded	Solder	UL94 V-0	30 Áin	0.76 Ám	Gold

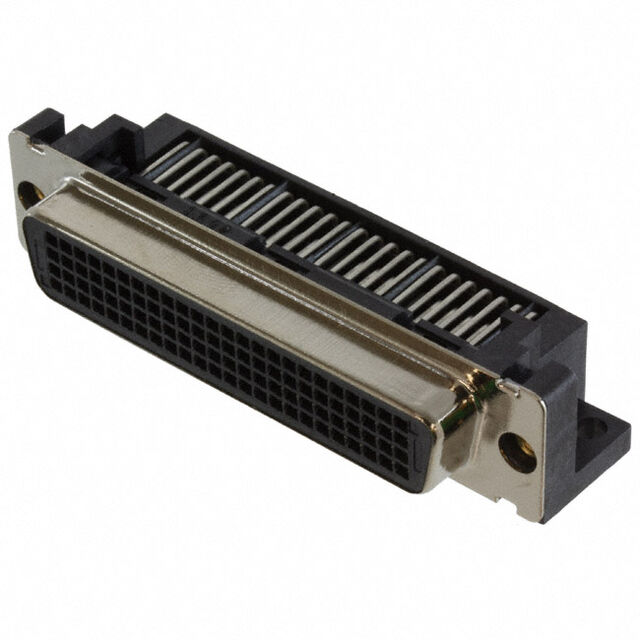

Molex 0051260000	80 °C	-20 ░C	Black	Beryllium Copper	Liquid Crystal Polymer (LCP) Glass Filled	40 V	0.075	0.075	96	Board to Board D-Type Matrix	Signal	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Shielded	Solder	UL94 V-0	30 Áin	0.76 Ám	Gold				Nickel Plated Steel	8.43 mm	0.332 in
Molex 0051260002	80 °C	-20 ░C	Black		Liquid Crystal Polymer (LCP) Glass Filled		0.075	0.075	96	D-Type	Signal	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Receptacle for Female Matrix Strip	Shielded						Contacts Not Included	100 µin	2.54 µm	Nickel Plated Steel
