M2012E2 Series

Catalog

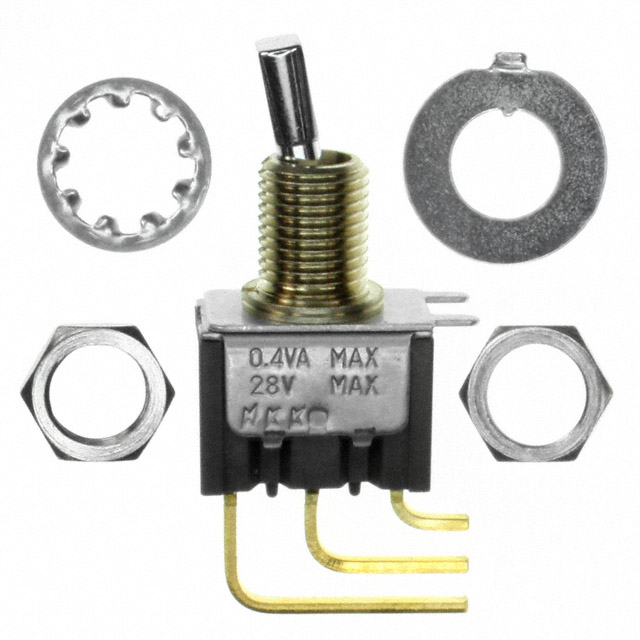

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Current Rating (Amps)	Actuator Length [x]	Switch Function	Illumination	Circuit	Termination Style	Features	Panel Cutout Dimensions [diameter]	Bushing Thread
NKK Switches M2012E2A2G30	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Unthreaded	28 V	28 V	Flatted	Right Angle Through Hole	0.4 VA	6.5 mm	On-On	Non-Illuminated	SPDT	PC Pin	Epoxy Sealed Terminals
NKK Switches M2012E2A2W13	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Unthreaded	125 V	30 V	Flatted	Through Hole	4 A 6 A	8.28 mm	On-On	Non-Illuminated	SPDT	PC Pin	Epoxy Sealed Terminals
NKK Switches M2012E2S4W03	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	M6	125 V	30 V	Flatted	Panel Mount	4 A 6 A	6.5 mm	On-On	Non-Illuminated	SPDT	PC Pin	Epoxy Sealed Terminals	6.5 mm	0.75
NKK Switches M2012E2S1G45	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	1/4-40	28 V	28 V	Flatted	Panel Mount Right Angle Vertical	0.4 VA	6.5 mm	On-On	Non-Illuminated	SPDT	PC Pin	Epoxy Sealed Terminals	6.5 mm
NKK Switches M2012E2S1W40	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	1/4-40	125 V	30 V	Flatted	Panel Mount Right Angle Vertical	4 A 6 A	6.5 mm	On-On	Non-Illuminated	SPDT	PC Pin	Epoxy Sealed Terminals	6.5 mm
