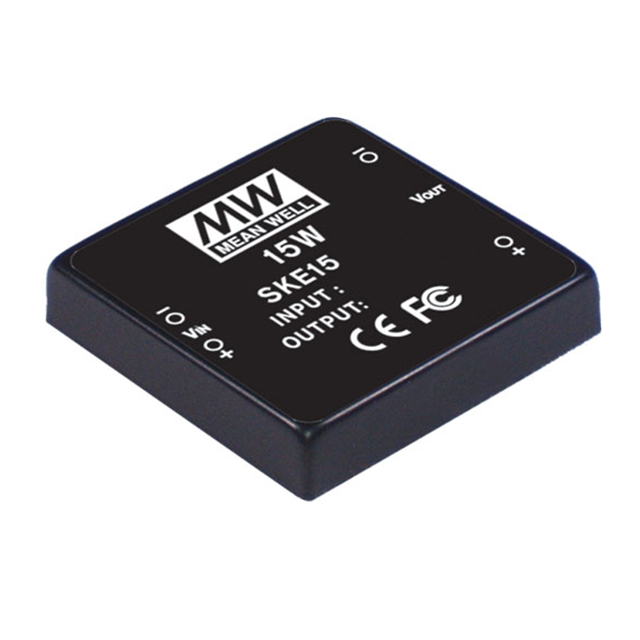

SKE15 Series

Catalog

DC DC CONVERTER 12V 15W

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max) [Max]	Features	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Type	Voltage - Isolation
MEAN WELL USA Inc. SKE15A-12	12 V	-25 °C	71 °C	5-DIP Module	1.25 A	OCP SCP	ITE (Commercial)	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	80 %	18 V	1	Through Hole	9 V	15 W	Isolated Module	1000 V
MEAN WELL USA Inc. SKE15C-05	5 V	-25 °C	71 °C	5-DIP Module	3 A	OCP SCP	ITE (Commercial)	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	80 %	72 V	1	Through Hole	36 V	15 W	Isolated Module	1000 V
MEAN WELL USA Inc. SKE15A-15	15 V	-25 °C	71 °C	5-DIP Module	1 A	OCP SCP	ITE (Commercial)	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	80 %	18 V	1	Through Hole	9 V	15 W	Isolated Module	1000 V
MEAN WELL USA Inc. SKE15C-15	15 V	-25 °C	71 °C	5-DIP Module	1 A	OCP SCP	ITE (Commercial)	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	83 %	72 V	1	Through Hole	36 V	15 W	Isolated Module	1000 V
MEAN WELL USA Inc. SKE15C-24	24 V	-25 °C	71 °C	5-DIP Module	625 mA	OCP SCP	ITE (Commercial)	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	84 %	72 V	1	Through Hole	36 V	15 W	Isolated Module	1000 V
