6424.0253 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Termination	Termination	Termination	Filter Type	Material Flammability Rating	Connector Style	Connector Type	Approval Agency	Switch Features	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type

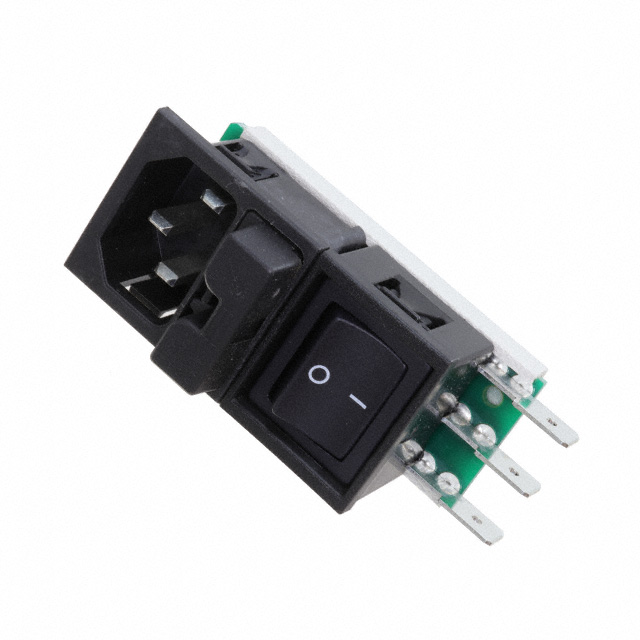

SCHURTER Inc. 6424.0253.20	10 A	250 VAC	Fuse Holder	6.3 mm	Quick Connect	0.25 "	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Receptacle Male Blades - Module	CSA ENEC UL	Switch On-Off	0.079 in	2 mm	27.6 mm	57 mm	Panel Mount Snap-In
SCHURTER Inc. 6424.0253.15	10 A	250 VAC	Fuse Holder	6.3 mm	Quick Connect	0.25 "	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Receptacle Male Blades - Module	CSA ENEC UL	Switch On-Off	0.059 in	1.5 mm	27.6 mm	57 mm	Panel Mount Snap-In

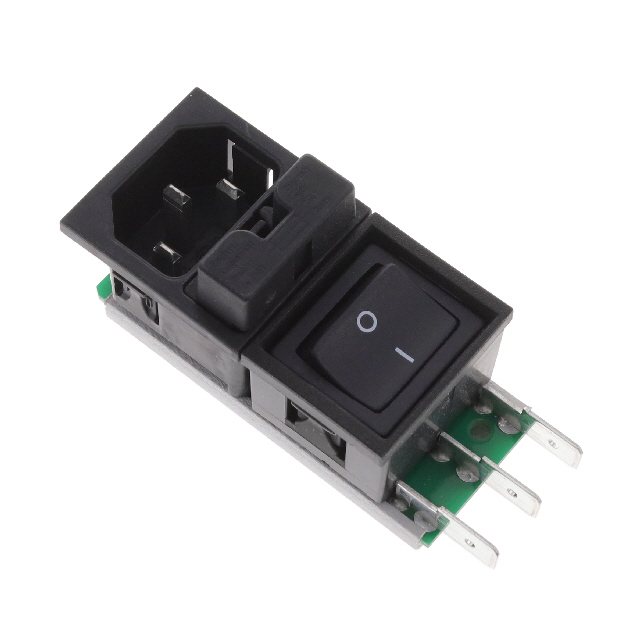

SCHURTER Inc. 6424.0253.10	10 A	250 VAC	Fuse Holder	6.3 mm	Quick Connect	0.25 "	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Receptacle Male Blades - Module	CSA ENEC UL	Switch On-Off	0.039 in	1 mm	27.6 mm	57 mm	Panel Mount Snap-In
SCHURTER Inc. 6424.0253.25	10 A	250 VAC	Fuse Holder	6.3 mm	Quick Connect	0.25 "	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Receptacle Male Blades - Module	CSA ENEC UL	Switch On-Off	0.098 in	2.5 mm	27.6 mm	57 mm	Panel Mount Snap-In
SCHURTER Inc. 6424.0253.30	10 A	250 VAC	Fuse Holder	6.3 mm	Quick Connect	0.25 "	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Receptacle Male Blades - Module	CSA ENEC UL	Switch On-Off	0.118 "	3 mm	27.6 mm	57 mm	Panel Mount Snap-In

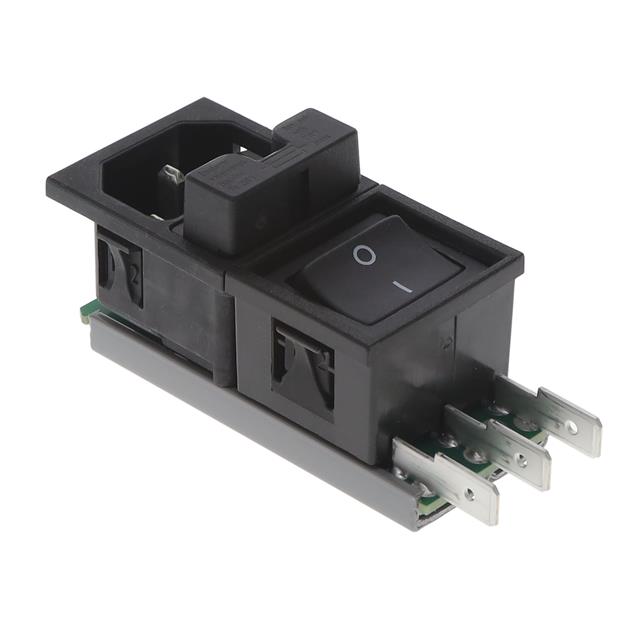

SCHURTER Inc. 6424.0253.12	10 A	250 VAC	Fuse Holder	6.3 mm	Quick Connect	0.25 "	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Receptacle Male Blades - Module	CSA ENEC UL	Switch On-Off	0.047 "	1.2 mm	27.6 mm	57 mm	Panel Mount Snap-In
