SDR2207 Series

Catalog

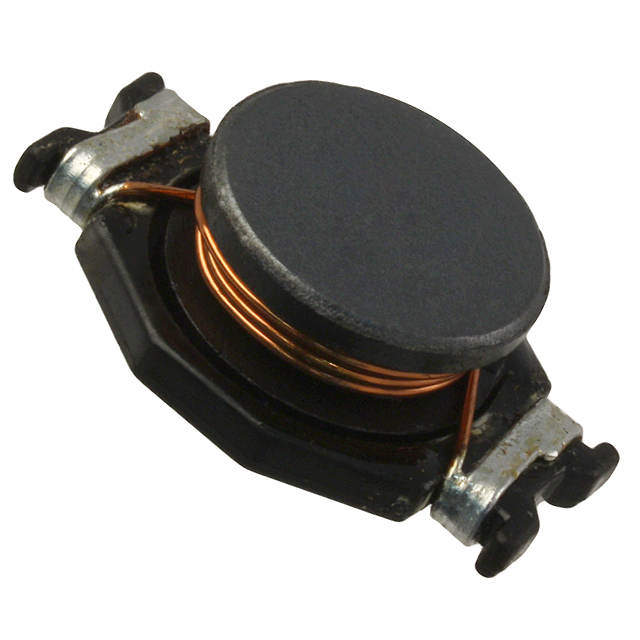

POWER INDUCTOR (SMD), 4.7 ΜH, 8.5 A, UNSHIELDED, 15 A, SDR2207 SERIES

Part	Type	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Inductance	Height - Seated (Max)	Height - Seated (Max) [Max]	Current Rating (Amps)	Q @ Freq	Frequency - Self Resonant	Tolerance	Package / Case	Mounting Type	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]
Bourns Inc. SDR2207-4R7ML	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm	8.8 mOhm	Unshielded	125 °C	-40 C	15 A	4.7 ÁH	7.8 mm	0.307 in	8.5 A	3 MHz 38	33 MHz	20 %	Nonstandard	Surface Mount	100 kHz
Bourns Inc. SDR2207-271KL	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm	470 mOhm	Unshielded	125 °C	-40 C	2.2 A	270 µH	7.8 mm	0.307 in	1.1 A		5.3 MHz	10 %	Nonstandard	Surface Mount	100 kHz	2 MHz	17
Bourns Inc. SDR2207-330K	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	5.5 A	33 µH	7.8 mm	0.307 in	3.4 A		11 MHz	10 %	Nonstandard	Surface Mount	100 kHz		27	3 MHz	58.4 mOhm
Bourns Inc. SDR2207-100M	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm	17.2 mOhm	Unshielded	125 °C	-40 C	10 A	10 µH	7.8 mm	0.307 in	6.5 A	5 MHz 53	20 MHz	20 %	Nonstandard	Surface Mount	100 kHz
Bourns Inc. SDR2207-470KL	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	5 A	47 µH	7.8 mm	0.307 in	2.8 A		9 MHz	10 %	Nonstandard	Surface Mount	100 kHz		27	3 MHz	91.2 mOhm
Bourns Inc. SDR2207-2R7ML	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	20 A	2.7 µH	7.8 mm	0.307 in	10 A	3 MHz 38	51 MHz	20 %	Nonstandard	Surface Mount	100 kHz				7 mOhm
Bourns Inc. SDR2207-1R2ML	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	30 A	1.2 µH	7.8 mm	0.307 in	15 A	3 MHz 30		20 %	Nonstandard	Surface Mount	100 kHz				3.8 mOhm
Bourns Inc. SDR2207-150YL	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	9 A	15 µH	7.8 mm	0.307 in	5 A	5 MHz 38	16 MHz	15 %	Nonstandard	Surface Mount	100 kHz				28.8 mOhm
Bourns Inc. SDR2207-220YL	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	6.5 A	22 µH	7.8 mm	0.307 in	4 A		14 MHz	15 %	Nonstandard	Surface Mount	100 kHz		27	3 MHz	39.4 mOhm
Bourns Inc. SDR2207-8R2ML	Drum Core Wirewound	Ferrite	0.591 in	0.866 "	15 mm	22 mm		Unshielded	125 °C	-40 C	11 A	8.2 µH	7.8 mm	0.307 in	7 A	3 MHz 35	25 MHz	20 %	Nonstandard	Surface Mount	100 kHz				15.5 mOhm
