FGJ.1B Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG FMALE 10P SOLDER CUP
| Part | Mounting Type | Contact Finish - Mating | Cable Opening [custom] | Cable Opening [custom] | Color | Contact Material | Material Flammability Rating | Primary Material | Current Rating (Amps) | Shielding | Insert Material | Fastening Type | Features | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Orientation | Shell Size - Insert | Shell Material | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Termination | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Gold | 0.244 in 0.283 in | 6.2 mm 7.2 mm | Silver | Bronze | UL94 V-0 | Metal | 2.5 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 10 | 59 Áin | 1.5 Ám | IP50 | J | 310 | Brass | Female Sockets Plug | ||||||||||

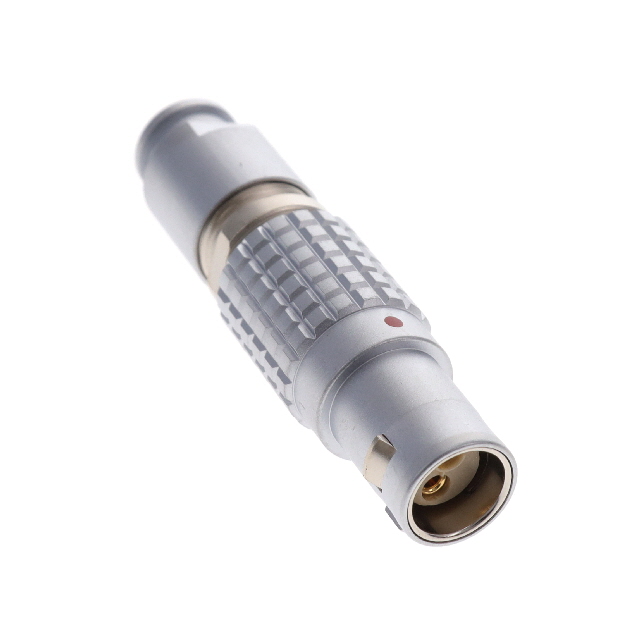

Free Hanging (In-Line) | Gold | Silver | Bronze | UL94 V-0 | Metal | 15 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 2 | 59 Áin | 1.5 Ám | IP50 | J | 302 | Brass | Female Sockets Plug | 3.1 mm 4.2 mm | 0.122 in 0.165 in | ||||||||||

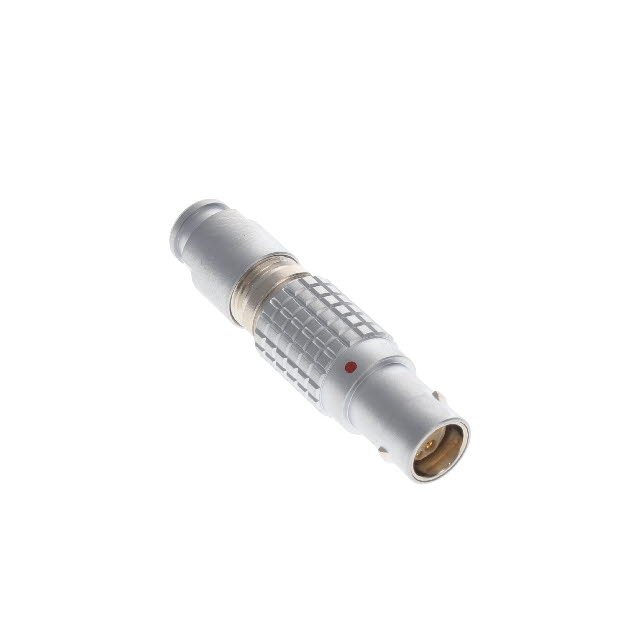

Free Hanging (In-Line) | Gold | Silver | Bronze | UL94 V-0 | Metal | 7 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 6 | 59 Áin | 1.5 Ám | IP50 | J | 306 | Brass | Female Sockets Plug | 6.2 mm | 5.2 mm | 0.205 in | 0.244 in | ||||||||
Free Hanging (In-Line) | Gold | 0.244 in 0.283 in | 6.2 mm 7.2 mm | Silver | Bronze | UL94 V-0 | Metal | 12 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 59 Áin | 1.5 Ám | IP50 | J | 303 | Brass | Female Sockets Plug | Crimp | ||||||||||
Free Hanging (In-Line) | Gold | 0.244 in 0.283 in | 6.2 mm 7.2 mm | Silver | Bronze | UL94 V-0 | Metal | 12 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 59 Áin | 1.5 Ám | IP50 | J | 303 | Brass | Female Sockets Plug | |||||||||||
Free Hanging (In-Line) | Gold | Silver | Bronze | UL94 V-0 | Metal | 2.5 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 10 | 59 Áin | 1.5 Ám | IP50 | J | 310 | Brass | Female Sockets Plug | 4.2 mm | 0.165 in 0.205 in | 5.2 mm | |||||||||
Free Hanging (In-Line) | Gold | 0.244 in 0.283 in | 6.2 mm 7.2 mm | Silver | Bronze | UL94 V-0 | Metal | 15 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 2 | 59 Áin | 1.5 Ám | IP50 | J | 302 | Brass | Female Sockets Plug | ||||||||||
Free Hanging (In-Line) | Gold | Silver | Bronze | UL94 V-0 | Metal | 5 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 8 | 59 Áin | 1.5 Ám | IP50 | J | 308 | Brass | Female Sockets Plug | 4.2 mm | Crimp | 0.165 in 0.205 in | 5.2 mm | ||||||||
Free Hanging (In-Line) | Gold | Silver | Bronze | UL94 V-0 | Metal | 7 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 7 | 59 Áin | 1.5 Ám | IP50 | J | 307 | Brass | Female Sockets Plug | 4.2 mm | 0.165 in 0.205 in | 5.2 mm | |||||||||
Free Hanging (In-Line) | Gold | Silver | Bronze | UL94 V-0 | Metal | 9 A | Shielded | Polyetheretherketone (PEEK) | Push-Pull | Backshell | Chrome | -55 °C | 250 °C | Brass Chrome | 59 Áin | 1.5 Ám | IP50 | J | 305 | Brass | Female Sockets Plug | 4.2 mm | Crimp | 0.165 in 0.205 in | 5.2 mm |
