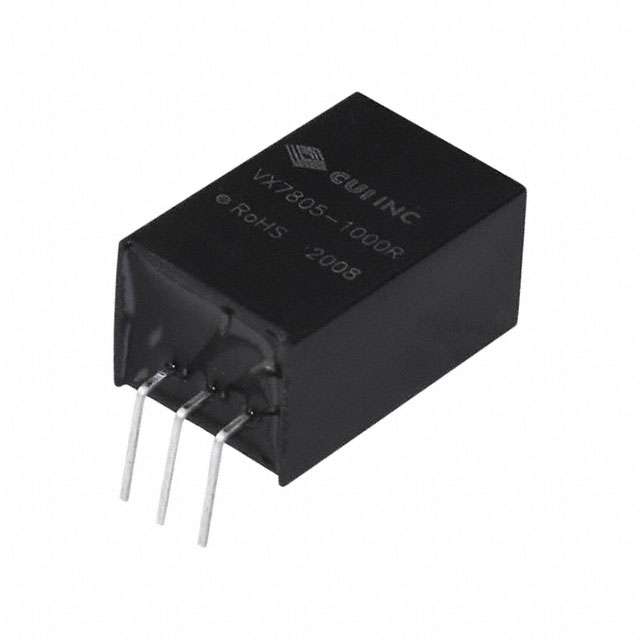

VX7805 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER +/-5V 7.5W
| Part | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Number of Outputs | Voltage - Output 1 | Standard Number | Current - Output (Max) | Current - Output (Max) | Power (Watts) | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Type | Efficiency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 36 V | Right Angle Through Hole | 8 V | -40 °C | 85 °C | CB Scheme EN IEC UL | 1 | -5 V 5 V | 55024 55032 Class A 60950-1 | 1 A | 500 mA | 5 W | ITE (Commercial) | 11.5 mm | 0.35 in | 0.45 in | 0.69 in | 9 mm | 17.5 mm | Non-Isolated PoL Module | 93 % | 3-SIP Module |
