191-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K

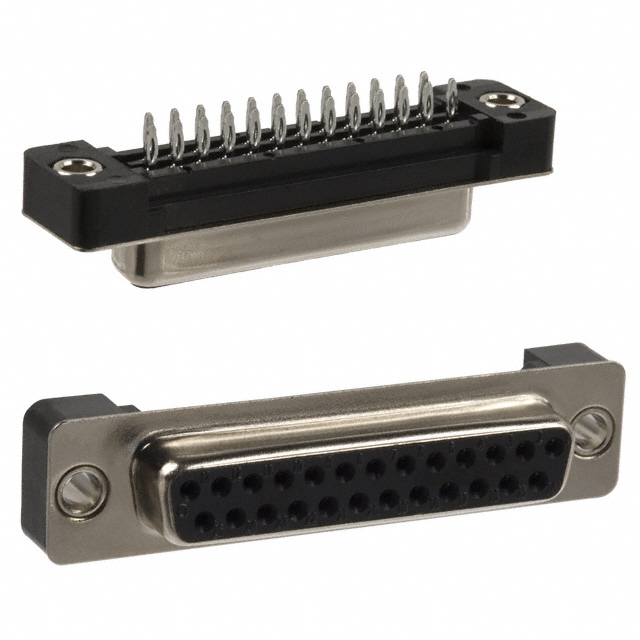

D SUB CONNECTOR, DB25, 25 CONTACTS, RECEPTACLE, THROUGH HOLE, DB, 191 SERIES, STEEL BODY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Connector Style | Connector Type | Contact Finish Thickness | Number of Rows [custom] | Flange Feature | Flange Feature | Mounting Type | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Current Rating (Amps) | Termination | Shell Material, Finish | Features | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Phosphor Bronze | D-Sub | Receptacle Female Sockets | Flash | 2 | Housing/Shell | 4-40 | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Board Lock Shielded | 25 | Signal |
 NorComp Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | Phosphor Bronze | D-Sub | Receptacle Female Sockets | Flash | 2 | Housing/Shell (Unthreaded) | Panel Mount | UL94 V-0 | B DB | 3 | Gold | 5 A | Press-Fit | Nickel Plated Steel | Shielded | 25 | Signal | |
NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Phosphor Bronze | D-Sub | Receptacle Female Sockets | Flash | 2 | Housing/Shell | 4-40 | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Shielded | 25 | Signal |
NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Brass | D-Sub | Plug Male Pins | Flash | 2 | Housing/Shell | 4-40 | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Grounding Indents | 25 | Signal |
NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Phosphor Bronze | D-Sub | Receptacle Female Sockets | Flash | 2 | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | 25 | Signal | ||
 NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Brass | D-Sub | Plug Male Pins | Flash | 2 | Housing/Shell | 4-40 | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Board Lock Grounding Indents Shielded | 25 | Signal |
NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Phosphor Bronze | D-Sub | Receptacle Female Sockets | Flash | 2 | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Shielded | 25 | Signal | |
NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Brass | D-Sub | Plug Male Pins | Flash | 2 | Housing/Shell (Unthreaded) | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Grounding Indents Shielded | 25 | Signal | |
NorComp Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Brass | D-Sub | Plug Male Pins | Flash | 2 | Housing/Shell (Unthreaded) | Panel Mount Through Hole | UL94 V-0 | B DB | 3 | Gold | 5 A | Solder | Nickel Plated Steel | Grounding Indents | 25 | Signal |
