892-034 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 34POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Color	Gender	Pitch	Pitch	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Card Type	Number of Positions [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Contact Material	Termination	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Features
EDAC Inc. 892-034-541-204	Polyphenylene Sulfide (PPS)	2	Black	Female	0.1 "	2.54 mm	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Through Hole	Gold	17	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Dual Edge	34	125 °C	-40 C	2	Copper Alloy	Wire Wrap

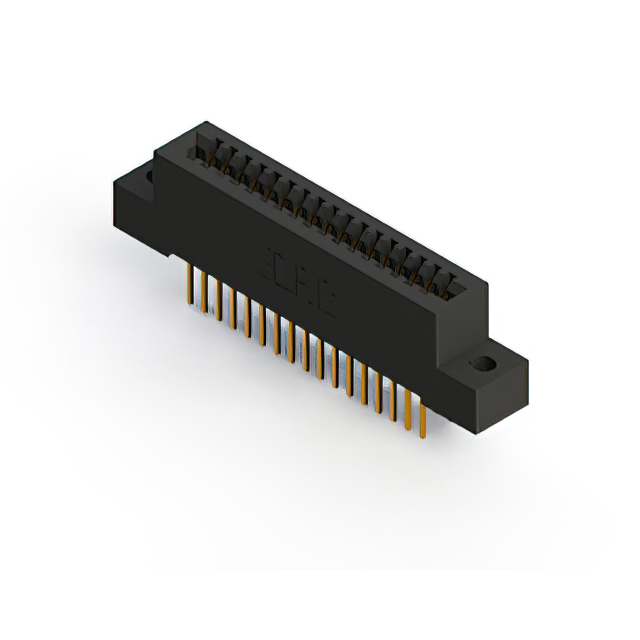

EDAC Inc. 892-034-542-202	Polyphenylene Sulfide (PPS)	2	Black	Female	0.1 "	2.54 mm	Dual	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Through Hole	Gold	17	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Dual Edge	34	125 °C	-40 C	2	Copper Alloy	Wire Wrap

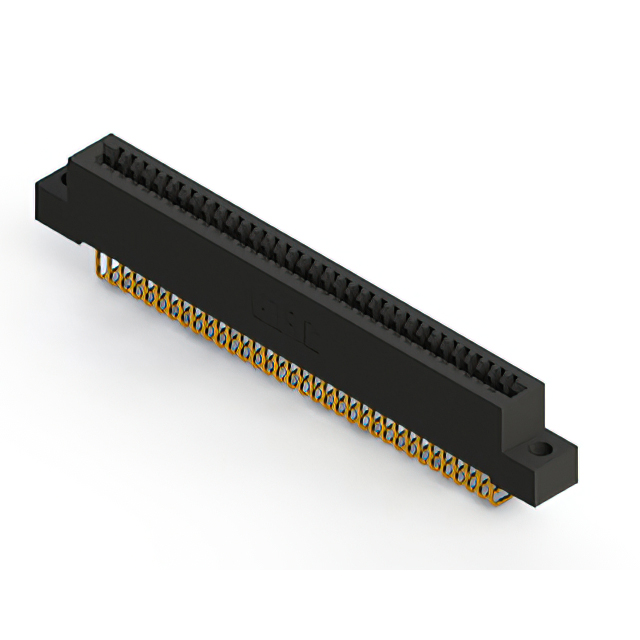

EDAC Inc. 892-034-558-104	Polyphenylene Sulfide (PPS)		Black	Female	0.1 "	2.54 mm	Single	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Right Angle Through Hole	Gold		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	34	125 °C	-40 C		Copper Alloy	Solder	1	1	34

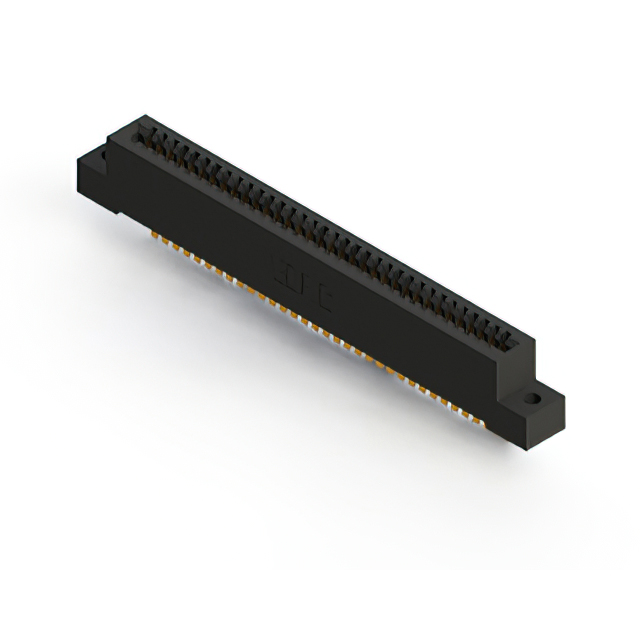

EDAC Inc. 892-034-544-102	Polyphenylene Sulfide (PPS)		Black	Female	0.1 "	2.54 mm	Single	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Through Hole	Gold		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	34	125 °C	-40 C		Copper Alloy	Wire Wrap	1	1	34

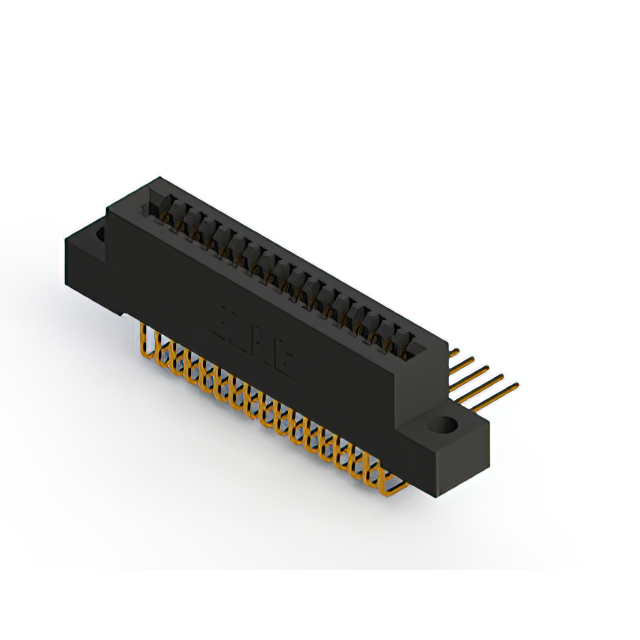

EDAC Inc. 892-034-558-204	Polyphenylene Sulfide (PPS)	2	Black	Female	0.1 "	2.54 mm	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Right Angle Through Hole	Gold	17	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Dual Edge	34	125 °C	-40 C	2	Copper Alloy	Solder
EDAC Inc. 892-034-558-103	Polyphenylene Sulfide (PPS)		Black	Female	0.1 "	2.54 mm	Single	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Right Angle Through Hole	Gold		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	34	125 °C	-40 C		Copper Alloy	Solder	1	1	34

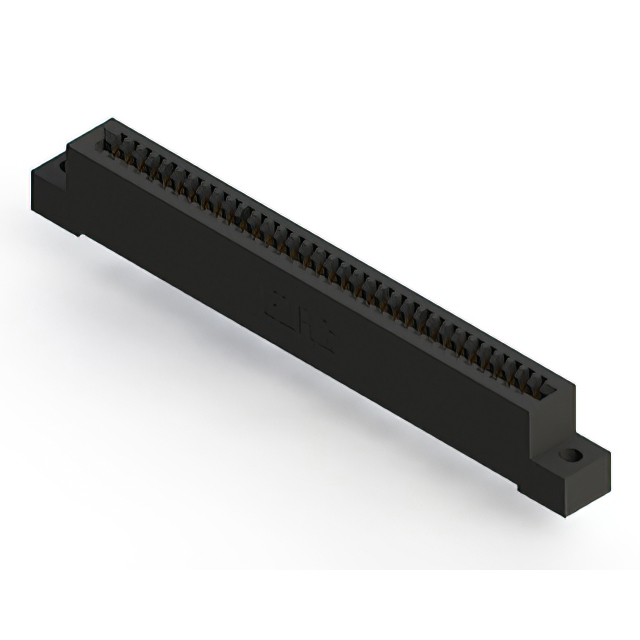

EDAC Inc. 892-034-524-102	Polyphenylene Sulfide (PPS)		Black	Female	0.1 "	2.54 mm	Single	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Through Hole	Gold		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	34	125 °C	-40 C		Copper Alloy	Solder	1	1	34

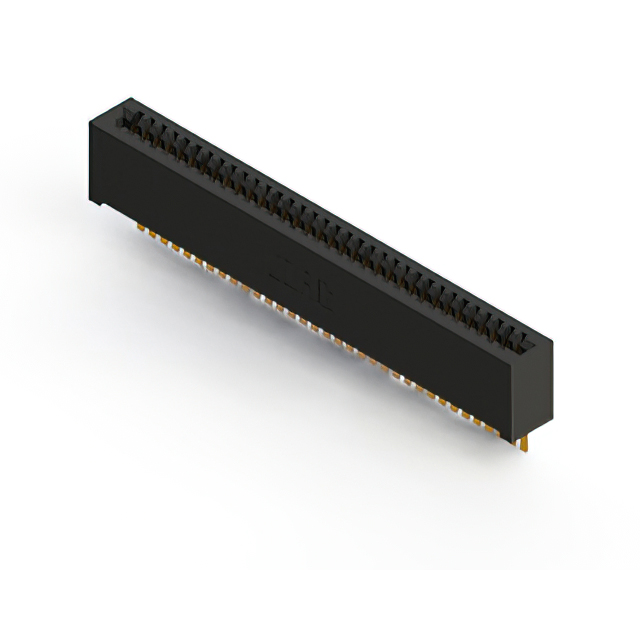

EDAC Inc. 892-034-544-101	Polyphenylene Sulfide (PPS)		Black	Female	0.1 "	2.54 mm	Single				Through Hole	Gold		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	34	125 °C	-40 C		Copper Alloy	Wire Wrap	1	1	34

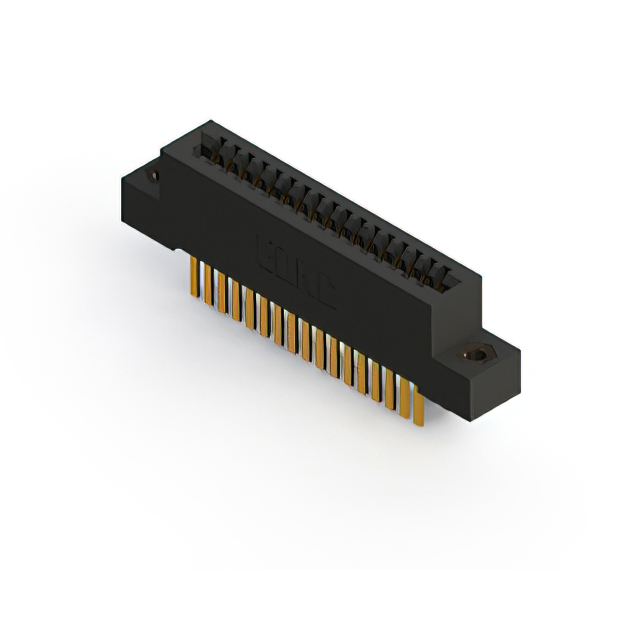

EDAC Inc. 892-034-544-207	Polyphenylene Sulfide (PPS)	2	Black	Female	0.1 "	2.54 mm	Dual	Flush Mount M3 Threaded Insert Top Opening			Through Hole	Gold	17	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Dual Edge	34	125 °C	-40 C	2	Copper Alloy	Wire Wrap

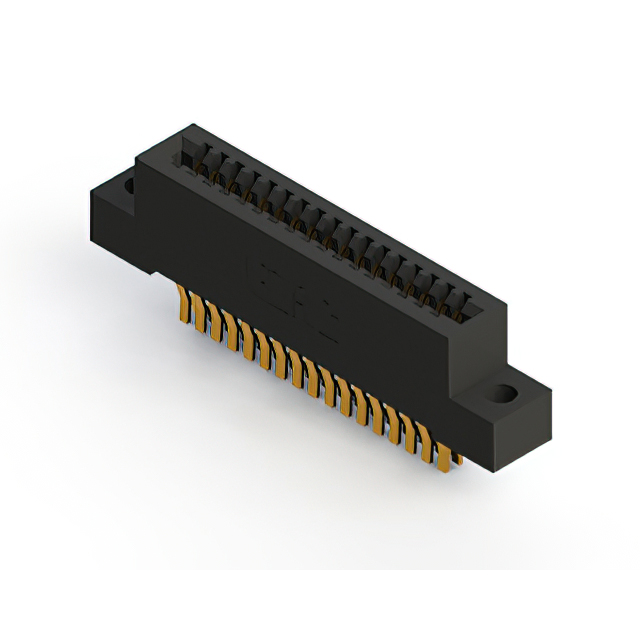

EDAC Inc. 892-034-560-204	Polyphenylene Sulfide (PPS)	2	Black	Female	0.1 "	2.54 mm	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Board Edge Straddle Mount	Gold	17	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Dual Edge	34	125 °C	-40 C	2	Copper Alloy	Solder				Card Extender
