12F10EGY Series
Manufacturer: Yuan Dean
Catalog

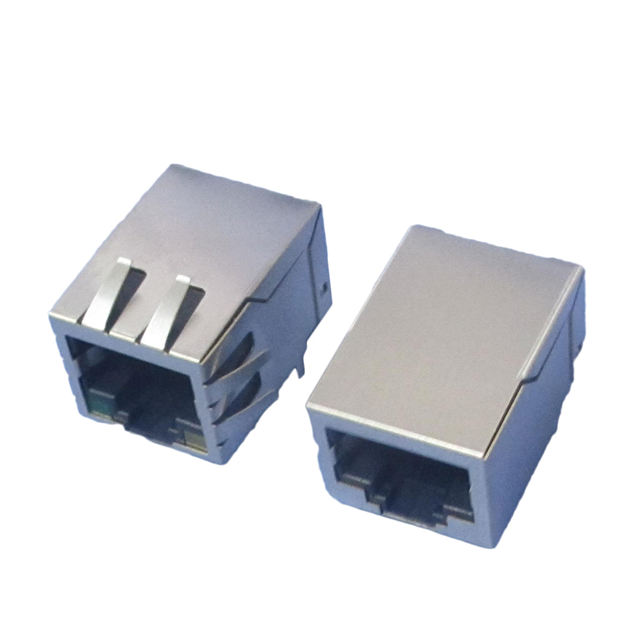

CONN RJ45 JACK W/MAG
| Part | LED Color | Connector Type | Contact Material | Applications | Shielding | Height Above Board | Mounting Type | Number of Cores per Jack | Features | Contact Finish | Termination | Number of Rows | Orientation Angle | Orientation Direction | Tab Direction | Number of Ports | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish Thickness | Housing Material | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Yuan Dean | Yellow - Green | Jack | Phosphor Bronze | 10 Base-T AutoMDIX | Shielded | 0.545 in | Through Hole | 4 | Solder Retention | Gold | Solder | 1 | 90 ° | Right | Down | 1 | 70 °C | 0 °C | 6 µin | Glass Filled Nylon PA Polyamide | Brass Nickel Coated |
