09300241 Series

Manufacturer: HARTING

Catalog

CONN BASE SIDE ENTRY SZ6B PG21

Part	Style	Lock Location	Size	Thread Size	Connector Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Ingress Protection	Size	Housing Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Gender	Includes	Frame Type	Features
HARTING 09300241298	Side Entry	Locking Clip (1) on Base Bottom	6B	PG21	Base - Box Mount	2.197 in	5.669 in	55.8 mm	2.244 "	144 mm	57 mm
HARTING 09300241543	Side Entry	Locking Clip (1) on Base Bottom	6B	PG21	Hood	2.461 "	4.724 in		1.693 "	120 mm		43 mm	62.5 mm
HARTING 09300241260	Side Entry	Locking Clip (2) on Hood		PG21	Base - Box Mount	2.205 "	5.669 in		2.244 "	144 mm		57 mm	56 mm	IP65 - Dust Tight Water Resistant	24 B	Aluminum Die Cast	Gray	125 °C	-40 C	Powder Coated

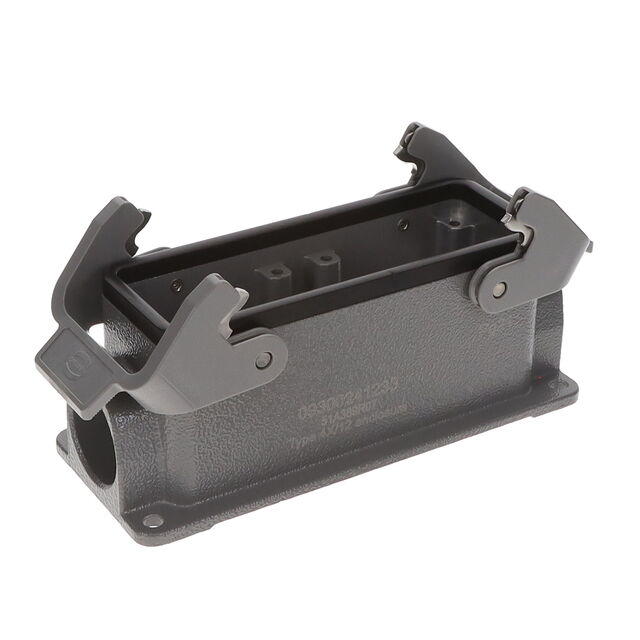

HARTING 09300241233	Side Entry	Locking Clip (2) on Base Bottom		PG21	Base - Box Mount	2.197 in	5.669 in	55.8 mm	2.244 "	144 mm	57 mm				24 B
HARTING 09300241230	Side Entry	Locking Clip (2) on Base Bottom		PG21	Base - Box Mount	2.205 "	5.669 in		2.244 "	144 mm		57 mm	56 mm	IP65 - Dust Tight Water Resistant	24 B	Aluminum Die Cast	Gray	125 °C	-40 C	Powder Coated

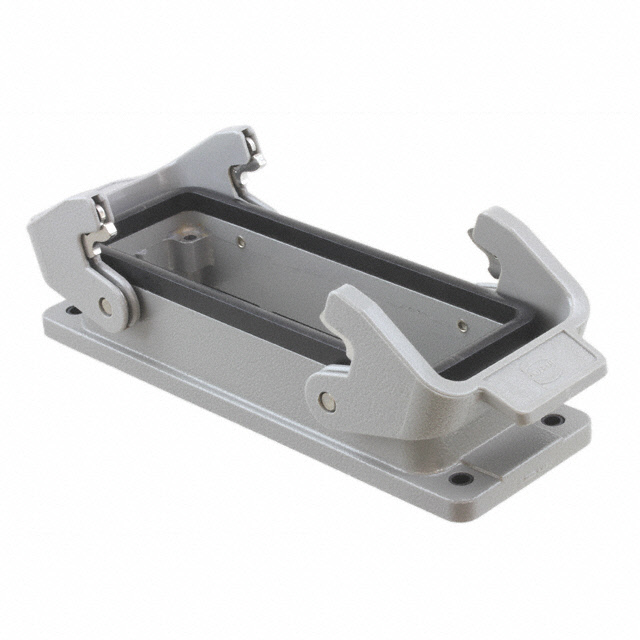

HARTING 09300241301	Bottom Entry	Locking Clip (2) on Base Bottom			Base - Panel Mount	1.197 in	5.709 "		1.906 "	145 mm		48.4 mm	30.4 mm	IP65 IP67	24 B	Aluminum Die Cast	Gray	125 °C	-40 C	Powder Coated
HARTING 09300241670

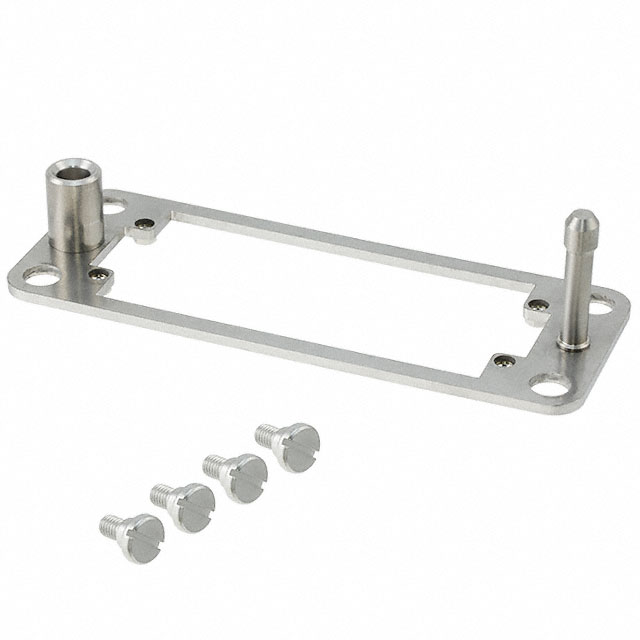

HARTING 09300241702															24 B						Non-Gendered	1 Frame 4 Screws	Fixed Frame
HARTING 09300241270	Side Entry	Locking Clip (2) on Base Bottom		PG21	Base - Box Mount	2.205 "	5.669 in		2.244 "	144 mm		57 mm	56 mm	IP65 - Dust Tight Water Resistant	24 B	Aluminum Die Cast	Gray	125 °C	-40 C	Powder Coated				Feed Through
HARTING 09300241751	Bottom Entry Top or Bottom Entry	Locking Clip (1) on Hood Top		PG29	Hood - Coupling	2.26 in	4.724 in		1.693 "	120 mm		43 mm	57.4 mm	IP65 - Dust Tight Water Resistant	24 B	Aluminum Die Cast	Gray	125 °C	-40 C	Powder Coated				Cable to Cable
