202A174 Series

Catalog

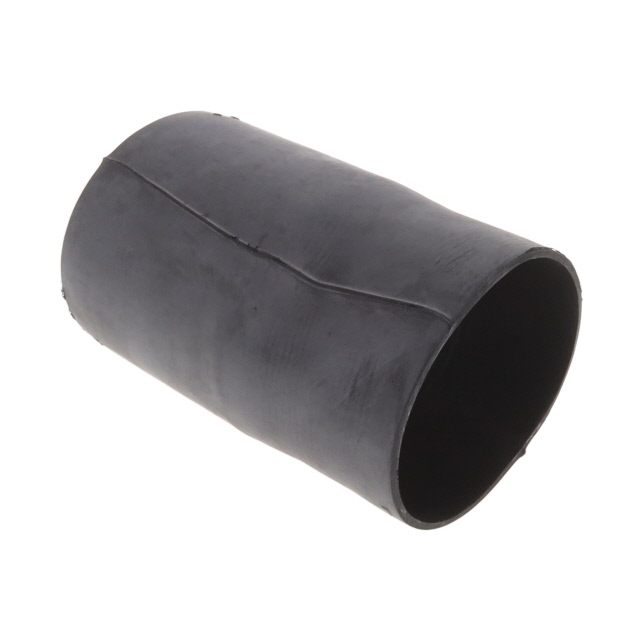

HEATSHRINK BOOT SZ74 BLACK

Part	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Material	Small Recovered Length [x]	Small Recovered Length [x]	Features	Total Length Recovered	Total Length Recovered	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Type	Color	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Shell Size - Insert
TE Connectivity Aerospace, Defense and Marine 202A174-4-00/42-0	1.39 in	35.31 mm	Polyolefin (PO) Flexible	50.8 mm	2 in	Adhesive Coating Flame Retardant Potting (Injection) Port	5.13 in	130.3 mm	16 mm	0.63 "	51.79 mm	2.039 in	Boot	Black	51.79 mm	2.039 in	64.8 mm	2.551 in	74
TE Connectivity Aerospace, Defense and Marine 202A174-4/86-0	1.39 in	35.31 mm	Polyolefin (PO) Flexible	50.8 mm	2 in	Adhesive Coating Flame Retardant	5.13 in	130.3 mm	16 mm	0.63 "	51.79 mm	2.039 in	Boot	Black	51.79 mm	2.039 in	64.8 mm	2.551 in	74
TE Connectivity Aerospace, Defense and Marine 202A174-3-0	1.39 in	35.31 mm	Polyolefin (PO) Semi-Rigid	50.8 mm	2 in	Flame Retardant	5.13 in	130.3 mm	16 mm	0.63 "	51.79 mm	2.039 in	Boot	Black	51.79 mm	2.039 in	64.8 mm	2.551 in	74
TE Connectivity Aerospace, Defense and Marine 202A174-3-00-0	1.39 in	35.31 mm	Polyolefin (PO) Semi-Rigid	50.8 mm	2 in	Flame Retardant Potting (Injection) Port	5.13 in	130.3 mm	16 mm	0.63 "	51.79 mm	2.039 in	Boot	Black	51.79 mm	2.039 in	64.8 mm	2.551 in	74
