TB67S512 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
IC MOTOR DRIVER 36WQFN
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Motor Type - Stepper | Interface | Step Resolution | Step Resolution | Package / Case | Function | Applications | Current - Output | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Motor Type - AC, DC | Technology | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

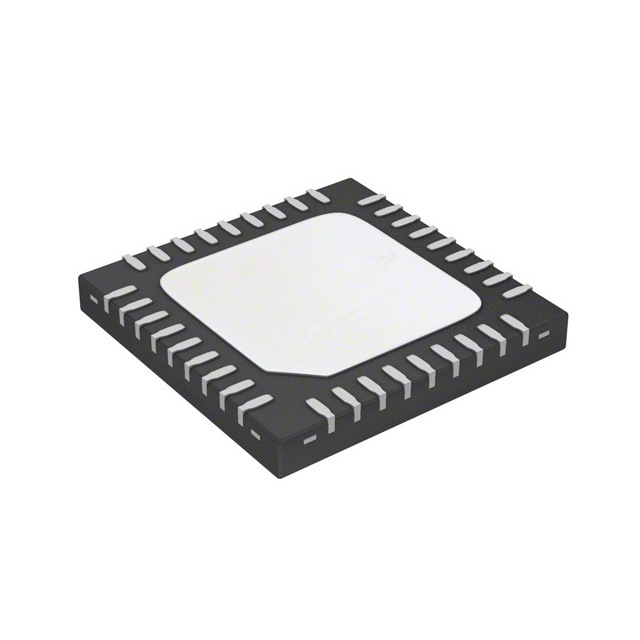

 Toshiba Semiconductor and Storage | 5.5 V | 2 V | Bipolar | PWM | 1/2 1/4 | 1 | 36-WFQFN Exposed Pad | Driver - Fully Integrated Control and Power Stage | General Purpose | 2 A | Half Bridge (4) | 85 C | -20 °C | Surface Mount | 10 V | 35 V | Brushed DC | Power MOSFET | 36-WQFN (6x6) |
