1969589 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

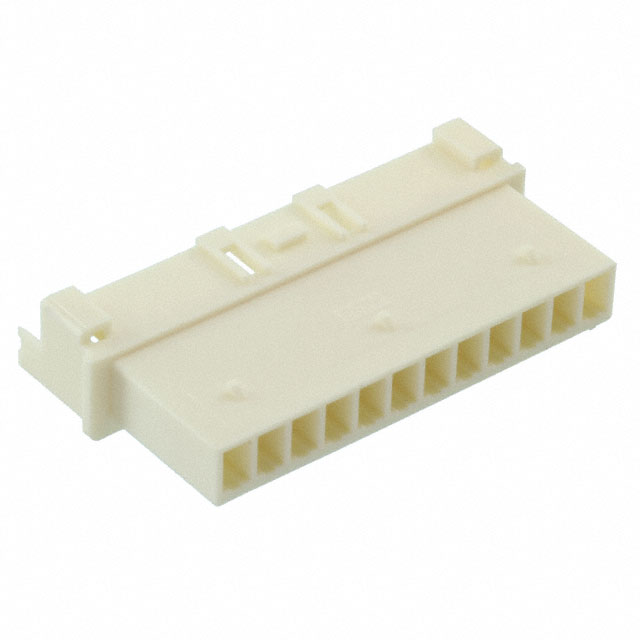

CONN RCPT HSG 10POS 2.50MM
| Part | Number of Positions | Contact Type | Pitch [x] | Pitch [x] | Note | Connector Type | Fastening Type | Contact Termination | Number of Rows | Features | Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |

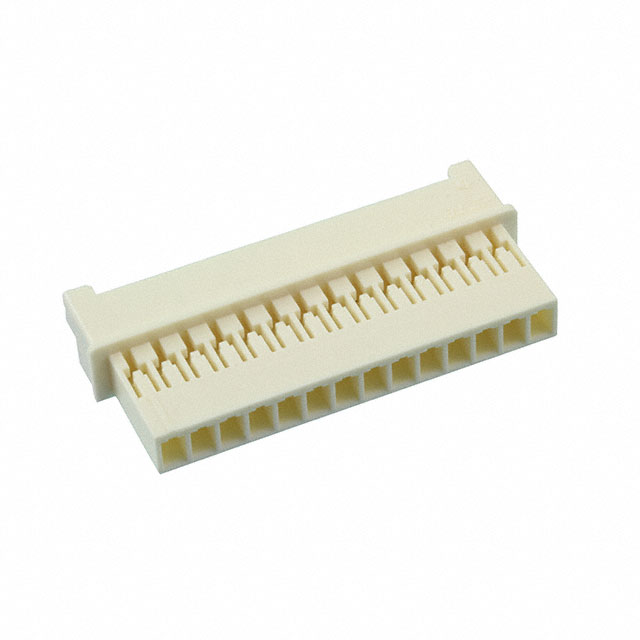

 TE Connectivity Raychem Cable Protection | 14 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |
 TE Connectivity Raychem Cable Protection | 2 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |

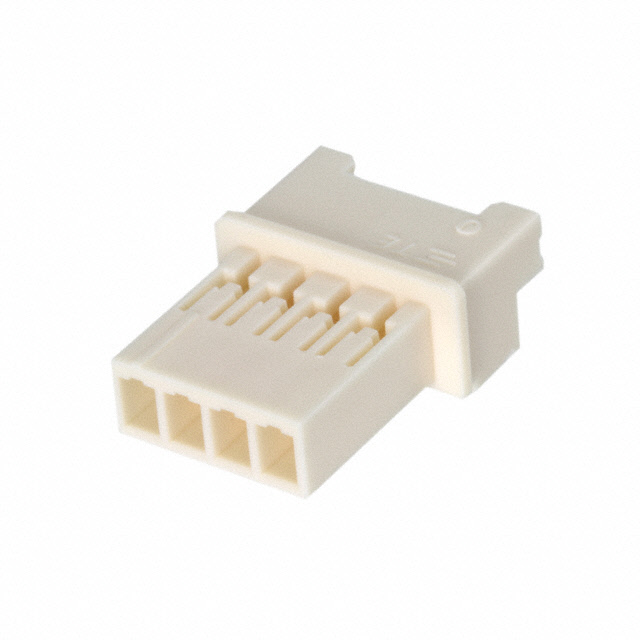

 TE Connectivity Raychem Cable Protection | 4 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |

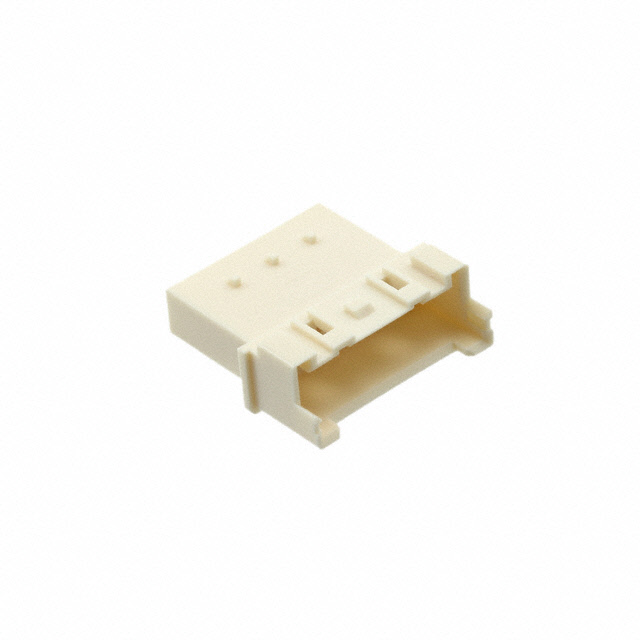

 TE Connectivity Raychem Cable Protection | 6 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |
 TE Connectivity Raychem Cable Protection | 12 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |

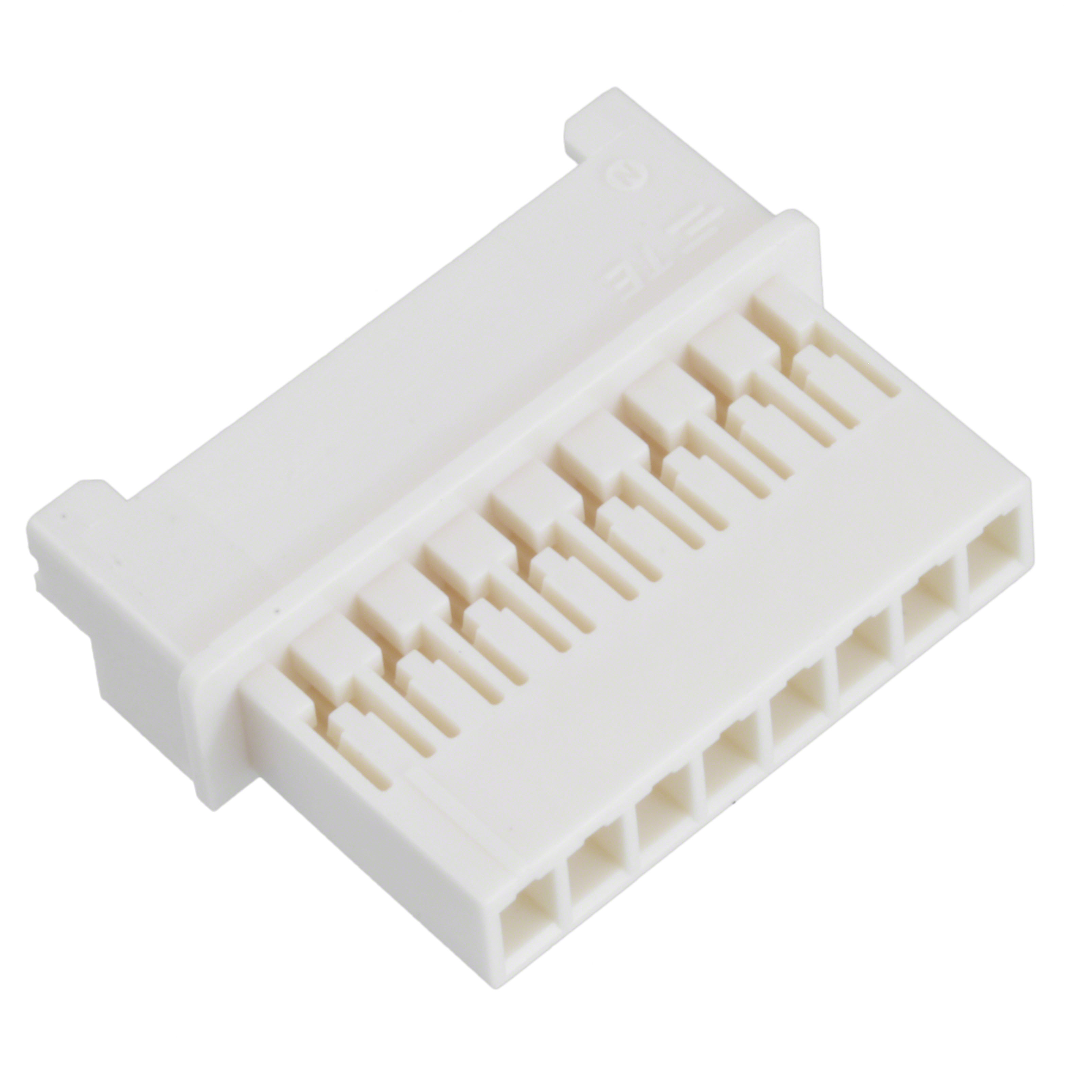

 TE Connectivity Raychem Cable Protection | 8 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |
 TE Connectivity Raychem Cable Protection | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | |

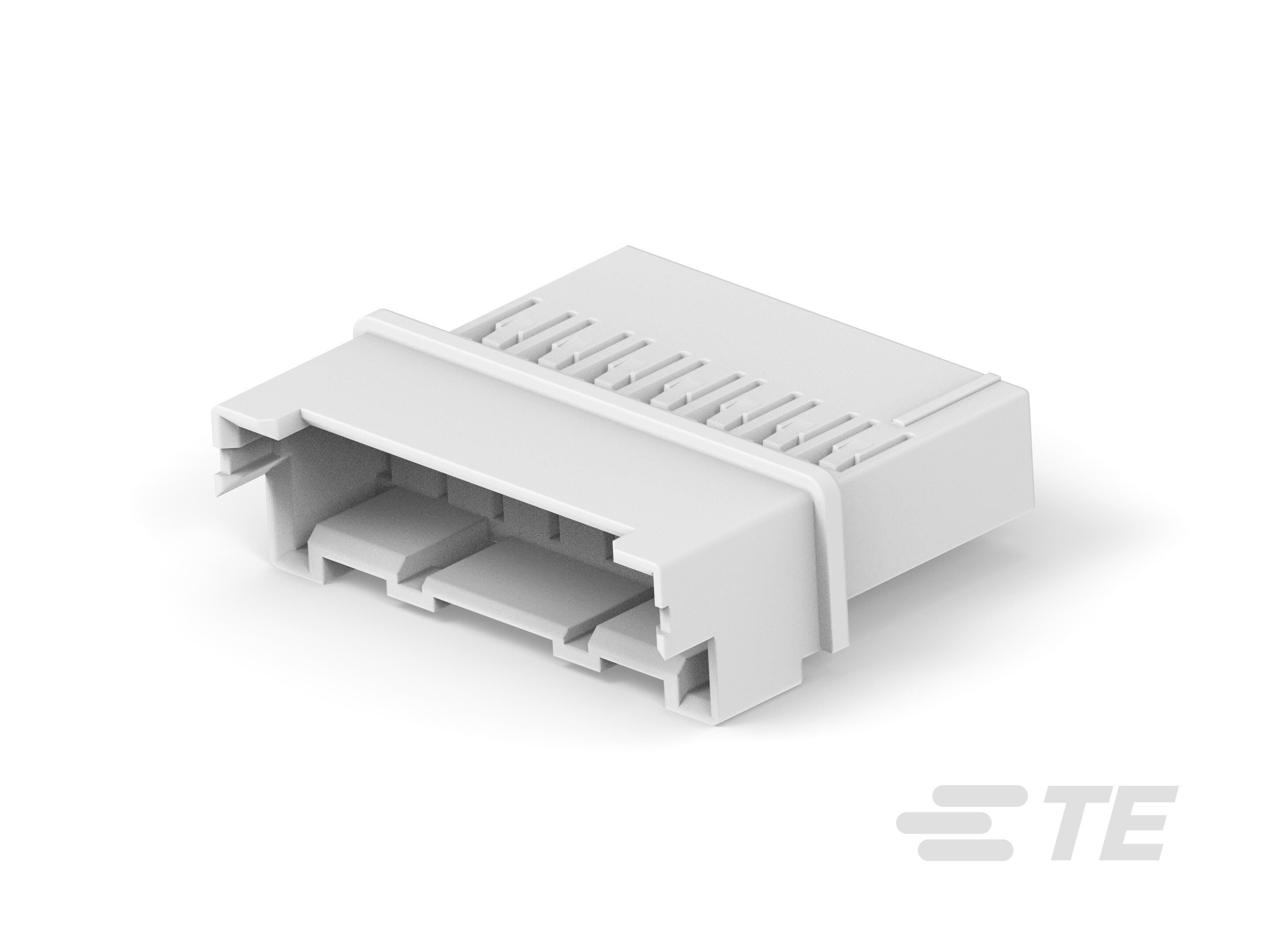

 TE Connectivity Raychem Cable Protection | 7 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |

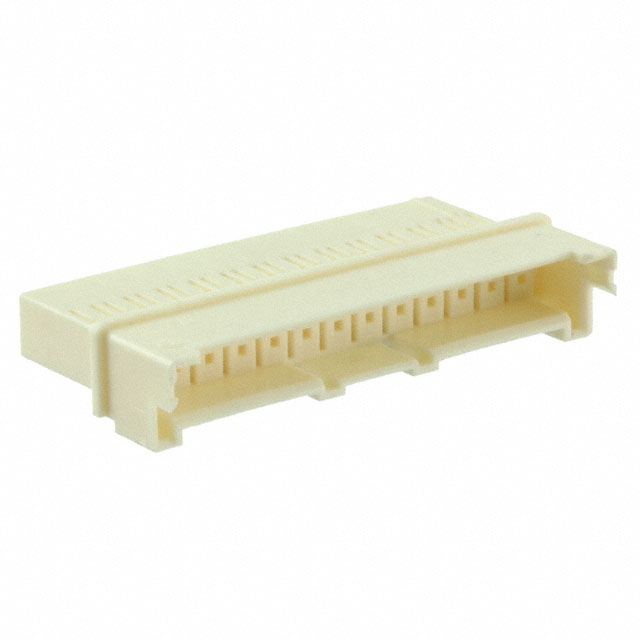

 TE Connectivity Raychem Cable Protection | 13 | Male Pin | 0.098 in | 2.5 mm | Contacts Not Included | Receptacle | Latch Holder | Crimp | 1 | Glow Wire Compliant | Natural | -25 °C | 105 ░C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) |
