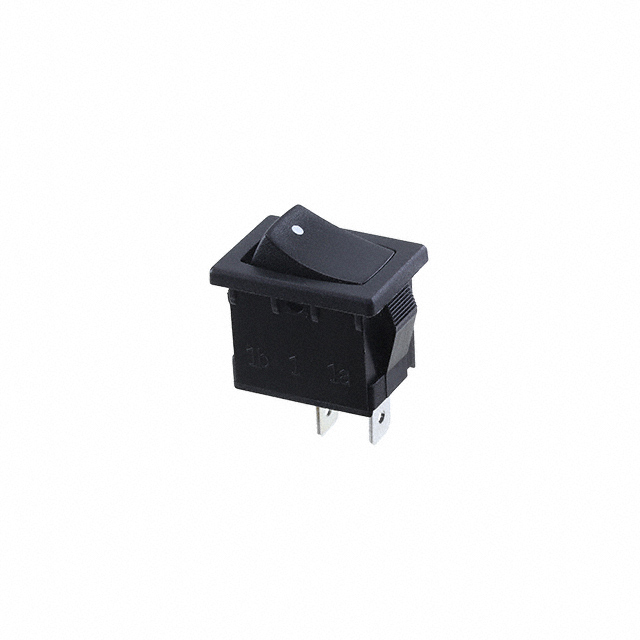

R1966FBL Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPST-NO 15A 125V

Part	Mechanical Life	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Actuator Type	Voltage Rating - AC	Circuit	Color - Actuator/Cap	Actuator Marking	Switch Function	Mounting Type	Current Rating (Amps)
E-Switch R1966FBLKBLKAG	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Black	Dot	Off-Mom	Panel Mount Snap-In	15 A

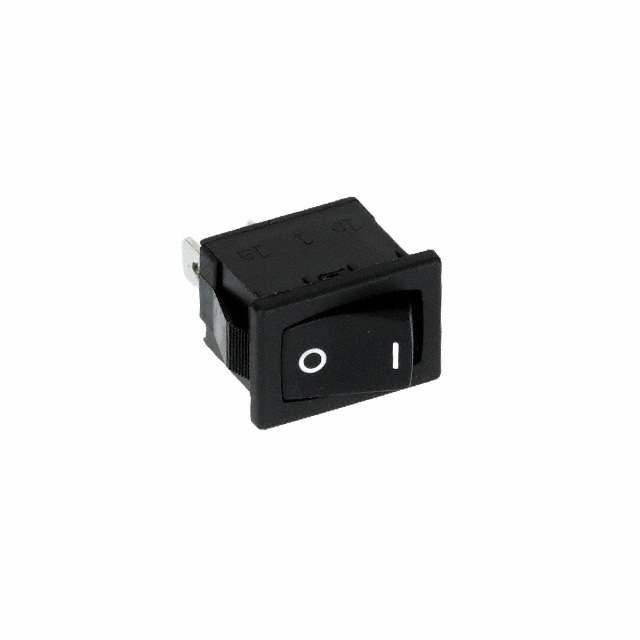

E-Switch R1966FBLKBLKGF	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Black	O I	Off-Mom	Panel Mount Snap-In	15 A

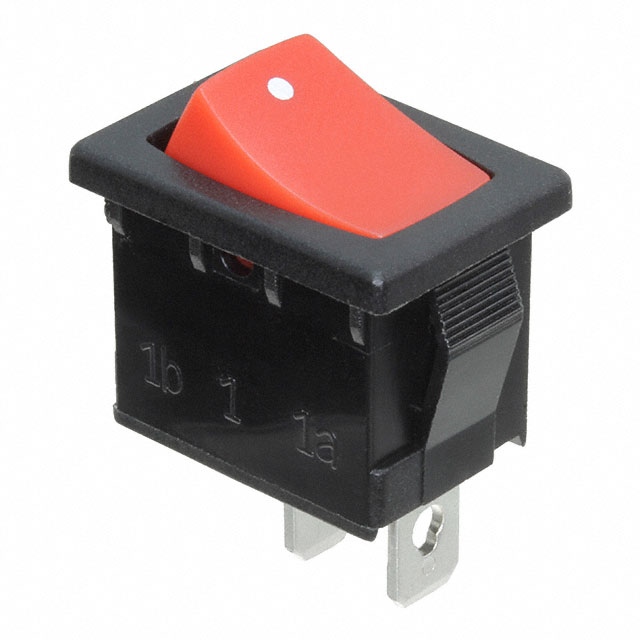

E-Switch R1966FBLKREDAF	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Red	Dot	Off-Mom	Panel Mount Snap-In	15 A

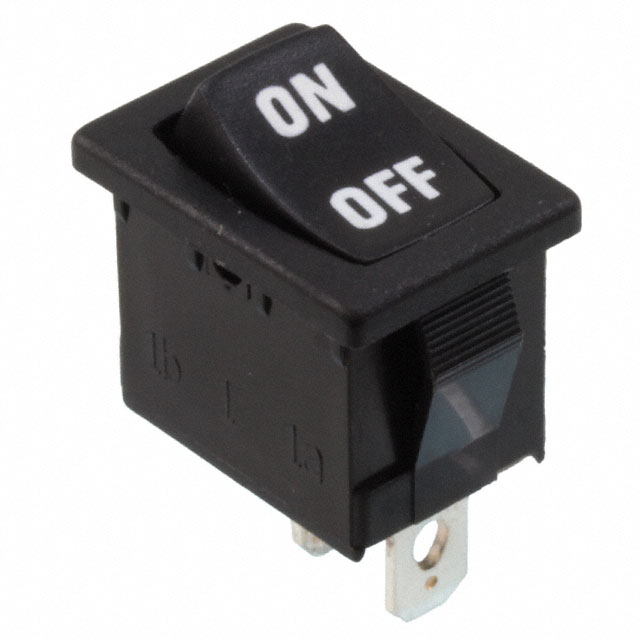

E-Switch R1966FBLKBLKIF	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Black	ON OFF	Off-Mom	Panel Mount Snap-In	15 A

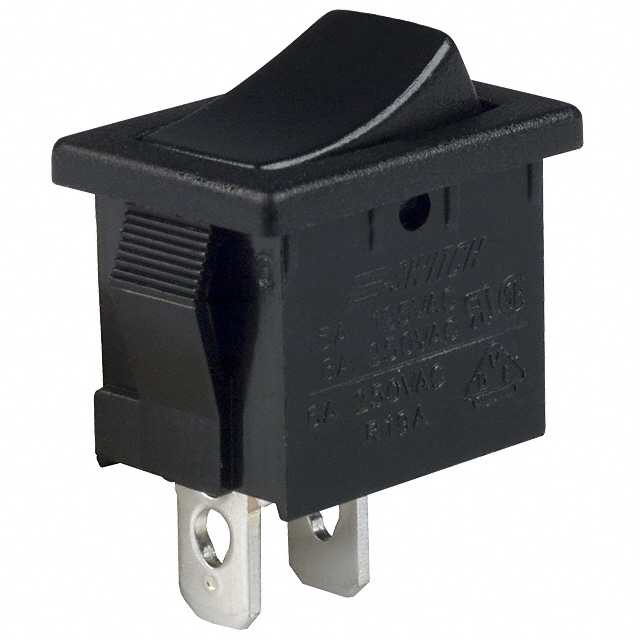

E-Switch R1966FBLKBLKEF	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Black	No Marking	Off-Mom	Panel Mount Snap-In	15 A
E-Switch R1966FBLKBLKFF	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Black	O -	Off-Mom	Panel Mount Snap-In	15 A

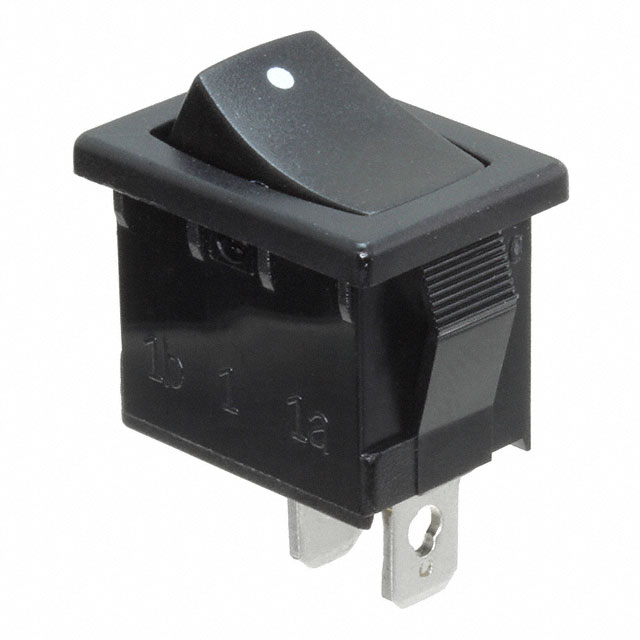

E-Switch R1966FBLKBLKAF	30000 Steps	10000 Cycles	-30 ░C	65 °C	19.4 mm	13 mm	Quick Connect	Concave (Curved)	125 V	SPST-NO	Black	Dot	Off-Mom	Panel Mount Snap-In	15 A
