3ETL9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Mechanical Life	Actuator Material	Mounting Type	Actuator Orientation	Actuator Type	Outline [x]	Outline [y]	Illumination	Ingress Protection	Circuit	Contact Rating @ Voltage	Termination Style	Features	Operating Force	Switch Function	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical
MEC Switches 3ETL9-10.4	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	Through Hole	Top Actuated	Standard	10.1 mm	10.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	SPST-NO	0.05 A 24 VDC	PC Pin	Sealed - Flux Protection	300 gf	Off-Mom	10.4 mm	115 °C	-40 C

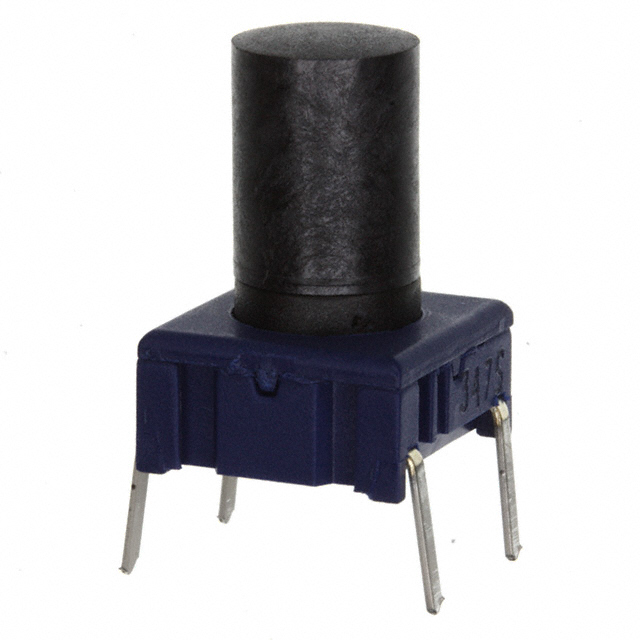

MEC Switches 3ETL9-15.0	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	Through Hole	Top Actuated	Standard	10.1 mm	10.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	SPST-NO	0.05 A 24 VDC	PC Pin	Sealed - Flux Protection	300 gf	Off-Mom		115 °C	-40 C	15 mm

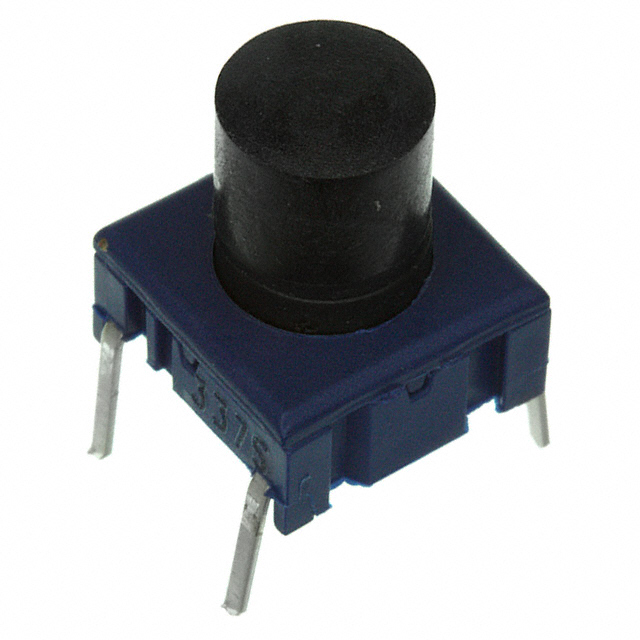

MEC Switches 3ETL9-12.0	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	Through Hole	Top Actuated	Standard	10.1 mm	10.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	SPST-NO	0.05 A 24 VDC	PC Pin	Sealed - Flux Protection	300 gf	Off-Mom	12 mm	115 °C	-40 C
MEC Switches 3ETL9-09.5	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	Through Hole	Top Actuated	Standard	10.1 mm	10.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	SPST-NO	0.05 A 24 VDC	PC Pin	Sealed - Flux Protection	300 gf	Off-Mom	9.5 mm	115 °C	-40 C

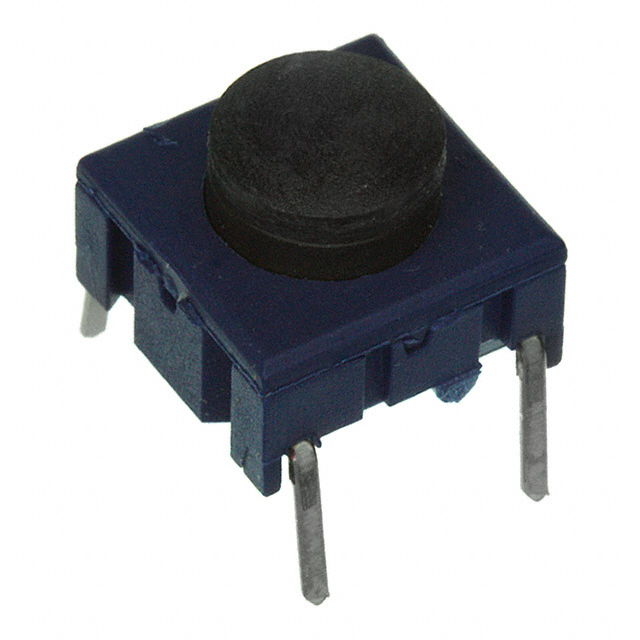

MEC Switches 3ETL9-08.0	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	Through Hole	Top Actuated	Standard	10.1 mm	10.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	SPST-NO	0.05 A 24 VDC	PC Pin	Sealed - Flux Protection	300 gf	Off-Mom		115 °C	-40 C	8 mm
