14 Series

Manufacturer: EAO

Catalog

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS LPB RND WBLK LENS

Part	For Use With/Related Products	Accessory Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Type	Circuit	Current Rating (Amps)	Mounting Type	Termination Style	Ingress Protection	Switch Function	Actuator Type	Voltage Rating - AC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange [z]	Approval Agency	Illumination	Features	Number of Positions	Termination	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type	Driver Circuitry	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Voltage Rating - DC
EAO EUS-14-433.036-1397A

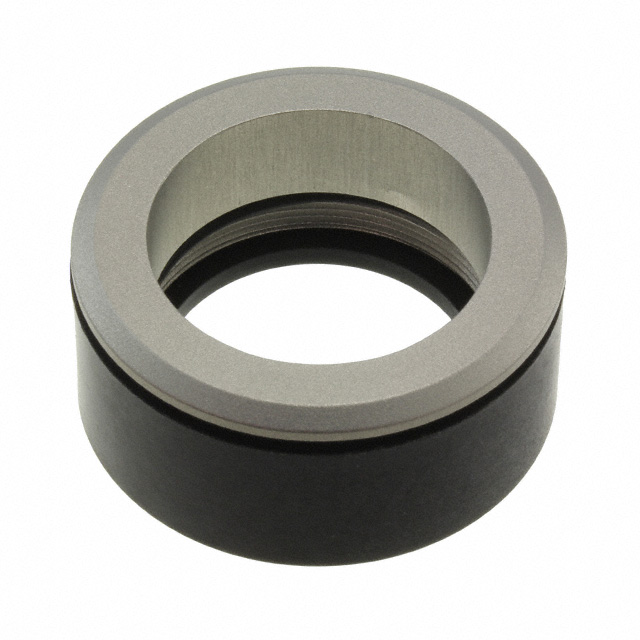

EAO 14-955.1	14 Series	Bezel
EAO 14-271.025			2000000 Cycles	22.3 mm	Standard	DPST-NO/NC	5 A	Panel Mount Front	Solder Lug	IP67 - Dust Tight Waterproof	Off-Mom On-Mom	Button Round	250 V	No Marking	55 °C	-25 °C
EAO EUS-14-131.022-1000A
EAO 14-503.0250			2000000 Cycles	22.3 mm	Standard	6PST-3NO/3NC	5 A	Panel Mount	Solder Lug	IP67 - Dust Tight Waterproof	Off-Mom On-Mom		250 V		55 °C	-25 °C	50.5 mm	CE CSA UL VDE	Non-Illuminated	Bezel - Round Black Knob	2
EAO EUS-14-131.025-1692A
EAO 14-133.025				22.3 mm	Standard	6PST-3NO/3NC	5 A	Panel Mount Front	Solder Lug	IP67 - Dust Tight Waterproof	Off-Mom On-Mom	Button Round	250 V	No Marking	55 °C	-25 °C

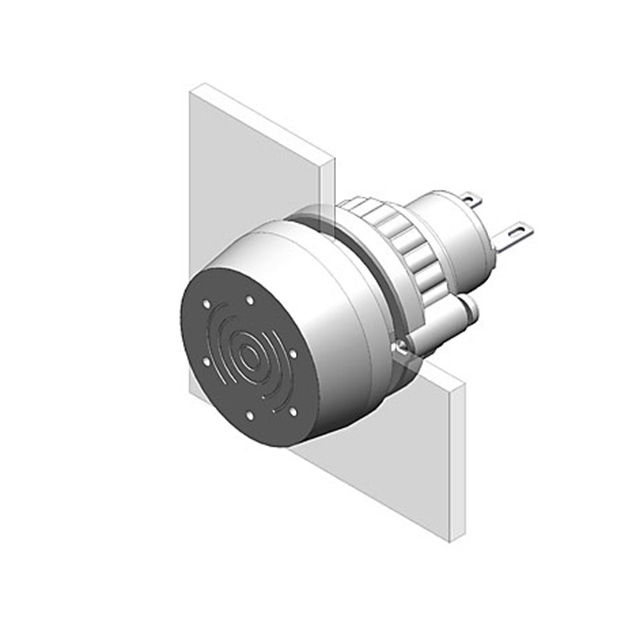

EAO 14-810.902								Through Hole		IP65 - Dust Tight Water Resistant								CE				Solder Tabs	Top	1.142 in	29 mm	DC	Indicator Internally Driven	1.929 "	49 mm
EAO 14-520.0360				22.3 mm	Standard	DPST-NO	100 mA	Panel Mount		IP67 - Dust Tight Waterproof	Off-On		42 V		55 °C	-25 °C			Non-Illuminated	Bezel - Round Black Knob	2									42 V
EAO EUS-14-131.022-1172L.22
