1969796 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

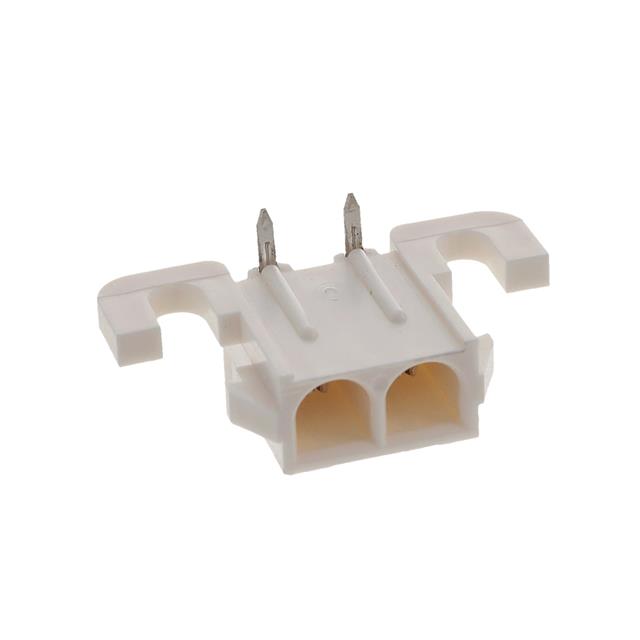

02P UMNL HDR ASSY R/A, PIN V0 GW
| Part | Style | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Contact Type | Fastening Type | Termination | Insulation Color | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Features | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Connector Type | Number of Positions Loaded | Mounting Type | Current Rating (Amps) | Insulation Height | Insulation Height | Contact Material | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | UL94 V-0 | 4.06 mm | 0.16 in | Male Pin | Locking Ramp | Solder | Natural | Tin | 6.35 mm | 0.25 in | Mounting Flange | 2 | 1 | -40 °C | 105 ░C | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Header | All | Through Hole Right Angle | 12 A | 9.14 mm | 0.36 in | Phosphor Bronze | Circular |
