21503 Series
Manufacturer: Pflitsch
Beta
⌘K

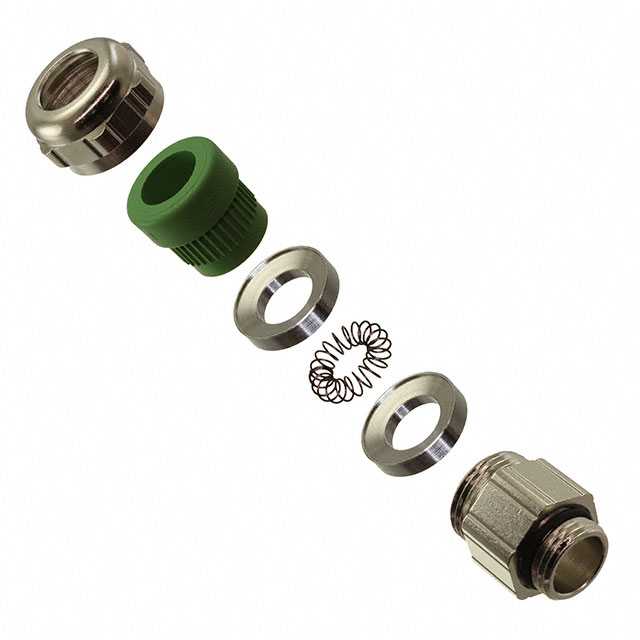

CABLE GLAND 6.86-10.41MM PG9
| Part | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) | Material | Operating Temperature [Min] | Operating Temperature [Max] | Panel Hole Size | Panel Hole Size | Ingress Protection | Outside Cable Diameter (Min) | Outside Cable Diameter (Min) [Min] | Type | Thread Length | Thread Length | Includes | Color | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 0.41 in | 10.41 mm | Brass Nickel Plated | -40 C | 300 °C | 15.2 mm | 0.6 in | IP68 - Dust Tight Waterproof NEMA 4X | 6.86 mm | 0.27 in | Cable Gland | 6.1 mm | 0.24 in | Sealing Ring | Silver | PG9 |
