50 Series

Catalog

COMMON MODE CHOKES / FILTERS 4.7 MH

Part	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Mounting Type	Inductance @ Frequency	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Filter Type
Murata Electronics 50475C	4.65 mm	0.183 in	85 °C	-40 C	2	Surface Mount	4700 µH	Horizontal 4 J-Lead	400 mA	700 mOhm	Power Line

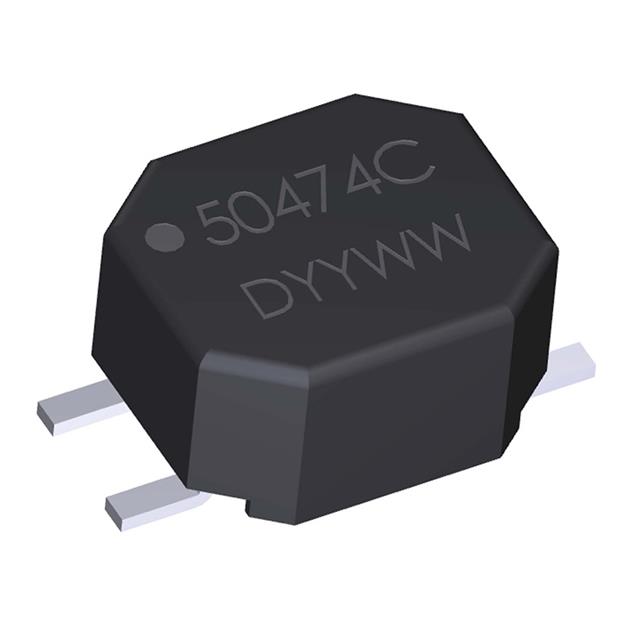

Murata Electronics 50474C	4.65 mm	0.183 in	85 °C	-40 C	2	Surface Mount	470 µH	Horizontal 4 J-Lead	700 mA	300 mOhm	Power Line
Murata Electronics 50105C	4.65 mm	0.183 in	85 °C	-40 C	2	Surface Mount	1 mH	Horizontal 4 J-Lead	700 mA	300 mOhm	Power Line
Murata Electronics 50225C	4.65 mm	0.183 in	85 °C	-40 C	2	Surface Mount	2.2 mH	Horizontal 4 J-Lead	500 mA	400 mOhm	Power Line
