322-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K

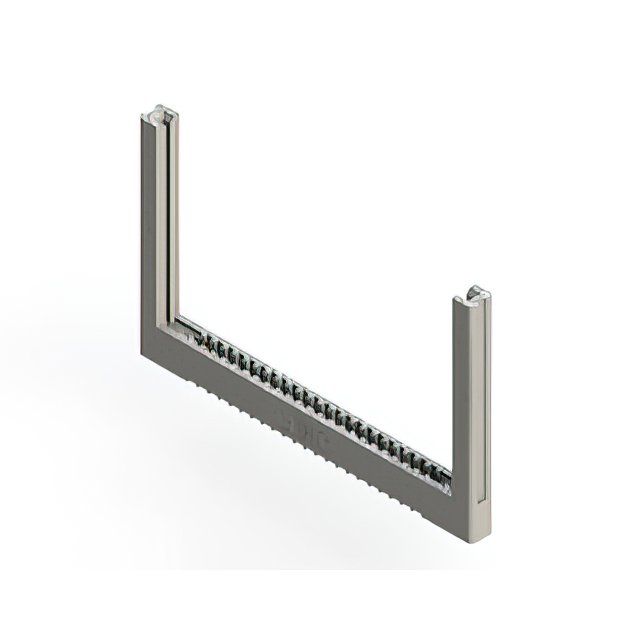

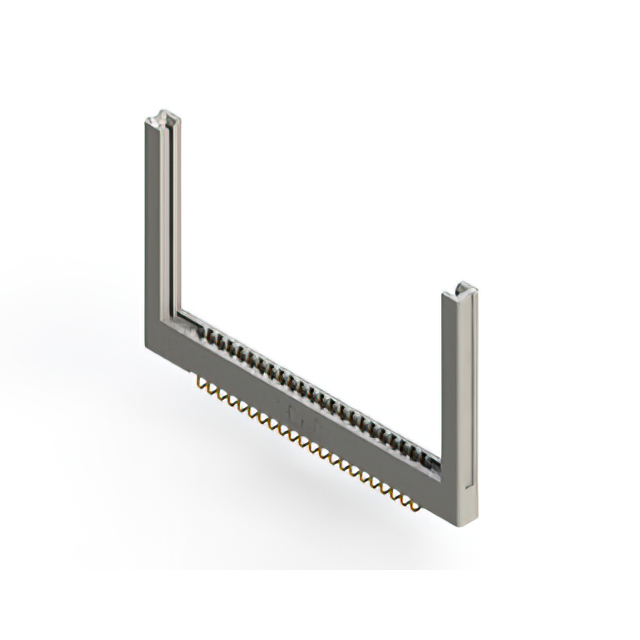

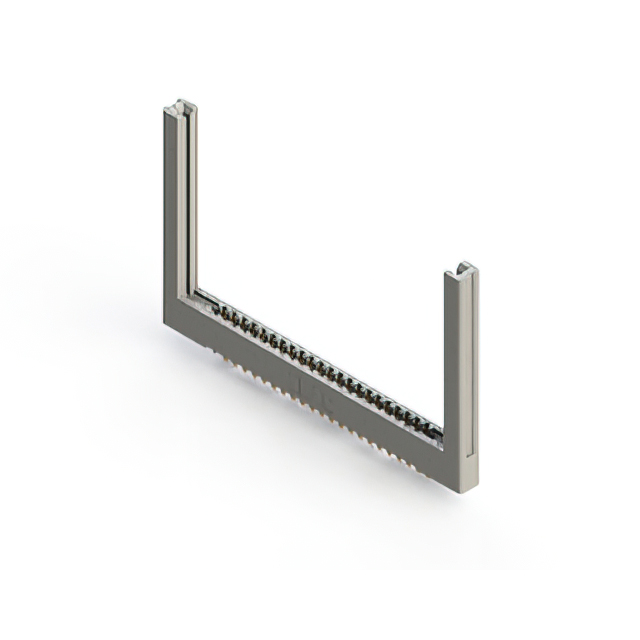

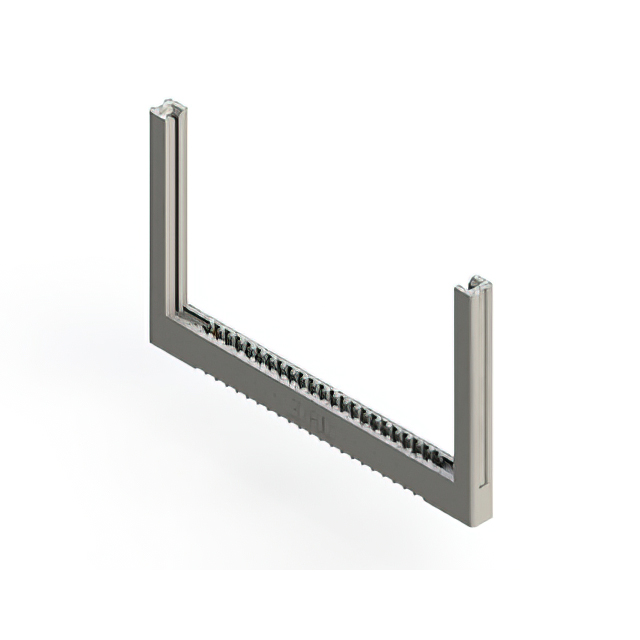

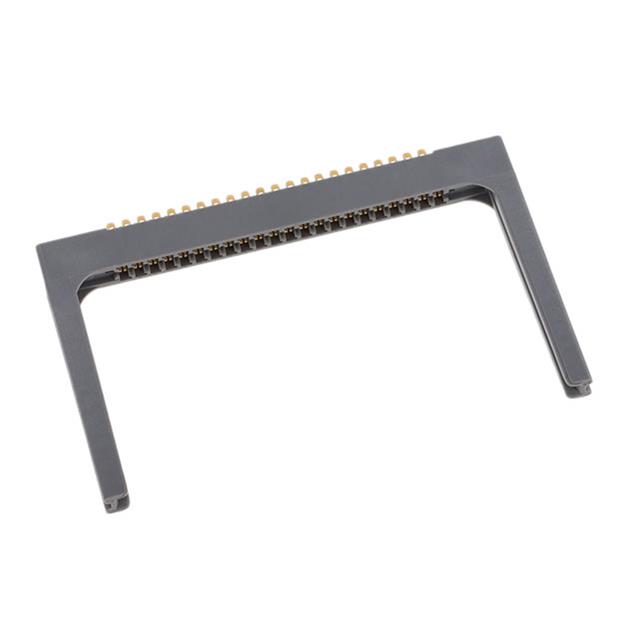

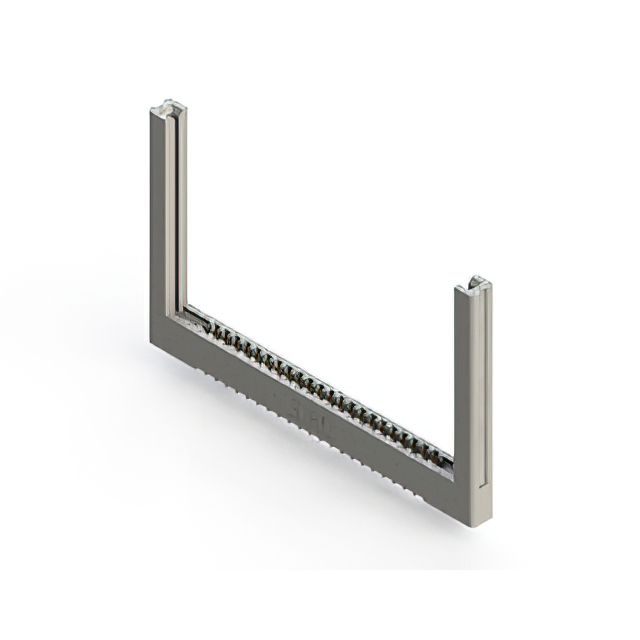

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
| Part | Termination Rows | Material - Insulation | Mounting Type | Flange Feature | Read Out | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Termination | Contact Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Number of Rows [custom] | Number of Positions/Bay/Row | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Color | Features | Number of Positions | Contact Material | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Right Angle Through Hole | Flush Mount M3 Threaded Insert Top Opening | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Semi Bellows | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 2 | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 44 | Copper Alloy | |||
EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Single | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Semi Bellows | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 22 | Copper Alloy | 1 | |||
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | Flush Mount Top Opening Unthreaded | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 2 | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 44 | Copper Alloy | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | Single | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 22 | Copper Alloy | 1 | 0.156 " | 3.96 mm | |
EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Single | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 22 | Copper Alloy | 1 | |||
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Semi Bellows | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 2 | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 44 | Copper Alloy | |||
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Single | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Semi Bellows | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 22 | Copper Alloy | 1 | |||
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | Flush Mount Top Opening Unthreaded | Single | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 22 | Copper Alloy | 1 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Semi Bellows | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 2 | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 44 | Copper Alloy | |||
EDAC Inc. | 1 | Polycarbonate (PC) Glass Filled | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Single | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Semi Bellows | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 22 | Female | -40 C | 105 ░C | Gray | Card Guides | 22 | Copper Alloy | 1 |
