XC6217 Series

Catalog

IC REG LINEAR 1.35V 200MA SSOT24

...

Part	PSRR	Protection Features	Mounting Type	Supplier Device Package	Package / Case	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Current - Output	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Output Configuration	Number of Regulators	Voltage Dropout (Max) [Max]	Voltage Dropout (Max)	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Output (Min/Fixed) [Min]
Torex Semiconductor Ltd XC6217C13ANR-G	70 db	Over Current	Surface Mount	SSOT-24	SC-82	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	1.35 V	6 V	Positive	1	0.41 V
Torex Semiconductor Ltd XC6217C22ANR-G	70 db	Over Current	Surface Mount	SSOT-24	SC-82	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	2.25 V	6 V	Positive	1	0.195 V
Torex Semiconductor Ltd XC6217C3327R-G	70 db	Over Current	Surface Mount	4-USPN	4-XDFN	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	3.3 V	6 V	Positive	1		0.14 V	1.2	0.9
Torex Semiconductor Ltd XC6217A32AMR-G	70 db	Over Current	Surface Mount	SOT-25	SC-74A SOT-753	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	3.25 V	6 V	Positive	1		0.14 V
Torex Semiconductor Ltd XC6217A382NR-G	70 db	Over Current	Surface Mount	SSOT-24	SC-82	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	3.8 V	6 V	Positive	1		0.14 V
Torex Semiconductor Ltd XC6217C19ANR-G	70 db	Over Current	Surface Mount	SSOT-24	SC-82	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	1.95 V	6 V	Positive	1	0.21 V
Torex Semiconductor Ltd XC6217C132MR-G	70 db	Over Current	Surface Mount	SOT-25	SC-74A SOT-753	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA		6 V	Positive	1	0.41 V				1.3 V

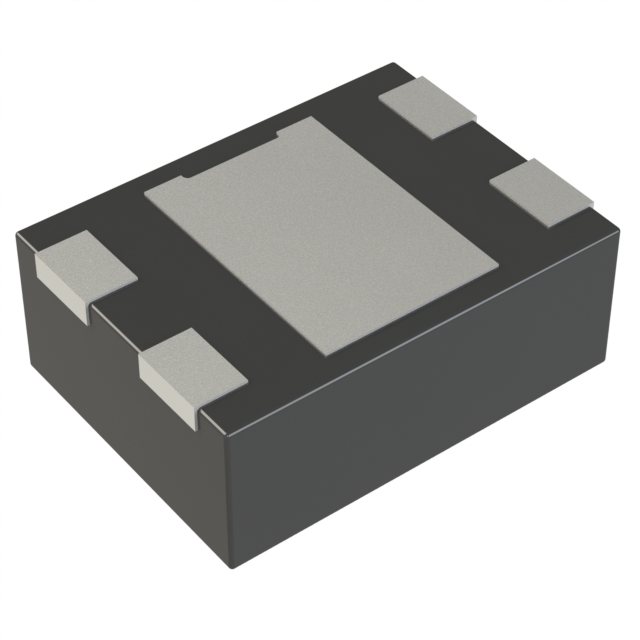

Torex Semiconductor Ltd XC6217B28AGR-G	70 db	Over Current	Surface Mount	USP-4D	4-UDFN Exposed Pad	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	2.85 V	6 V	Positive	1	0.17 V
Torex Semiconductor Ltd XC6217A09AMR-G	70 db	Over Current	Surface Mount	SOT-25	SC-74A SOT-753	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA	0.95 V	6 V	Positive	1		0.75 V
Torex Semiconductor Ltd XC6217A34A7R-G	70 db	Over Current	Surface Mount	4-USPN	4-XDFN	Enable	85 C	-40 ¯C	50 µA	0.2 A	8 ÁA		6 V	Positive	1		0.14 V	1.2	0.9	3.45 V
