73805WS Series
Manufacturer: Belden Inc.
Beta
⌘K

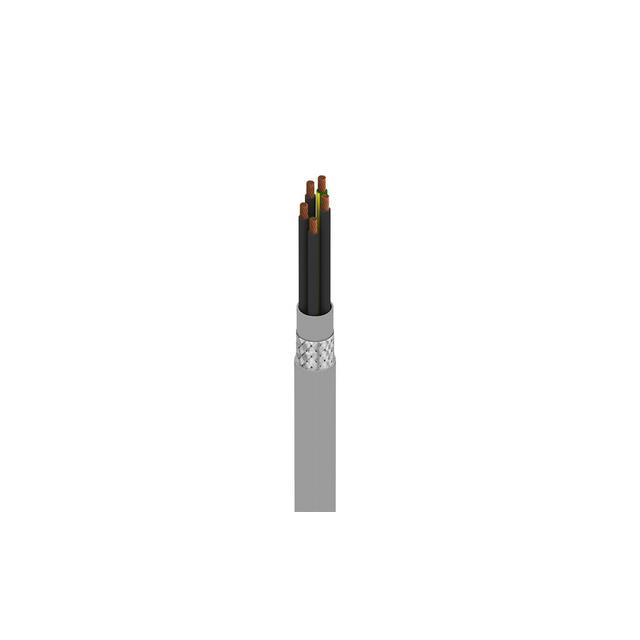

CABLE 5CON 18AWG GRAY SHLD FEET
| Part | Shield Material | Spool Size [x] | Spool Size [x] | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Conductor Material | Features | Number of Conductors | Wire Gauge | Voltage | Jacket Color | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 304.8 m | 1000 ft | 85 % | 0.414 " | 10.52 mm | Poly-Vinyl Chloride (PVC) | Enter Number of Feet in Order Quantity | Copper Bare | Oil Resistant | 5 | 18 AWG | 600 V | Gray | Braid | 16 | 30 AWG | -5 °C | 90 °C | Poly-Vinyl Chloride (PVC) | UL Style 2587 | 0.035 in | 0.889 mm | Multi-Conductor | ||
 Belden Inc. | Copper Tinned | 85 % | 0.414 " | 10.52 mm | Poly-Vinyl Chloride (PVC) | Copper Bare | Oil Resistant | 5 | 18 AWG | 600 V | Gray | Braid | 16 | 30 AWG | -5 °C | 90 °C | Poly-Vinyl Chloride (PVC) | UL Style 2587 | 0.035 in | 0.889 mm | Multi-Conductor | 100 ft | 30.5 m |
