LM5019 Series

Catalog

BOARD EVAL FOR LM5019

Part	Voltage - Output	Current - Output	Outputs and Type	Outputs and Type	Utilized IC / Part	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Main Purpose	Board Type	Regulator Topology	Voltage - Input (Min) [Min]	Package / Case	Frequency - Switching	Supplier Device Package	Mounting Type	Function	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Output Type	Number of Outputs	Voltage - Input (Max) [Max]	Topology	Voltage - Output (Min/Fixed)	Package / Case [y]	Package / Case [x]	Voltage - Output [Min]	Voltage - Output [Max]

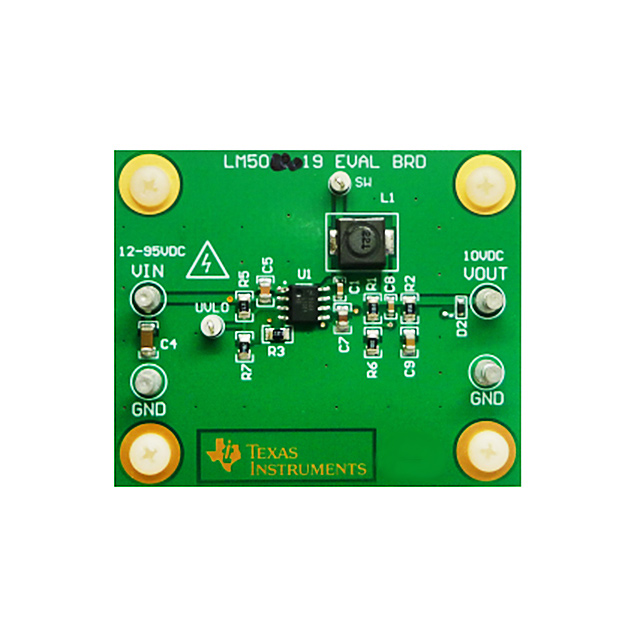

Texas Instruments LM5019EVAL/NOPB	10 V	100 mA	Non-Isolated	1	LM5019	440 kHz	100 V	12.5 V	Board(s)	DC/DC Step Down	Fully Populated	Buck
Texas Instruments LM5019SD/NOPB		100 mA											7.5 V	8-WDFN Exposed Pad	Adj to 1MHz	8-WSON (4x4)	Surface Mount	Step-Down	90 V	-40 °C	125 ¯C	Positive	Adjustable	1	100 V	Buck	1.225 V
Texas Instruments LM5019MR/NOPB		100 mA											7.5 V	8-PowerSOIC	Adj to 1MHz	8-SO PowerPad	Surface Mount	Step-Down	90 V	-40 °C	125 ¯C	Positive	Adjustable	1	100 V	Buck	1.225 V	3.9 mm	0.154 in
Texas Instruments LM5019MRX/NOPB		100 mA											7.5 V	8-PowerSOIC	Adj to 1MHz	8-SO PowerPad	Surface Mount	Step-Down	90 V	-40 °C	125 ¯C	Positive	Adjustable	1	100 V	Buck	1.225 V	3.9 mm	0.154 in
Texas Instruments LM5019ISOEVAL/NOPB		100 mA		1 1	LM5019	750 kHz	100 V	20 VDC	Board(s)	DC/DC Step Down	Fully Populated	Buck																		9.5 V	10 V
