ADVANCE Series

Catalog

HEAVY DUTY POWER CONNECTORS HC-B-BF

Part	Accessory Type	For Use With/Related Products	Ingress Protection	Size	Housing Material	Housing Color	Lock Location	Features	Connector Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]

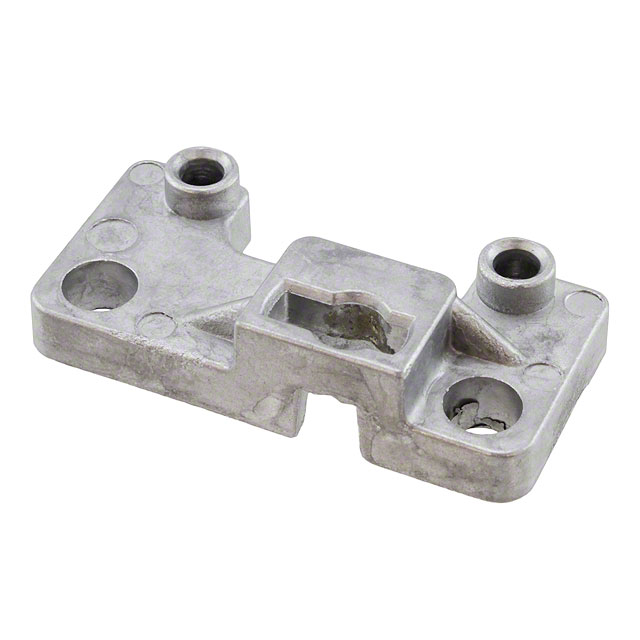

Phoenix Contact 1604641	Mounting Flange	Heavycon-Advance® Hoods w/Bayonet Locks

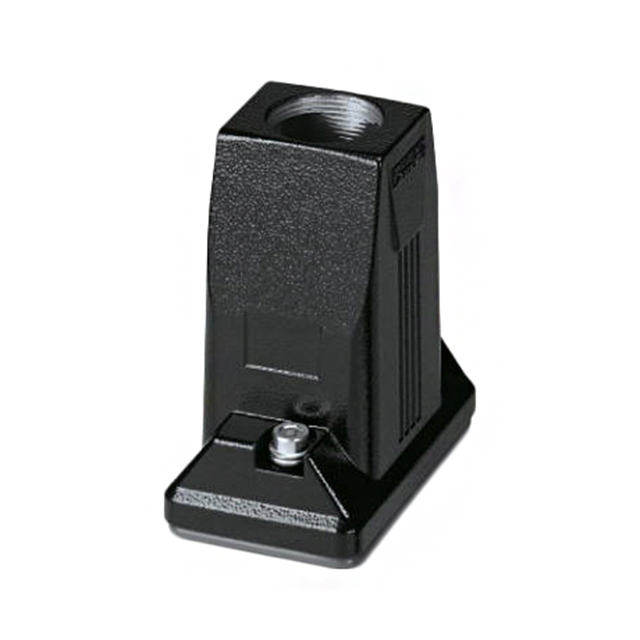

Phoenix Contact 1420901			IP66 IP68 IP69K	B6	Aluminum Die Cast	Black	Screw Locks on Hood	Salt Water Resistant	Hood	Top Entry	125 °C	-40 C	Powder Coated	M32

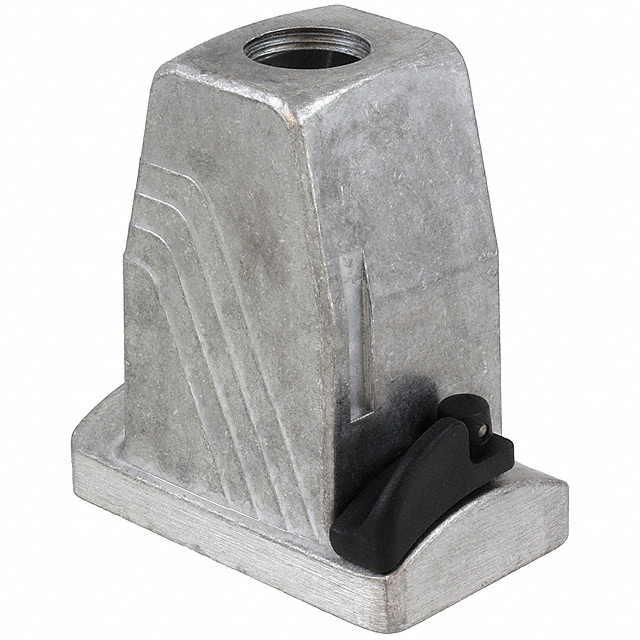

Phoenix Contact 1460363			IP65 IP67	B6	Aluminum Die Cast		Bayonet Lock on Hood	Salt Water Resistant	Hood	Top Entry	125 °C	-40 C		M25	92 mm	100 mm	3.622 "	2.244 "	57 mm	3.937 "
Phoenix Contact 1604175			IP65 IP67	B6	Aluminum Die Cast	Gray	Bayonet Lock on Hood		Hood	Top Entry	125 °C	-40 C	Powder Coated	M20	92 mm	100 mm	3.622 "	2.244 "	57 mm	3.937 "
Phoenix Contact 1604230			IP65 IP67	B6	Aluminum Die Cast	Gray	Bayonet Lock on Hood		Hood	Top Entry	125 °C	-40 C	Powder Coated	M25	92 mm	100 mm	3.622 "	2.244 "	57 mm	3.937 "
Phoenix Contact 1420918			IP66 IP68 IP69K	B16	Aluminum Die Cast	Black	Screw Locks on Hood	Salt Water Resistant	Hood	Top Entry	125 °C	-40 C	Powder Coated	M32	125.4 mm	93.7 mm	4.937 "	2.244 "	57 mm	3.689 "
Phoenix Contact 1604269			IP65 IP67	B6	Aluminum Die Cast	Gray	Bayonet Lock on Hood		Hood	Side Entry	125 °C	-40 C	Powder Coated	M25	92 mm	100 mm	3.622 "	2.244 "	57 mm	3.937 "
Phoenix Contact 1580498				B16	Aluminum Die Cast		Screw Locks on Hood	Salt Water Resistant	Hood	Top Entry Dual	125 °C	-40 C		M20 M25	126 mm	100 mm	4.961 "	2.244 "	57 mm	3.937 "
Phoenix Contact 1414976			IP66 IP68 IP69K	B16	Aluminum Die Cast		Screw Locks on Hood	Salt Water Resistant	Hood	Side Entry	125 °C	-40 C		M25	125.4 mm	74 mm	4.937 "	2.244 "	57 mm	2.913 in
Phoenix Contact 1420053			IP66 IP68 IP69K	B16	Aluminum Die Cast	Gray	Screw Locks on Hood	Salt Water Resistant	Hood	Bottom Entry	125 °C	-40 C		M6	125.4 mm	74 mm	4.937 "	2.244 "	57 mm	2.913 in
