2355-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

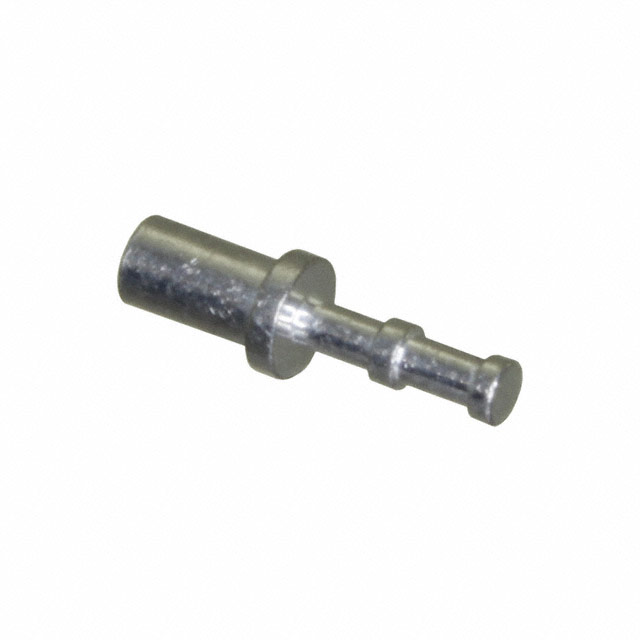

TERM TURRET SNG
| Part | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Board [x] | Length - Above Board [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Terminal Type | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Number of Turrets | Board Thickness | Board Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Contact Material | Insulation | Staking Side ID | Staking Side ID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 2.92 mm | 0.115 in | 4.85 mm | 0.191 in | 2.39 mm | 0.094 in | Tin | 200 Áin | 5.08 Ám | 7.77 mm | 0.306 in | Single End | 1.27 mm | 0.05 in | Double | 0.094 in | 2.39 mm | 1.85 mm | 0.073 in | Swage | Brass Alloy | Non-Insulated | 1.17 mm | 0.046 in |
Mill-Max Manufacturing Corp. | Through Hole | 2.92 mm | 0.115 in | 4.85 mm | 0.191 in | 2.39 mm | 0.094 in | Tin-Lead | 200 Áin | 5.08 Ám | 7.77 mm | 0.306 in | Single End | 1.27 mm | 0.05 in | Double | 0.094 in | 2.39 mm | 1.85 mm | 0.073 in | Swage | Brass Alloy | Non-Insulated | 1.17 mm | 0.046 in |
 Mill-Max Manufacturing Corp. | Through Hole | 2.92 mm | 0.115 in | 4.85 mm | 0.191 in | 2.39 mm | 0.094 in | Tin-Lead | 300 µin | 7.62 µm | 7.77 mm | 0.306 in | Single End | 1.27 mm | 0.05 in | Double | 0.094 in | 2.39 mm | 1.85 mm | 0.073 in | Swage | Brass Alloy | Non-Insulated | 1.17 mm | 0.046 in |
