219637 Series

Nano-Fit BMI Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 12 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray

Manufacturer: Molex

Catalog

Nano-Fit BMI Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 12 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Termination	Number of Positions	Voltage Rating	Connector Type	Features	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Number of Rows [custom]	Contact Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Color	Contact Shape	Style	Shrouding	Contact Finish - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type
Molex 2196372310	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	10	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Natural	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.76 Ám	30 Áin	Right Angle Through Hole
Molex 2196371408	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	8	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.76 Ám	30 Áin	Right Angle Through Hole
Molex 2196371310	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	10	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.76 Ám	30 Áin	Right Angle Through Hole

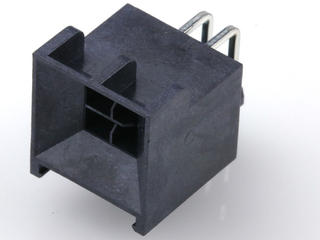

Molex 2196371204	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	4	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.38 µm	15 µin	Right Angle Through Hole
Molex 2196372206	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	6	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Natural	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.38 µm	15 µin	Right Angle Through Hole
Molex 2196371404	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	4	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.76 Ám	30 Áin	Right Angle Through Hole
Molex 2196371108	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	8	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall		All	2.5 mm	0.098 in	0.479 in	12.17 mm			Right Angle Through Hole
Molex 2196372110	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	10	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Natural	Square	Board to Cable/Wire	Shrouded - 4 Wall		All	2.5 mm	0.098 in	0.479 in	12.17 mm			Right Angle Through Hole
Molex 2196372104	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	4	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Natural	Square	Board to Cable/Wire	Shrouded - 4 Wall		All	2.5 mm	0.098 in	0.479 in	12.17 mm			Right Angle Through Hole
Molex 2196372406	Liquid Crystal Polymer (LCP)	2.5 mm	0.098 in	Solder	6	250 VAC	Header	Board Guide	Varies by Wire Gauge	0.126 "	3.2 mm	Male Pin	2	Brass	Tin	125 °C	-40 C	Push-Pull	Natural	Square	Board to Cable/Wire	Shrouded - 4 Wall	Gold	All	2.5 mm	0.098 in	0.479 in	12.17 mm	0.76 Ám	30 Áin	Right Angle Through Hole
