AMPSEAL Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

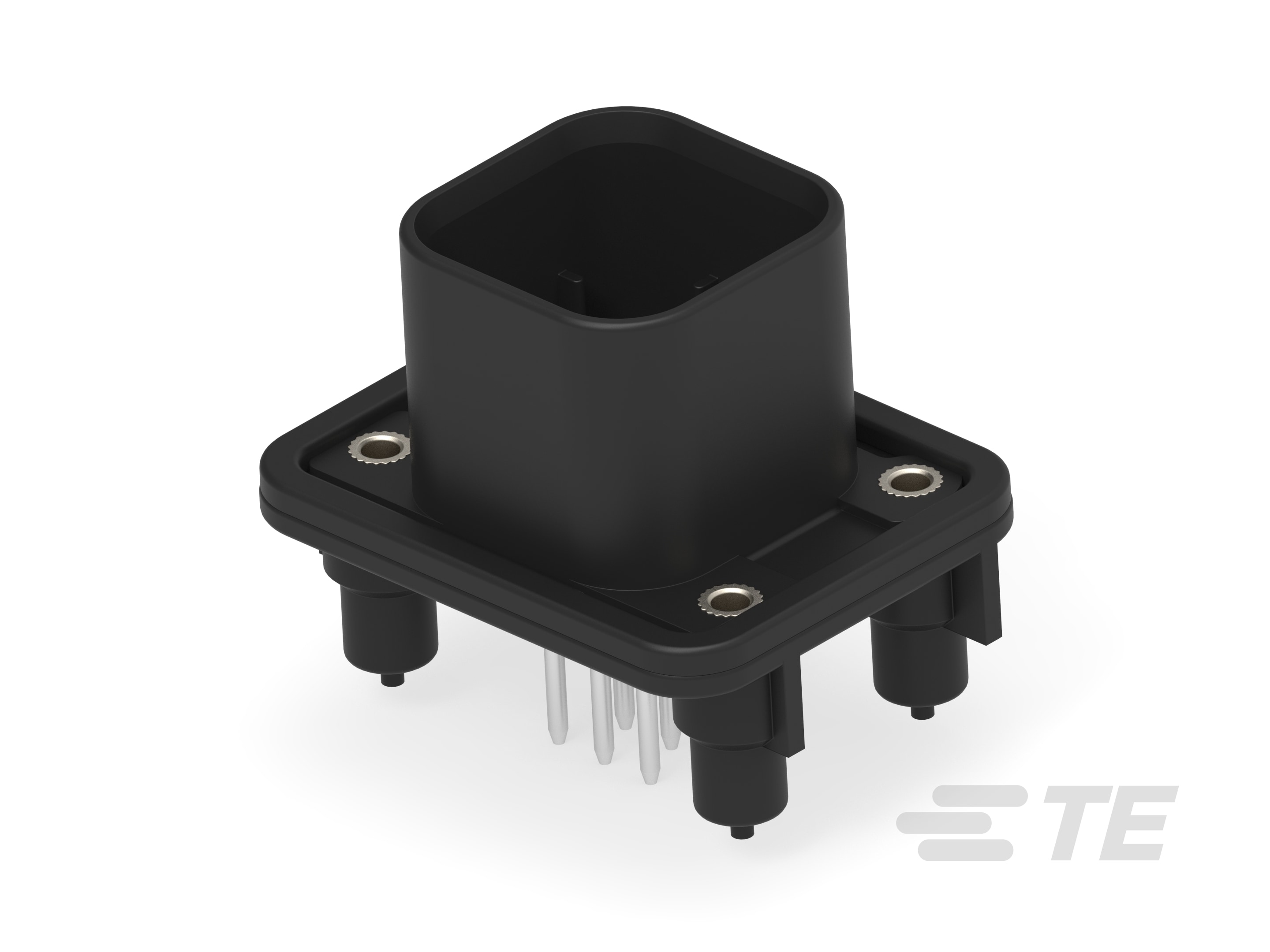

8POS,PIN DIA 1.3,HDR ASSY,180DEG
| Part | Contact Shape | Contact Material | Style | Insulation Color | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Insulation Material | Voltage Rating | Fastening Type | Features | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Type | Shrouding | Number of Positions Loaded | Number of Rows [custom] | Termination | Row Spacing - Mating | Row Spacing - Mating | Pitch | Pitch | Contact Termination | Color | Note | Row Spacing | Row Spacing | Current Rating (Amps) | Contact Finish - Mating | Applications | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Circular | Brass | Board to Cable/Wire | Black | Tin | -40 C | 105 ░C | Header | 8 | Polybutylene Terephthalate (PBT) Glass Filled | 159 VDC 250 VAC | Locking Ramp | Mounting Flange | 8 A | 4 mm | 0.157 in | Panel Mount Through Hole | Male Pin | Shrouded - 4 Wall | All | 3 | Solder | 4 mm | 0.157 " | ||||||||||||||||
 TE Connectivity AMP Connectors | -40 C | 105 ░C | Plug | 23 | Polybutylene Terephthalate (PBT) | Latch Holder | Connector Position Assurance (CPA) Terminal Position Assurance (TPA) | Free Hanging (In-Line) | Female Socket | 3 | 4 mm | 0.157 in | Crimp | Gray | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Plug | 35 | Polybutylene Terephthalate (PBT) | Latch Lock | Free Hanging (In-Line) | Female Socket | 3 | 4 mm | 0.157 in | Crimp | Contacts Not Included | 0.157 in | 4 mm | |||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Circular | Brass | Board to Cable/Wire | Gray | -40 C | 125 °C | Header | 35 | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | Locking Ramp | Mounting Flange Sealed | 4 mm | 0.157 in | Panel Mount Through Hole | Male Pin | Shrouded - 4 Wall | All | 3 | Solder | 4 mm | 0.157 " | Varies by Wire Gauge | Gold-Palladium | ||||||||||||||||
 TE Connectivity AMP Connectors | Circular | Brass | Board to Cable/Wire | Natural | -40 C | 125 °C | Header | 23 | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | Locking Ramp | Mounting Flange Sealed | 4 mm | 0.157 in | Panel Mount Through Hole | Male Pin | Shrouded - 4 Wall | All | 3 | Solder | 4 mm | 0.157 " | Varies by Wire Gauge | Gold-Palladium | Automotive Industrial | |||||||||||||||
 TE Connectivity AMP Connectors | Circular | Brass | Board to Cable/Wire | Black | Tin | -40 C | 105 ░C | Header | 8 | Polybutylene Terephthalate (PBT) Glass Filled | 159 VDC 250 VAC | Locking Ramp | Mounting Flange | 8 A | 4 mm | 0.157 in | Panel Mount Right Angle Through Hole | Male Pin | Shrouded - 4 Wall | All | 3 | Solder | 4 mm | 0.157 " | 1.264 in | 32.1 mm | 0.157 in | 4 mm | ||||||||||||
 TE Connectivity AMP Connectors | Circular | Brass | Board to Cable/Wire | Natural | -40 C | 105 ░C | Header | 35 | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | Locking Ramp | Board Guide Sealable | 4 mm | 0.157 in | Panel Mount Right Angle Through Hole | Male Pin | Shrouded - 4 Wall | All | 3 | Solder | 4 mm | 0.157 " | Varies by Wire Gauge | Automotive Industrial | ||||||||||||||||
 TE Connectivity AMP Connectors | 35 | Strain Relief | ||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Plug | 35 | Polybutylene Terephthalate (PBT) | Latch Lock | Free Hanging (In-Line) | Female Socket | 3 | 4 mm | 0.157 in | Crimp | Black | Contacts Not Included | 0.157 in | 4 mm | ||||||||||||||||||||||||||

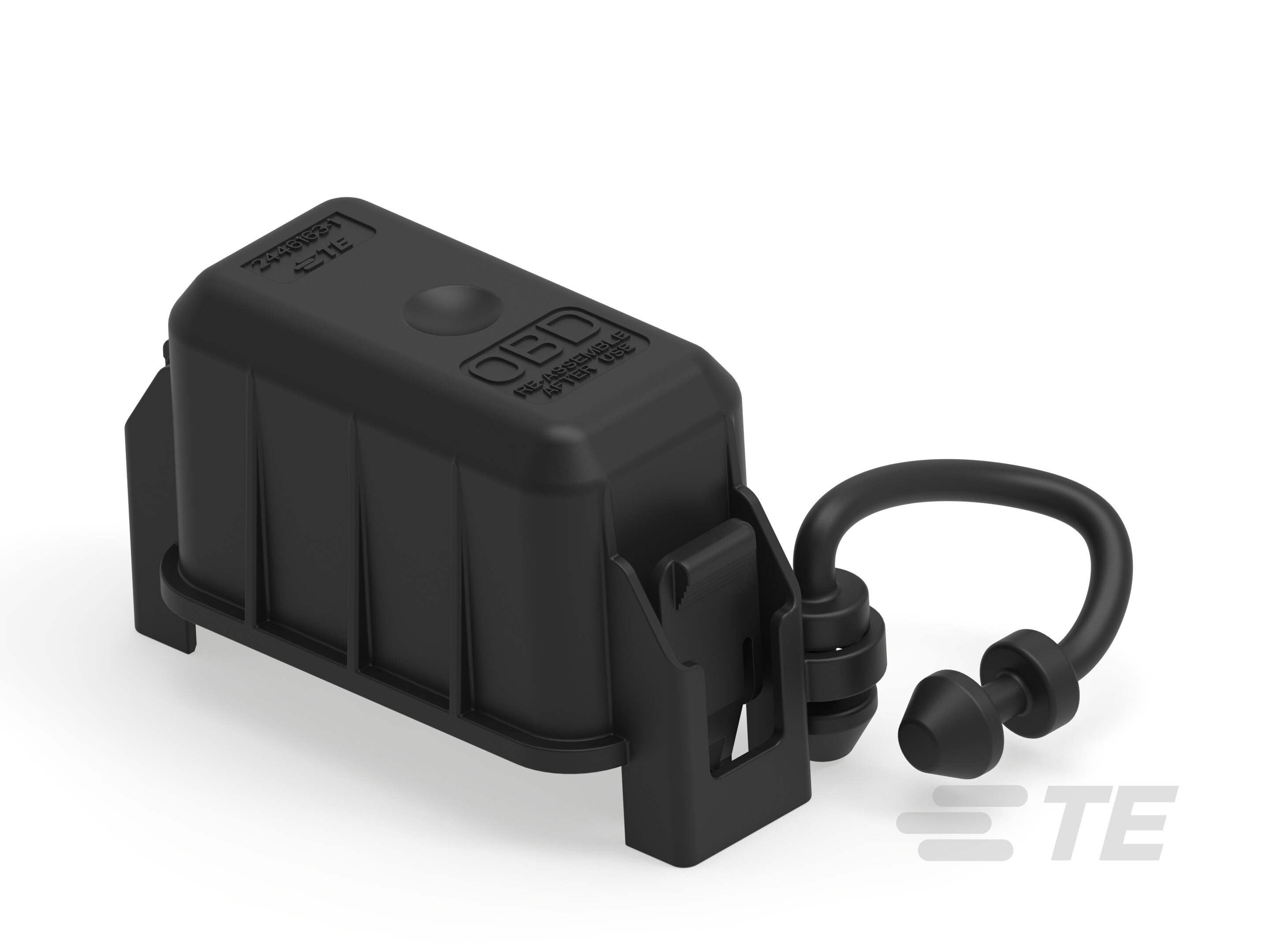

 TE Connectivity AMP Connectors | Sealed | Cap (Cover) | AMPSEAL Connectors |
