SCBSM Series

Catalog

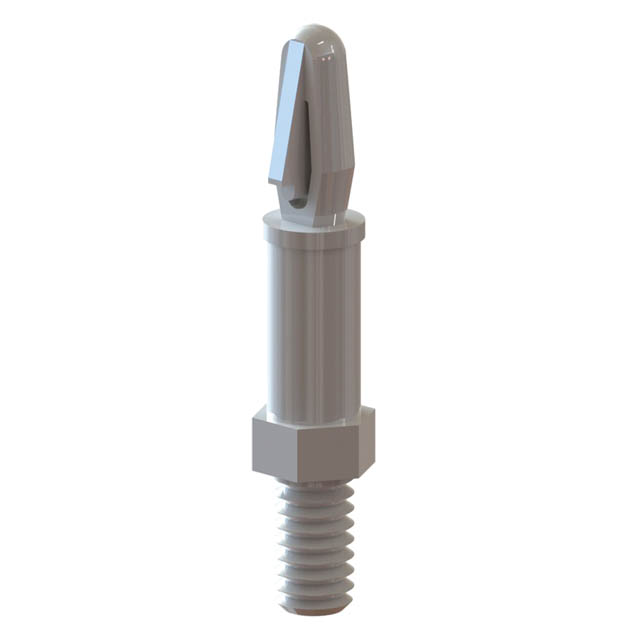

BRD SPT SNAP LOCK THR STUD 3/16"

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Material	Holding Type	Features	Mounting Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]
Essentra Components SCBSM-632-3-01	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Nylon	Snap Lock	6-32 Thread	Threaded Stud	1/4	0.25 in	6.35 mm	0.1875 in	0.188 in
Essentra Components SCBSM-632-6-01	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Nylon	Snap Lock	6-32 Thread	Threaded Stud	1/4	0.25 in	6.35 mm	9.53 mm	0.375 in	0.375 "
Essentra Components SCBSM-632-4-01	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Nylon	Snap Lock	6-32 Thread	Threaded Stud	1/4	0.25 in	6.35 mm	0.25 in	6.35 mm		0.846 "	21.5 mm
