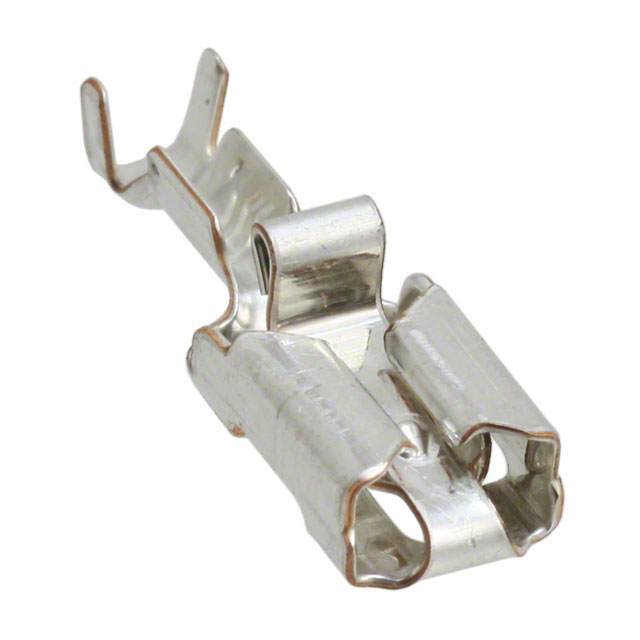

160773 Series

Catalog

CONN QC RCPT 15.5-20AWG 0.250

Part	Tab Thickness	Tab Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Gender	Tab Width	Tab Width	Insulation	Termination	Terminal Type	Contact Finish
TE Connectivity Raychem Cable Protection 160773-2	0.032 in	0.81 mm	0.091 in	3.3 mm	2.31 mm	0.13 "	20 AWG	16 AWG	Free Hanging (In-Line)	0.902 in	22.91 mm	Phosphor Bronze	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Standard
TE Connectivity Raychem Cable Protection 160773-6	0.032 in	0.81 mm	0.091 in	3.3 mm	2.31 mm	0.13 "	20 AWG	16 AWG	Free Hanging (In-Line)	0.902 in	22.91 mm	Brass	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Standard	Tin
TE Connectivity Raychem Cable Protection 160773-7	0.032 in	0.81 mm	0.091 in	3.3 mm	2.31 mm	0.13 "	20 AWG	16 AWG	Free Hanging (In-Line)	0.902 in	22.91 mm	Phosphor Bronze	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Standard	Tin
TE Connectivity Raychem Cable Protection 160773-3	0.032 in	0.81 mm	0.091 in	3.3 mm	2.31 mm	0.13 "	20 AWG	16 AWG	Free Hanging (In-Line)	0.902 in	22.91 mm	Brass	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Standard	Tin
