CBSBT Series

Catalog

BRD SPT SNAP LOCK ADHESIVE 3/16"

Part	Support Panel Thickness [z]	Support Panel Thickness [z]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Holding Type	Material	Between Board Height	Between Board Height	Length - Overall	Between Board Height	Length - Overall
Essentra Components CBSBT-3-01A-RT	0.064 in	1.63 mm	2.54 mm	0.1 in	Adhesive	8.39 mm	0.33 "	Snap Lock	Nylon	0.1875 in	0.188 in

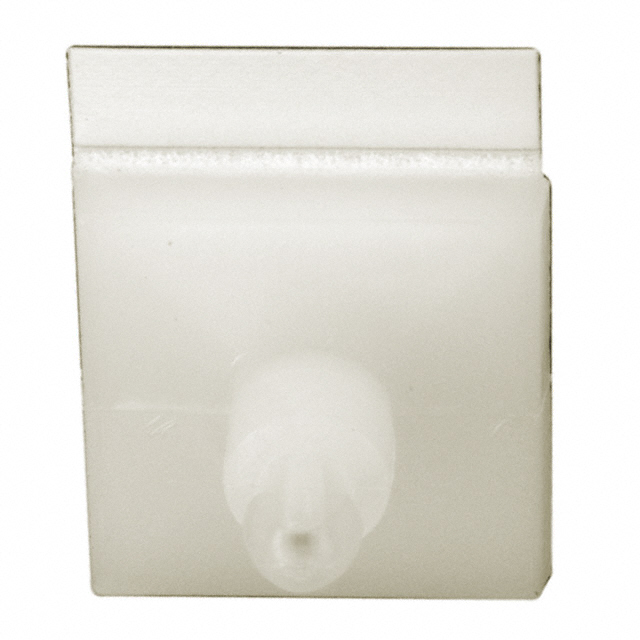

Essentra Components CBSBT-4-01A-RT	0.064 in	1.63 mm	2.54 mm	0.1 in	Adhesive		0.393 in	Snap Lock	Nylon	0.25 in	6.35 mm	9.98 mm
Essentra Components CBSBT-10-01A-RT	0.064 in	1.63 mm	2.54 mm	0.1 in	Adhesive		0.768 in	Snap Lock	Nylon	15.88 mm	0.625 in	19.5 mm	5 8

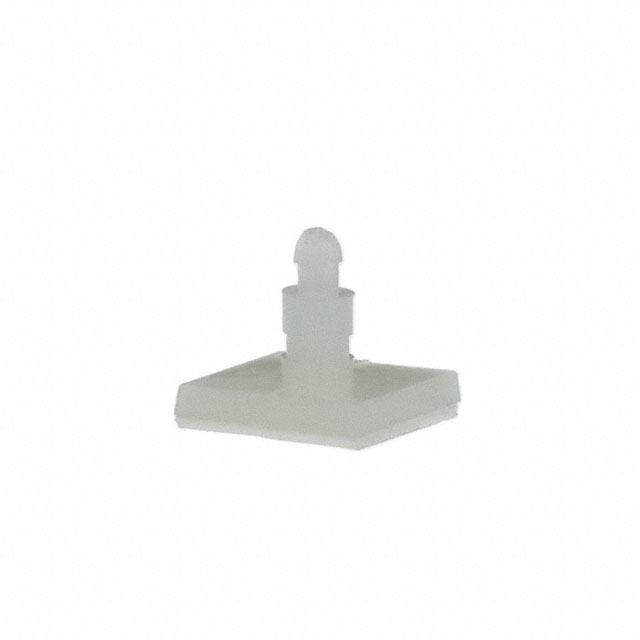

Essentra Components CBSBT-5-01A-RT	0.064 in	1.63 mm	2.54 mm	0.1 in	Adhesive	11.57 mm	0.456 in	Snap Lock	Nylon	7.95 mm	0.313 in		0.3125 in
Essentra Components CBSBT-6-01A-RT	0.064 in	1.63 mm	2.54 mm	0.1 in	Adhesive			Snap Lock	Nylon	9.53 mm	0.375 in	13.16 mm	0.375 "	0.518 in
