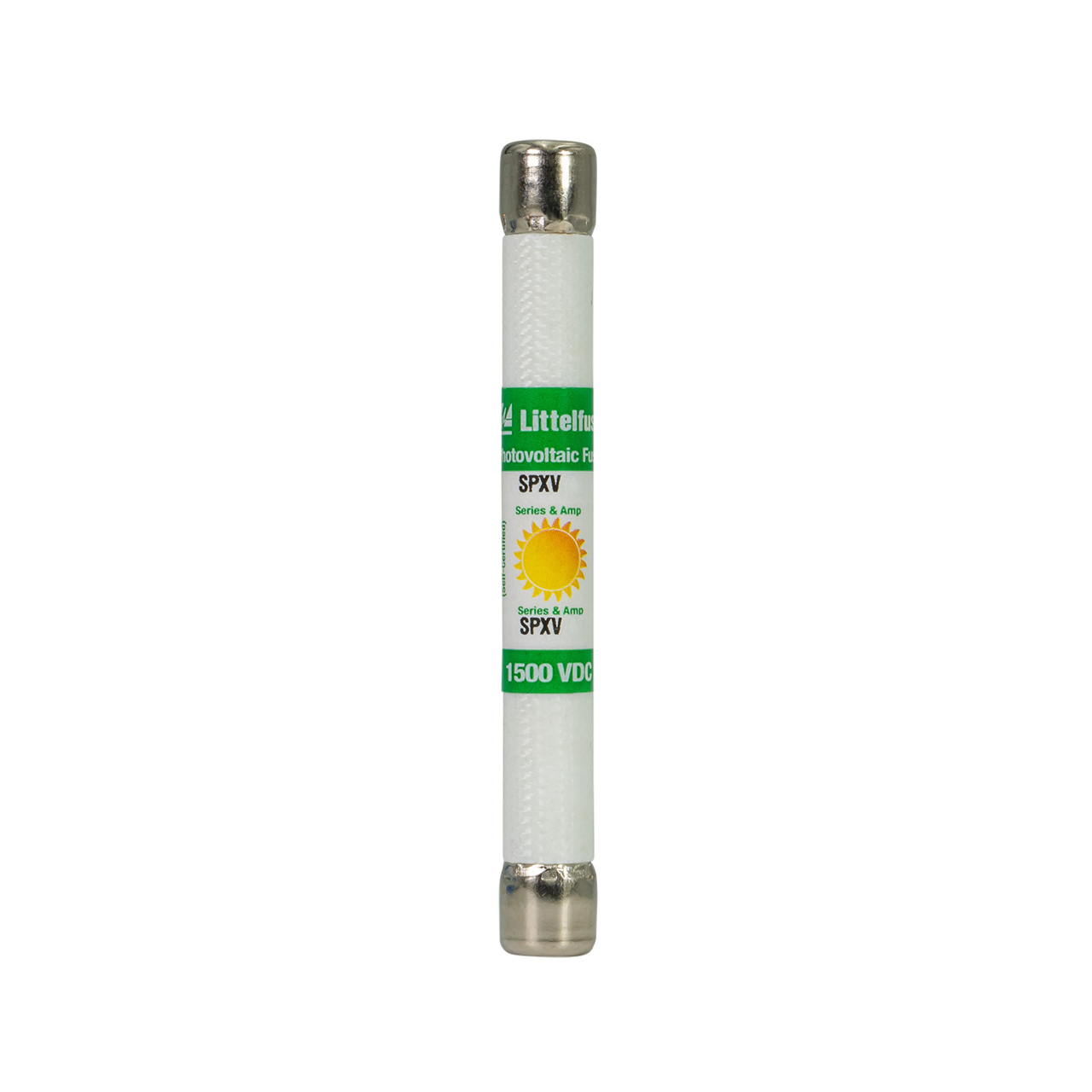

1500 VDC 15 AMP PHOTOVOLTAIC FUSE
Key Features
• UL 248-19 Listed
• 50 kA interrupting rating
Description
AI
The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.
Beta
⌘K
1500 VDC 15 AMP PHOTOVOLTAIC FUSE
1500 VDC 15 AMP PHOTOVOLTAIC FUSE
| Part | Breaking Capacity @ Rated Voltage | DC Cold Resistance | Package / Case | Mounting Type | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Melting I˛t | Fuse Type | Voltage Rating - DC | Approval Agency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 15 kA | 0.0131 Ohms | Cartridge Non-Standard | Requires Holder | 15 A | 0.406 in | 84.65 mm | 3.333 in | 10.3 mm | 299 | Cartridge | 1.5 kVDC | CE UR | Solar (Photovoltaic) |
 Littelfuse/Commercial Vehicle Products | 15 kA | 0.0131 Ohms | Cartridge Non-Standard | Requires Holder | 15 A | 0.406 in | 84.65 mm | 3.333 in | 10.3 mm | 299 | Cartridge | 1.5 kVDC | CE UR | Solar (Photovoltaic) |
