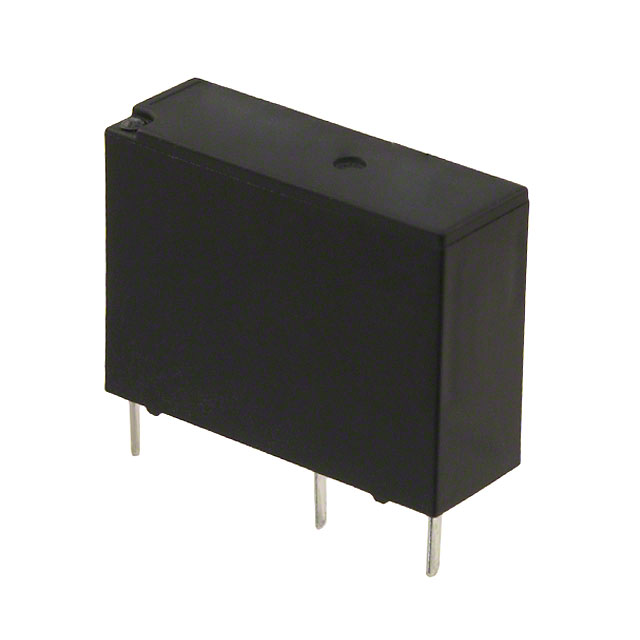

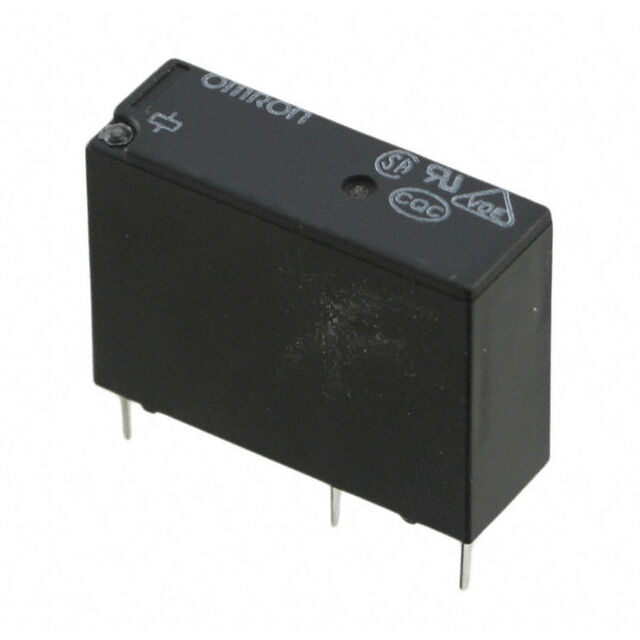

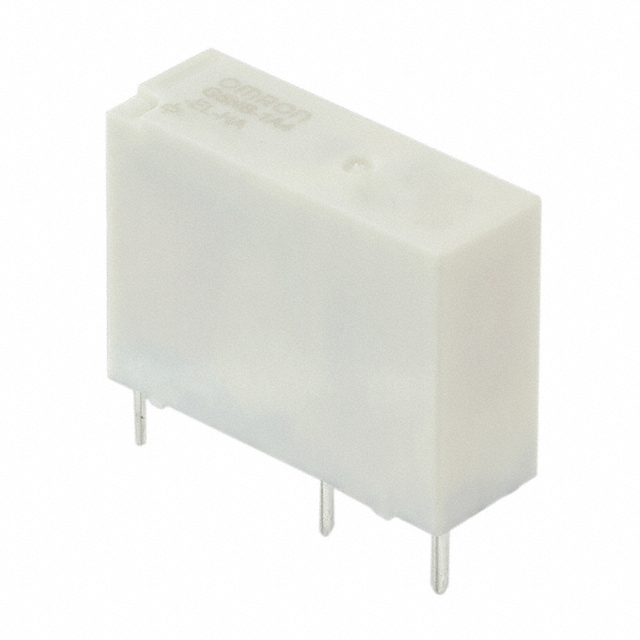

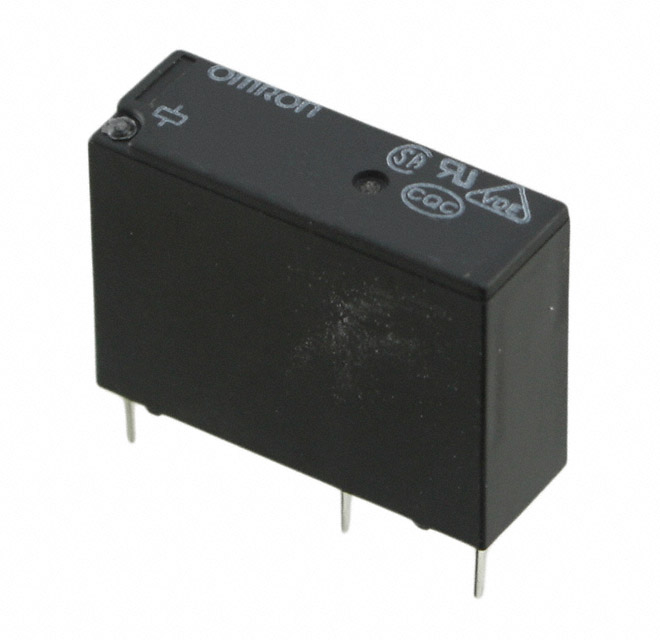

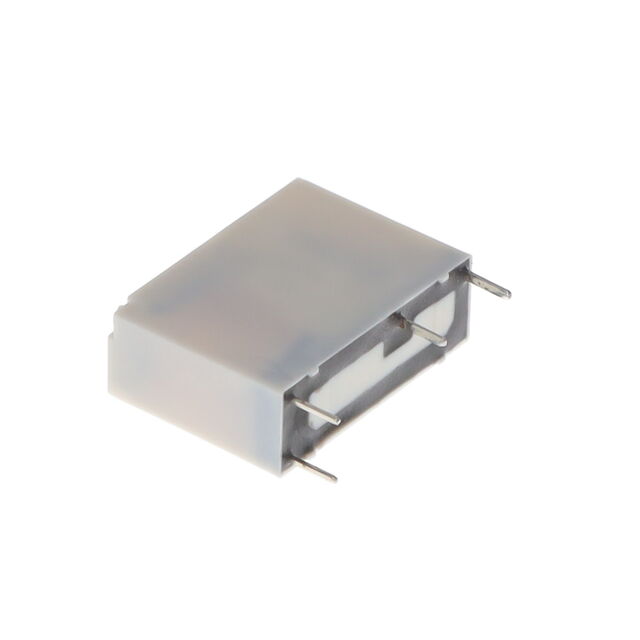

G5NB-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 24V
| Part | Release Time | Contact Material | Termination Style | Load - Max Switching | Switching Voltage [Max] | Approval Agency | Coil Voltage | Coil Current | Operate Time | Must Release Voltage | Contact Form | Relay Type | Mounting Type | Seal Rating | Contact Rating (Current) | Coil Type | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10 ms | Cadmium Free Silver Alloy | PC Pin | 150 W 1250 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 24 VDC | 8.3 mA | 10 ms | 2.4 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Flux Protection | 5 A | Non Latching | 18 VDC | 85 °C | -40 °C | 2.88 kOhms | |
 Omron Electronics Inc-EMC Div | 10 ms | Cadmium Free Silver Alloy | PC Pin | 210 W 1750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 24 VDC | 8.3 mA | 10 ms | 2.4 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Fully | 7 A | Non Latching | 18 VDC | 85 °C | -40 °C | 2.88 kOhms | |
 Omron Electronics Inc-EMC Div | 10 ms | PC Pin | 150 W 1250 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 5 VDC | 40 mA | 10 ms | 0.5 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Flux Protection | 5 A | Non Latching | 3.75 VDC | 70 °C | -40 °C | 125 Ohms | ||
Omron Electronics Inc-EMC Div | 10 ms | PC Pin | 90 W 750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 5 VDC | 40 mA | 10 ms | 0.5 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Fully | 3 A | Non Latching | 3.75 VDC | 70 °C | -40 °C | 125 Ohms | ||
 Omron Electronics Inc-EMC Div | 10 ms | Cadmium Free Silver Alloy | PC Pin | 90 W 750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 12 VDC | 16.7 mA | 10 ms | 1.2 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Flux Protection | 3 A | Non Latching | 9 VDC | 85 °C | -40 °C | 720 Ohms | Class F |
 Omron Electronics Inc-EMC Div | 10 ms | Cadmium Free Silver Alloy | PC Pin | 90 W 750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 5 VDC | 40 mA | 10 ms | 0.5 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Flux Protection | 3 A | Non Latching | 3.75 VDC | 85 °C | -40 °C | 125 Ohms | Class F |
 Omron Electronics Inc-EMC Div | 10 ms | Cadmium Free Silver Alloy | PC Pin | 90 W 750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 12 VDC | 16.7 mA | 10 ms | 1.2 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Fully | 3 A | Non Latching | 9 VDC | 85 °C | -40 °C | 720 Ohms | |
Omron Electronics Inc-EMC Div | 10 ms | Cadmium Free Silver Alloy | PC Pin | 150 W 1250 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 12 VDC | 16.7 mA | 10 ms | 1.2 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Fully | 5 A | Non Latching | 9 VDC | 85 °C | -40 °C | 720 Ohms | |
Omron Electronics Inc-EMC Div | 10 ms | PC Pin | 90 W 750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 9 VDC | 22.2 mA | 10 ms | 0.9 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Flux Protection | 3 A | Non Latching | 6.75 VDC | 70 °C | -40 °C | 405 Ohms | ||
Omron Electronics Inc-EMC Div | 10 ms | PC Pin | 90 W 750 VA | 30 VDC 250 VAC | CQC CSA UR VDE | 24 VDC | 8.3 mA | 10 ms | 2.4 VDC | SPST-NO (1 Form A) | General Purpose | Through Hole | Sealed - Flux Protection | 3 A | Non Latching | 18 VDC | 70 °C | -40 °C | 2.88 kOhms |
